396-039 Series
Manufacturer: EDAC Inc.
Beta
⌘K

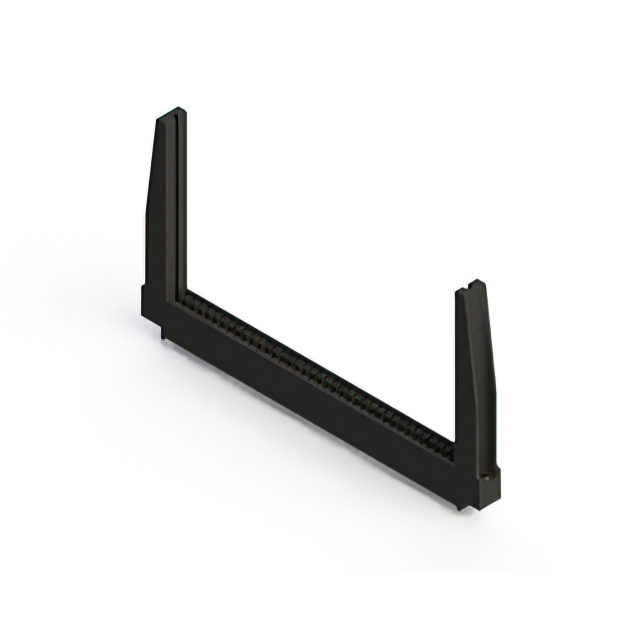

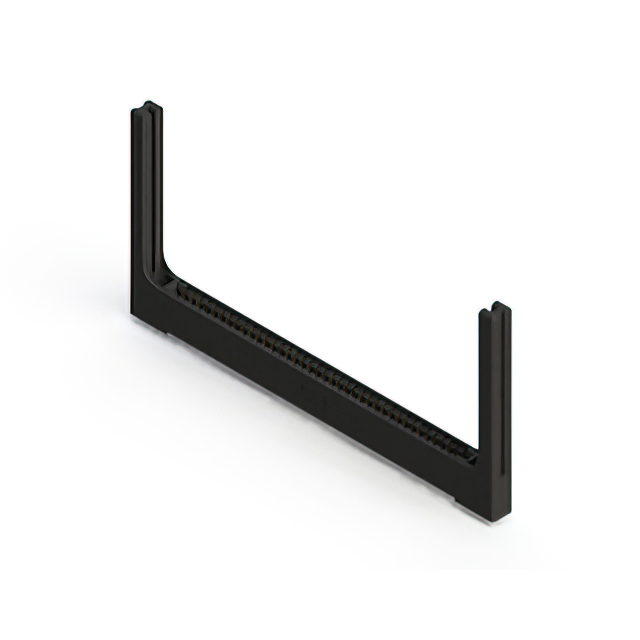

CONN EDGE SGL FMALE 39POS 0.125
| Part | Material - Insulation | Termination Rows | Number of Positions/Bay/Row | Card Type | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Gender | Color | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Pitch | Pitch | Contact Material | Contact Finish | Number of Rows | Card Thickness [Max] | Card Thickness [Min] | Number of Positions | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | 39 | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | 0.25 Ám | 10 Áin | Cantilever | Female | Black | Single | -40 C | 105 ░C | Solder | 3.18 mm | 0.125 in | Copper Alloy | Gold | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 39 | Through Hole | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 39 | Non Specified - Single Edge | Floating Bobbin Flush Mount | 0.25 Ám | 10 Áin | Cantilever | Female | Black | Single | -40 C | 105 ░C | Wire Wrap | 3.18 mm | 0.125 in | Copper Alloy | Gold | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 39 | Through Hole | 0.116 " | 2.95 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | 39 | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | 0.25 Ám | 10 Áin | Cantilever | Female | Black | Single | -40 C | 105 ░C | Solder | 3.18 mm | 0.125 in | Copper Alloy | Gold | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 39 | Through Hole | 0.156 " | 3.96 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | 39 | Non Specified - Single Edge | M3 Threaded Insert Top Mount Opening | 0.25 Ám | 10 Áin | Cantilever | Female | Black | Single | -40 C | 105 ░C | Solder Wire Wrap | 3.18 mm | 0.125 in | Copper Alloy | Gold | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 39 | Right Angle Through Hole | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 39 | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Cantilever | Female | Black | Single | -40 C | 105 ░C | Solder Wire Wrap | 3.18 mm | 0.125 in | Copper Alloy | Gold | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 39 | Right Angle Through Hole | 0.156 " | 3.96 mm | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 39 | Non Specified - Single Edge | Flush Mount M3 Threaded Insert Top Opening | 0.25 Ám | 10 Áin | Cantilever | Female | Black | Single | -40 C | 105 ░C | Solder | 3.18 mm | 0.125 in | Copper Alloy | Gold | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 39 | Through Hole | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 39 | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Cantilever | Female | Black | Single | -40 C | 105 ░C | Solder | 3.18 mm | 0.125 in | Copper Alloy | Gold | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 39 | Through Hole | 0.128 " | 3.25 mm | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 39 | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Cantilever | Female | Black | Single | -40 C | 105 ░C | Solder | 3.18 mm | 0.125 in | Copper Alloy | Gold | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 39 | Through Hole | 0.128 " | 3.25 mm | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 39 | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | 0.25 Ám | 10 Áin | Cantilever | Female | Black | Single | -40 C | 105 ░C | Solder | 3.18 mm | 0.125 in | Copper Alloy | Gold | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 39 | Through Hole | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 39 | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | 0.25 Ám | 10 Áin | Cantilever | Female | Black | Single | -40 C | 105 ░C | Solder | 3.18 mm | 0.125 in | Copper Alloy | Gold | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 39 | Through Hole | 0.128 " | 3.25 mm |
