SK12BG Series
Manufacturer: NKK Switches
Beta
⌘K
KEYLOCK SWITCH, ON-NONE-ON, SPDT, 2 POSITION, SOLDER, 3 A
| Part | Electrical Life | Mechanical Life | Current Rating (Amps) | Mounting Type | Number of Positions | Angle of Throw | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Key Removable Positions | Switch Function | Voltage Rating - DC | Voltage Rating - AC | Contact Material | Termination Style | Contact Timing | Contact Finish | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

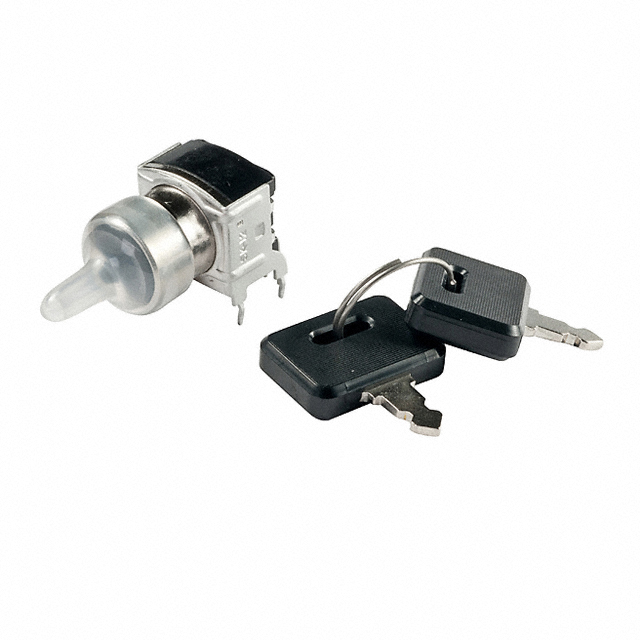

 NKK Switches | 10000 Cycles | 30000 Steps | 0.4 VA | Right Angle Through Hole | 2 | 90 ° | SPDT | -25 °C | 70 °C | Flat Key | 1 | On-On | 28 V | 28 V | Beryllium Copper | PC Pin | Non-Shorting (BBM) | Gold | Process Sealed |

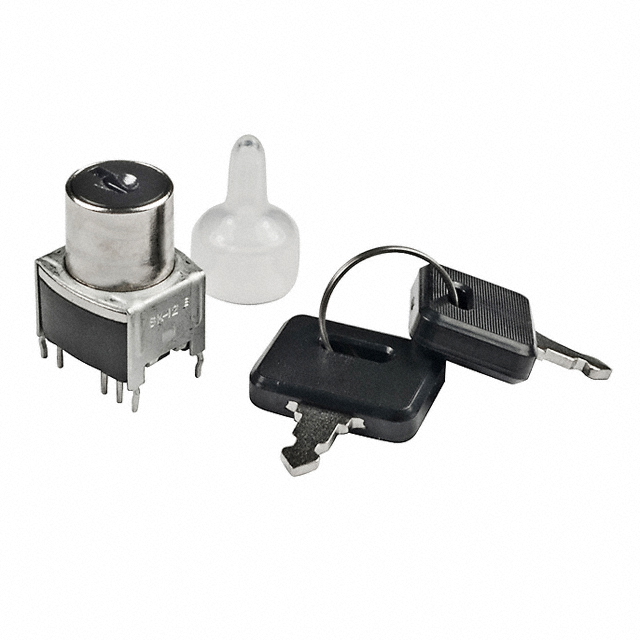

 NKK Switches | 10000 Cycles | 30000 Steps | 0.4 VA | Through Hole | 2 | 90 ° | SPDT | -25 °C | 70 °C | Flat Key | 1 | On-On | 28 V | 28 V | Beryllium Copper | PC Pin | Non-Shorting (BBM) | Gold | Process Sealed |
