GBTAAT0-H Series
Manufacturer: ODU
Beta
⌘K

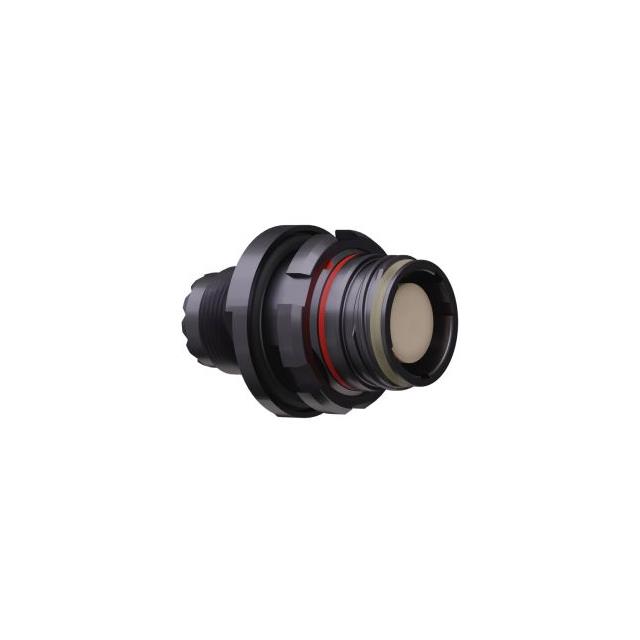

ODU AMC SERIES T RECEPTACLE FOR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Voltage Rating | Ingress Protection | Mounting Type | Termination | Material Flammability Rating | Connector Type | Features | Current Rating (Amps) | Contact Finish - Mating | Shell Material | Insert Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Size - Insert [custom] | Number of Positions | Contact Material | Color | Shell Finish | Primary Material | Shielding | Orientation | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-65 ░C | 175 °C | Push-Pull Threaded | 50 V | IP68 IP69K | Free Hanging (In-Line) Panel Mount | Crimp | UL94 V-0 | Receptacle Female Sockets | Backshell Coupling Nut | 13 A | Gold | Aluminum | Polyetheretherketone (PEEK) | 50 µin | 1.27 µm | 12 | 5 | Copper Alloy | Silver | Tin Nickel | Metal | Shielded | A | Bulkhead - Front Side Nut | |
-65 ░C | 175 °C | Push-Pull Threaded | 50 V | IP68 IP69K | Free Hanging (In-Line) Panel Mount | Crimp | UL94 V-0 | Receptacle Female Sockets | Backshell Coupling Nut | 5 A 7.5 A | Gold | Aluminum | Polyetheretherketone (PEEK) | 50 µin | 1.27 µm | 12 | 18 | Copper Alloy | Silver | Tin Nickel | Metal | Shielded | A | Bulkhead - Front Side Nut |
