3906 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

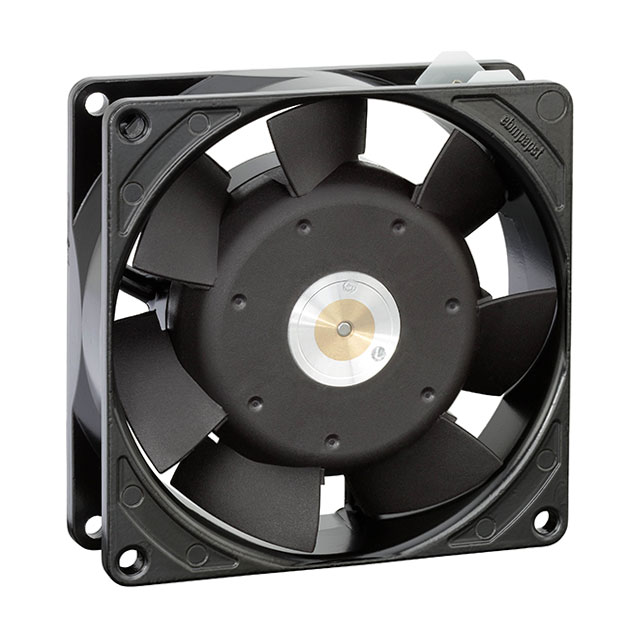

FAN AXIAL 92X25MM 115VAC TERM
| Part | Material - Blade | Lifetime @ Temp. | Material - Frame | Fan Type | Termination | Size / Dimension [y] | Size / Dimension [x] | Bearing Type | Approval Agency | RPM | Power (Watts) | Air Flow | Air Flow | Width [y] | Noise | Weight [custom] | Weight [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Mineral Reinforced Nylon Polyamide (PA) | 70000 Hrs | Metal | Tubeaxial | 2 | 92 mm | 92 mm | Ball | CE CSA UL VDE | 1850 RPM | 5 W | 23 CFM | 0.644 m³/min | 25 mm | 27 dB(A) | 0.617 lb | 279.87 g | 80 °C | -40 C | 115 VAC |
ebm-papst Inc. | Mineral Reinforced Nylon Polyamide (PA) | 70000 Hrs | Metal | Tubeaxial | 2 | 92 mm | 92 mm | Ball | CE CSA UL VDE | 2600 RPM | 5 W | 31.2 CFM | 0.874 m³/min | 25 mm | 34 dB(A) | 0.617 lb | 279.87 g | 80 °C | -40 C | 115 VAC |
