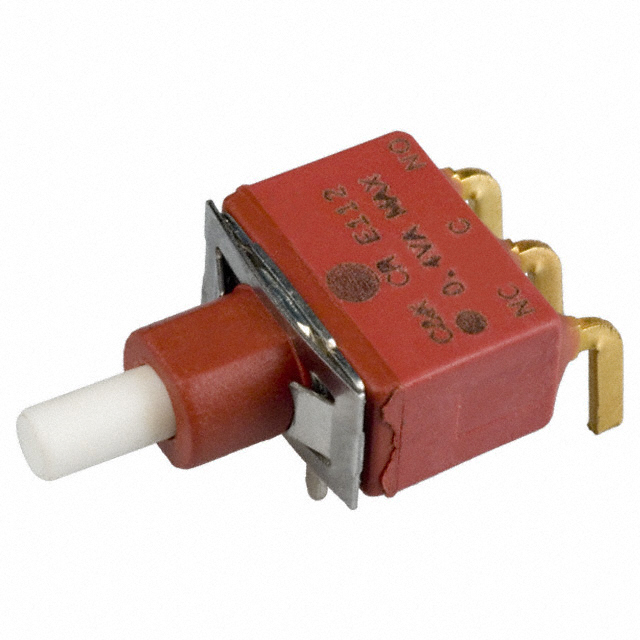

E0100 Series Series

Sealed Momentary Pushbutton Switches

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Sealed Momentary Pushbutton Switches

Part	Actuator Type	Features	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Color - Actuator/Cap	Termination Style	Mounting Type	Current Rating (Amps)	Actuator Marking	Voltage Rating - AC	Voltage Rating - DC	Switch Function	Circuit	Type	Panel Cutout Dimensions [diameter]
Littelfuse/Commercial Vehicle Products E112SD1AV2GE	Round Plunger	Process Sealed	40000 Cycles	-30 ░C	75 ░C	White	PC Pin	Right Angle Through Hole Vertical	4 A	No Marking	125 V	28 V	On-Mom	SPDT	Standard
Littelfuse/Commercial Vehicle Products E112SD1AV3BE	Round Plunger	Process Sealed	40000 Cycles	-30 ░C	75 ░C	White	PC Pin	Right Angle Through Hole Vertical	0.4 VA	No Marking	20 V	20 V	On-Mom	SPDT	Standard
Littelfuse/Commercial Vehicle Products E112SD1A3PE	Round Plunger	Process Sealed	40000 Cycles	-30 ░C	75 ░C	White	PC Pin	Through Hole Right Angle	0.4 VA	No Marking	20 V	20 V	On-Mom	SPDT	Standard
Littelfuse/Commercial Vehicle Products E112SD1AV2BE	Round Plunger	Process Sealed	40000 Cycles	-30 ░C	75 ░C	White	PC Pin	Right Angle Through Hole Vertical	0.4 VA	No Marking	20 V	20 V	On-Mom	SPDT	Standard
Littelfuse/Commercial Vehicle Products E112SD1ABE	Round Plunger	Process Sealed	40000 Cycles	-30 ░C	75 ░C	White	PC Pin	Through Hole Right Angle	0.4 VA	No Marking	20 V	20 V	On-Mom	SPDT	Standard
Littelfuse/Commercial Vehicle Products E112LD1V4BE	Round Plunger	Process Sealed	40000 Cycles	-30 ░C	75 ░C	White	PC Pin	Through Hole	0.4 VA	No Marking	20 V	20 V	On-Mom	SPDT	Standard

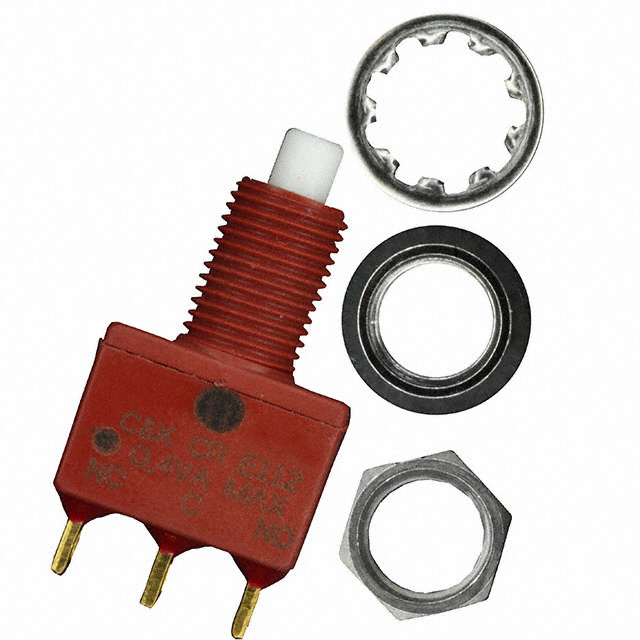

Littelfuse/Commercial Vehicle Products E112SYZBE	Round Plunger	Process Sealed	40000 Cycles	-30 ░C	75 ░C	White	Solder Lug	Panel Mount Rear	0.4 VA	No Marking	20 V	20 V	On-Mom	SPDT	Standard	0.25 in
Littelfuse/Commercial Vehicle Products E112SD1APE	Round Plunger		40000 Cycles	-30 ░C	70 °C	White	PC Pin	Through Hole Right Angle	0.4 VA	No Marking	20 V	20 V	On-Mom	SPDT	Standard
Littelfuse/Commercial Vehicle Products E112SYZQE	Round Plunger	Process Sealed	40000 Cycles	-30 ░C	75 ░C	White	Solder Lug	Panel Mount Rear	4 A	No Marking	125 V	28 V	On-Mom	SPDT	Standard	0.25 in
Littelfuse/Commercial Vehicle Products E112SD1V8BE	Round Plunger	Process Sealed	40000 Cycles	-30 ░C	75 ░C	White	PC Pin	Through Hole	0.4 VA	No Marking	20 V	20 V	On-Mom	SPDT	Standard

Catalog

Sealed Momentary Pushbutton Switches

Key Features

• Snap-fitting plunger available, accepts a variety of caps

• Process sealed, withstands soldering and cleaning

• Long life contact design

Description

The E010 series of sealed momentary pushbutton switches from C&K feature a long-life contact design and come with an optional snap-fitting plunger. Typically found in the telecommunications and networking industry, E010 switches accept a variety of caps, are RoHS compliant – and are process sealed to withstand soldering and cleaning.
