ALH Series

Catalog

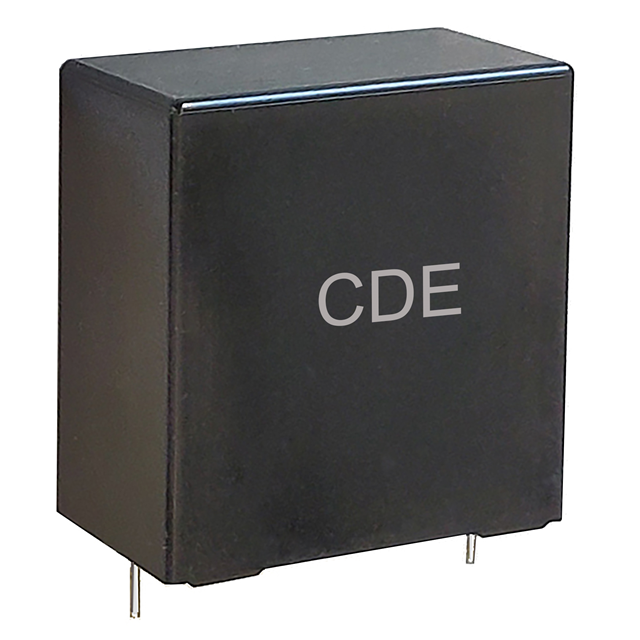

CAP FILM 6.8UF 10% 250VAC RADIAL

Part	ESR (Equivalent Series Resistance)	Capacitance	Tolerance	Termination	Dielectric Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage Rating - AC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Mounting Type	Package / Case	Lead Spacing	Lead Spacing	Ratings	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Cornell Dubilier Knowles ALH685K251A082	4.9 mOhm	6.8 µF	10 %	PC Pins	Polypropylene (PP)	0.866 in	1.26 in	32 mm	22 mm	-40 C	105 ░C	85C/85% Humidity Long Life Low ESL Low ESR THB	250 V	37.8 mm	1.488 in	Automotive EMI RFI Suppression	Through Hole	Radial	27.5 mm	1.083 in	AEC-Q200

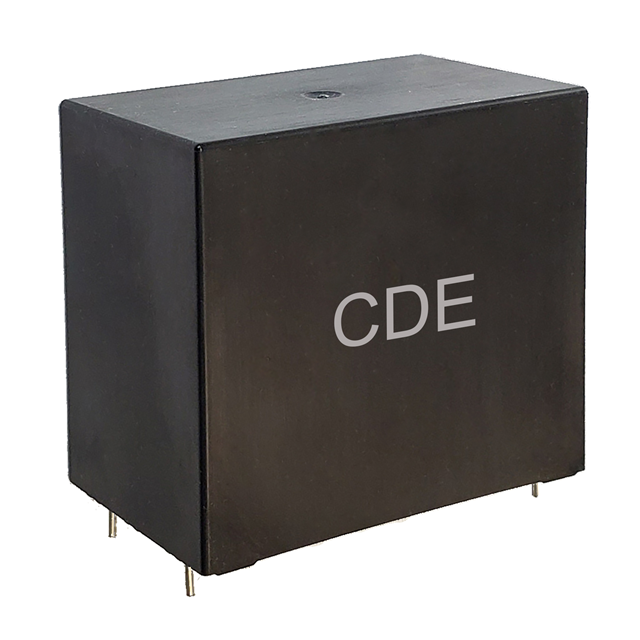

Cornell Dubilier Knowles ALH505K401B064	6.2 mOhms	5 µF	10 %	PC Pins	Polypropylene (PP)	1.102 "	1.673 "	42.5 mm		-40 C	105 ░C	85C/85% Humidity Long Life Low ESL Low ESR THB	400 V	37.8 mm	1.488 in	Automotive EMI RFI Suppression	Through Hole	Radial - 4 Leads	37.5 mm	1.476 in	AEC-Q200	28 mm
Cornell Dubilier Knowles ALH256K251C064	5.7 mOhms	25 µF	10 %	PC Pins	Polypropylene (PP)	1.181 in	2.264 in	57.5 mm	30 mm	-40 C	105 ░C	85C/85% Humidity Long Life Low ESL Low ESR THB	250 V		46 mm	Automotive EMI RFI Suppression	Through Hole	Radial - 4 Leads	52.5 mm	2.067 in	AEC-Q200		1.811 in
Cornell Dubilier Knowles ALH206K161B064	6.9 mOhms	20 µF	10 %	PC Pins	Polypropylene (PP)	1.102 "	1.673 "	42.5 mm		-40 C	105 ░C	85C/85% Humidity Long Life Low ESL Low ESR THB	160 V	37.8 mm	1.488 in	Automotive EMI RFI Suppression	Through Hole	Radial - 4 Leads	37.5 mm	1.476 in	AEC-Q200	28 mm
Cornell Dubilier Knowles ALH685K351B064	6.2 mOhms	6.8 µF	10 %	PC Pins	Polypropylene (PP)	1.102 "	1.673 "	42.5 mm		-40 C	105 ░C	85C/85% Humidity Long Life Low ESL Low ESR THB	350 V			Automotive EMI RFI Suppression	Through Hole	Radial - 4 Leads	37.5 mm	1.476 in	AEC-Q200	28 mm		1.476 in	37.5 mm
Cornell Dubilier Knowles ALH155K451A082	7.3 mOhms	1500 nF	10 %	PC Pins	Polypropylene (PP)	0.866 in	1.26 in	32 mm	22 mm	-40 C	105 ░C	85C/85% Humidity Long Life Low ESL Low ESR THB	450 V	37.8 mm	1.488 in	Automotive EMI RFI Suppression	Through Hole	Radial	27.5 mm	1.083 in	AEC-Q200
Cornell Dubilier Knowles ALH335K251A052	6.2 mOhms	3.3 µF	10 %	PC Pins	Polypropylene (PP)	0.551 in	1.26 in	32 mm	14 mm	-40 C	105 ░C	85C/85% Humidity Long Life Low ESL Low ESR THB	250 V		28.8 mm	Automotive EMI RFI Suppression	Through Hole	Radial	27.5 mm	1.083 in	AEC-Q200		1.134 in
Cornell Dubilier Knowles ALH225K161A022	15.3 mOhms	2.2 µF	10 %	PC Pins	Polypropylene (PP)	0.433 in	1.26 in	32 mm		-40 C	105 ░C	85C/85% Humidity Long Life Low ESL Low ESR THB	160 V		20.8 mm	Automotive EMI RFI Suppression	Through Hole	Radial	27.5 mm	1.083 in	AEC-Q200	11 mm	0.819 in
Cornell Dubilier Knowles ALH106K271B084	5.9 mOhm	10 µF	10 %	PC Pins	Polypropylene (PP)	0.787 in	1.673 "	42.5 mm		-40 C	105 ░C	85C/85% Humidity Long Life Low ESL Low ESR THB	275 V			Automotive EMI RFI Suppression	Through Hole	Radial - 4 Leads	37.5 mm	1.476 in	AEC-Q200	20 mm		1.606 in	40.8 mm
Cornell Dubilier Knowles ALH335K351A082	5.7 mOhms	3.3 µF	10 %	PC Pins	Polypropylene (PP)	0.866 in	1.26 in	32 mm	22 mm	-40 C	105 ░C	85C/85% Humidity Long Life Low ESL Low ESR THB	350 V	37.8 mm	1.488 in	Automotive EMI RFI Suppression	Through Hole	Radial	27.5 mm	1.083 in	AEC-Q200
