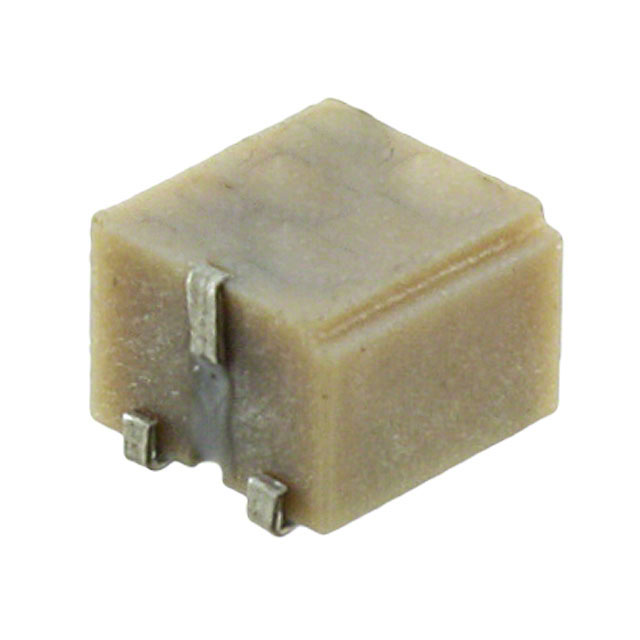

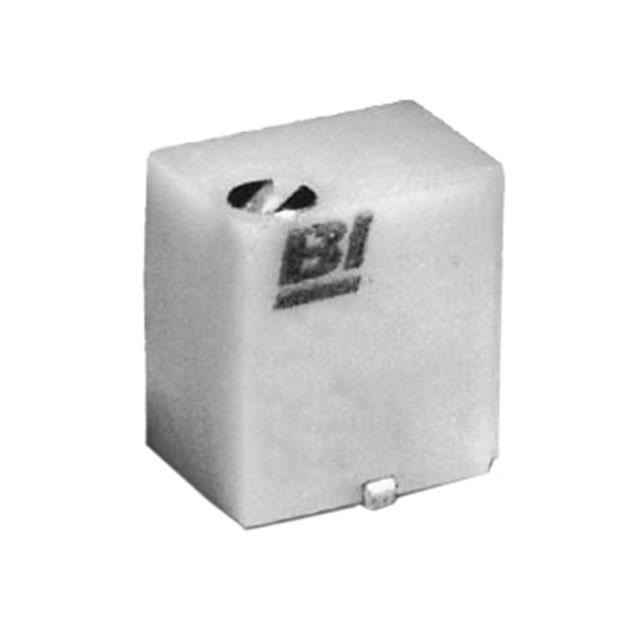

44WR Series

Catalog

TRIMMER 1M OHM 0.25W J LEAD TOP

Part	Resistive Material	Power (Watts)	Power (Watts)	Temperature Coefficient	Tolerance	Adjustment Type	Number of Turns	Resistance	Termination Style	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
TT Electronics/BI 44WR1MEGLFT13	Cermet	0.25 W	0.25 W	100 ppm/°C	10 %	Top Adjustment	9	1 MOhms	J Lead	Surface Mount	0.154 in	4.83 mm	0.19 "	3.91 mm
TT Electronics/BI 44WR50KLFT13	Cermet	0.25 W	0.25 W	100 ppm/°C	10 %	Top Adjustment	9	50000 Ohms	J Lead	Surface Mount	0.154 in	4.83 mm	0.19 "	3.91 mm
TT Electronics/BI 44WR1KLFT7	Cermet	0.25 W	0.25 W	100 ppm/°C	10 %	Top Adjustment	9	1000 Ohms	J Lead	Surface Mount	0.138 in	4.83 mm	0.19 "	3.51 mm
TT Electronics/BI 44WR10KLFT13	Cermet	0.25 W	0.25 W	100 ppm/°C	10 %	Top Adjustment	9	10000 Ohms	J Lead	Surface Mount	0.154 in	4.83 mm	0.19 "	3.91 mm
TT Electronics/BI 44WR100KLFT7	Cermet	0.25 W	0.25 W	100 ppm/°C	10 %	Top Adjustment	9	100 kOhms	J Lead	Surface Mount	0.138 in	4.83 mm	0.19 "	3.51 mm
TT Electronics/BI 44WR2MEGLFT7	Cermet	0.25 W	0.25 W	100 ppm/°C	10 %	Top Adjustment	9	2 MOhms	J Lead	Surface Mount	0.154 in	4.83 mm	0.19 "	3.91 mm
TT Electronics/BI 44WR500LFT7	Cermet	0.25 W	0.25 W	100 ppm/°C	10 %	Top Adjustment	9	0.5 kOhms	J Lead	Surface Mount	0.138 in	4.83 mm	0.19 "	3.51 mm
TT Electronics/BI 44WR1KLFT13	Cermet	0.25 W	0.25 W	100 ppm/°C	10 %	Top Adjustment	9	1000 Ohms	J Lead	Surface Mount	0.154 in	4.83 mm	0.19 "	3.91 mm
TT Electronics/BI 44WR50LFTB	Cermet	0.25 W	0.25 W	250 ppm/°C	20 %	Top Adjustment	9	50 Ohms	J Lead	Surface Mount	0.154 in	4.83 mm	0.19 "	3.91 mm
TT Electronics/BI 44WR1KLFTB	Cermet	0.25 W	0.25 W	100 ppm/°C	10 %	Top Adjustment	9	1000 Ohms	J Lead	Surface Mount	0.138 in	4.83 mm	0.19 "	3.51 mm
