10035388 Series

Catalog

CONN EDGE DUAL FML 62POS 0.100

Part	Material - Insulation	Mounting Type	Card Thickness	Card Thickness	Number of Positions	Contact Finish	Color	Termination	Read Out	Gender	Contact Finish Thickness	Contact Finish Thickness	Card Type	Pitch	Pitch	Contact Material	Number of Rows [custom]	Contact Type	Termination Rows [custom]	Features	Number of Positions/Bay/Row
Amphenol ICC (FCI) 10035388-206LF	Thermoplastic	Right Angle Through Hole	1.57 mm	0.062 in	62	Gold	Black	Solder	Dual	Female	30 Áin	0.76 Ám	Non Specified - Dual Edge	0.1 "	2.54 mm	Copper Alloy	2	Cantilever
Amphenol ICC (FCI) 10035388-802LF	Thermoplastic	Right Angle Through Hole	1.57 mm	0.062 in	34	Gold	Black	Solder	Dual	Female	30 Áin	0.76 Ám	Non Specified - Dual Edge	0.1 "	2.54 mm	Copper Alloy	2	Cantilever

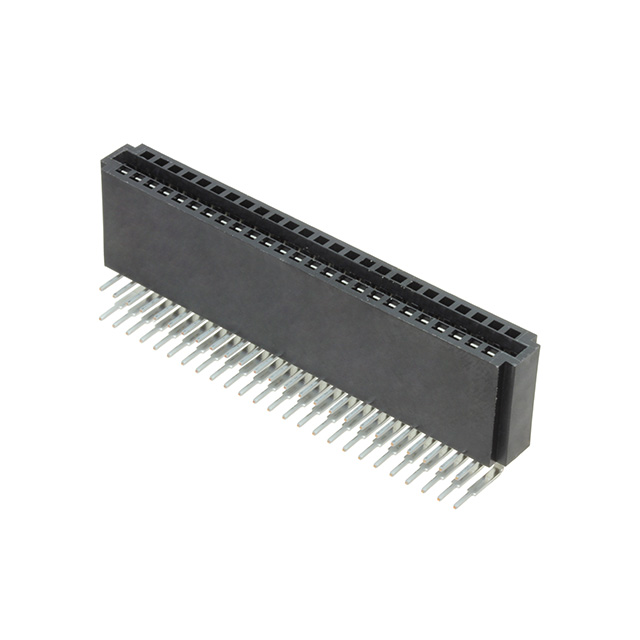

Amphenol ICC (FCI) 10035388-102LF	Thermoplastic	Right Angle Through Hole	1.57 mm	0.062 in	50	Gold	Black	Solder	Dual	Female	30 Áin	0.76 Ám	Non Specified - Dual Edge	0.1 "	2.54 mm	Copper Alloy	2	Cantilever
Amphenol ICC (FCI) 10035388-700LF	Thermoplastic	Right Angle Through Hole	1.57 mm	0.062 in	64	Gold	Black	Solder	Dual	Female	30 Áin	0.76 Ám	Non Specified - Dual Edge	0.1 "	2.54 mm	Copper Alloy	2	Cantilever
Amphenol ICC (FCI) 10035388-100LF	Thermoplastic	Right Angle Through Hole	1.57 mm	0.062 in	50	Gold	Black	Solder	Dual	Female	30 Áin	0.76 Ám	Non Specified - Dual Edge	0.1 "	2.54 mm	Copper Alloy	2	Cantilever
Amphenol ICC (FCI) 10035388-300LF	Thermoplastic	Right Angle Through Hole	1.57 mm	0.062 in	64	Gold	Black	Solder	Dual	Female	30 Áin	0.76 Ám	Non Specified - Dual Edge	0.1 "	2.54 mm	Copper Alloy	2	Cantilever
Amphenol ICC (FCI) 10035388-200LF	Thermoplastic	Right Angle Through Hole	1.57 mm	0.062 in	62	Gold	Black	Solder	Dual	Female	30 Áin	0.76 Ám	Non Specified - Dual Edge	0.1 "	2.54 mm	Copper Alloy	2	Cantilever
Amphenol ICC (FCI) 10035388-203LF	Thermoplastic	Right Angle Through Hole	1.57 mm	0.062 in	62	Gold	Black	Solder	Dual	Female	30 Áin	0.76 Ám	Non Specified - Dual Edge	0.1 "	2.54 mm	Copper Alloy	2	Cantilever
Amphenol ICC (FCI) 10035388-126LF	Thermoplastic	Board Edge Right Angle Through Hole	1.57 mm	0.062 in	28	Gold	Black	Solder	Dual	Female	30 Áin	0.76 Ám	Non Specified - Dual Edge	0.1 "	2.54 mm	Copper Alloy	2	Cantilever	2	Board Guide	14
Amphenol ICC (FCI) 10035388-119LF	Thermoplastic	Right Angle Through Hole	1.57 mm	0.062 in	70	Gold	Black	Solder	Dual	Female	30 Áin	0.76 Ám	Non Specified - Dual Edge	0.1 "	2.54 mm	Copper Alloy	2	Cantilever
