CMLE041B Series

Catalog

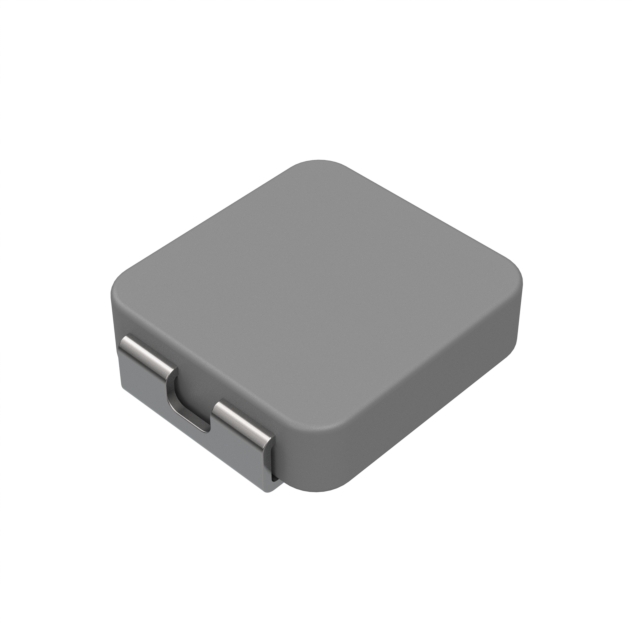

FIXED IND 1UH 5.5A 34.5 OHM SMD

Part	Shielding	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Amps)	Mounting Type	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Current - Saturation (Isat)	Inductance	Operating Temperature [Min]	Operating Temperature [Max]	Material - Core
Delta Electronics/Cyntec CMLE041B-1R0MS	Shielded	20 %	1.2 mm	0.047 "	Nonstandard	0.165 in	0.173 in	4.4 mm	4.2 mm	5.5 Amps	Surface Mount	100 kHz	34.5 Ohm	6 A	1 µH	-55 C	125 °C	Metal
Delta Electronics/Cyntec CMLE041B-2R2MS	Shielded	20 %	1.2 mm	0.047 "	Nonstandard	0.165 in	0.173 in	4.4 mm	4.2 mm	3.7 A	Surface Mount	100 kHz	82 Ohm	3.8 A	2.2 µH	-55 C	125 °C	Metal
Delta Electronics/Cyntec CMLE041B-1R5MS	Shielded	20 %	1.2 mm	0.047 "	Nonstandard	0.165 in	0.173 in	4.4 mm	4.2 mm	5 A	Surface Mount	100 kHz		5 A	1.5 µH	-55 C	125 °C	Metal
Delta Electronics/Cyntec CMLE041B-R33MS	Shielded	20 %	1.2 mm	0.047 "	Nonstandard	0.165 in	0.173 in	4.4 mm	4.2 mm	12 Amps	Surface Mount	100 kHz	12 Ohm		330 nH	-55 C	125 °C	Metal
Delta Electronics/Cyntec CMLE041B-R47MS	Shielded	20 %	1.2 mm	0.047 "	Nonstandard	0.165 in	0.173 in	4.4 mm	4.2 mm	9.5 A	Surface Mount	100 kHz	18.4 Ohm	9.2 A	470 nH	-55 C	125 °C	Metal
