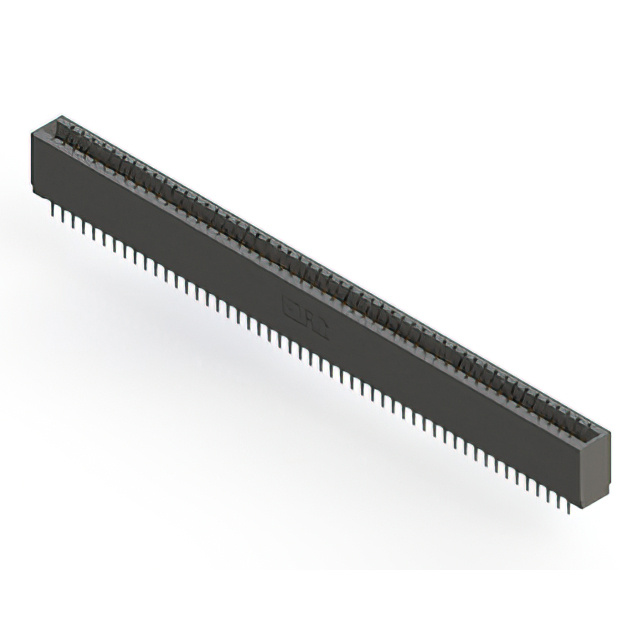

746-102 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 102POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Contact Material	Contact Type	Gender	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Number of Positions	Color	Contact Finish Thickness	Contact Finish Thickness	Read Out	Number of Positions/Bay/Row [custom]	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Mounting Type	Number of Rows [custom]
EDAC Inc. 746-102-545-601	Polyester Thermoplastic	2	Copper Alloy	Cantilever	Female	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	102	Black	30 Áin	0.76 Ám	Dual	51	Press-Fit Wire Wrap	-40 C	105 ░C	Non Specified - Dual Edge	Through Hole	2
EDAC Inc. 746-102-520-606	Polyester Thermoplastic	2	Copper Alloy	Cantilever	Female	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	102	Black	30 Áin	0.76 Ám	Dual	51	Press-Fit	-40 C	105 ░C	Non Specified - Dual Edge	Through Hole	2
EDAC Inc. 746-102-540-601	Polyester Thermoplastic	2	Copper Alloy	Cantilever	Female	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	102	Black	30 Áin	0.76 Ám	Dual	51	Press-Fit Wire Wrap	-40 C	105 ░C	Non Specified - Dual Edge	Through Hole	2
EDAC Inc. 746-102-541-201	Polyester Thermoplastic	2	Copper Alloy	Cantilever	Female	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	102	Black	30 Áin	0.76 Ám	Dual	51	Press-Fit Wire Wrap	-40 C	105 ░C	Non Specified - Dual Edge	Through Hole	2
EDAC Inc. 746-102-553-206	Polyester Thermoplastic	2	Copper Alloy	Cantilever	Female	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	102	Black	30 Áin	0.76 Ám	Dual	51	Press-Fit Wire Wrap	-40 C	105 ░C	Non Specified - Dual Edge	Through Hole	2
EDAC Inc. 746-102-553-601	Polyester Thermoplastic	2	Copper Alloy	Cantilever	Female	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	102	Black	30 Áin	0.76 Ám	Dual	51	Press-Fit Wire Wrap	-40 C	105 ░C	Non Specified - Dual Edge	Through Hole	2
EDAC Inc. 746-102-553-201	Polyester Thermoplastic	2	Copper Alloy	Cantilever	Female	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	102	Black	30 Áin	0.76 Ám	Dual	51	Press-Fit Wire Wrap	-40 C	105 ░C	Non Specified - Dual Edge	Through Hole	2
EDAC Inc. 746-102-540-206	Polyester Thermoplastic	2	Copper Alloy	Cantilever	Female	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	102	Black	30 Áin	0.76 Ám	Dual	51	Press-Fit Wire Wrap	-40 C	105 ░C	Non Specified - Dual Edge	Through Hole	2
EDAC Inc. 746-102-525-201	Polyester Thermoplastic	2	Copper Alloy	Cantilever	Female	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	102	Black	30 Áin	0.76 Ám	Dual	51	Press-Fit	-40 C	105 ░C	Non Specified - Dual Edge	Through Hole	2
EDAC Inc. 746-102-553-606	Polyester Thermoplastic	2	Copper Alloy	Cantilever	Female	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	102	Black	30 Áin	0.76 Ám	Dual	51	Press-Fit Wire Wrap	-40 C	105 ░C	Non Specified - Dual Edge	Through Hole	2
