TPS7A3501 Series

1-A, low-noise, adjustable low-dropout voltage regulator with enable

Catalog

1-A, low-noise, adjustable low-dropout voltage regulator with enable

Part	Type	Supplied Contents	Function	Utilized IC / Part	Number of Regulators	Operating Temperature [Max]	Operating Temperature [Min]	Protection Features	Voltage - Output (Min/Fixed)	Current - Output	Voltage - Output (Max) [Max]	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	Supplier Device Package	Output Configuration	Control Features	Output Type	PSRR [Min]	PSRR [Max]	Mounting Type

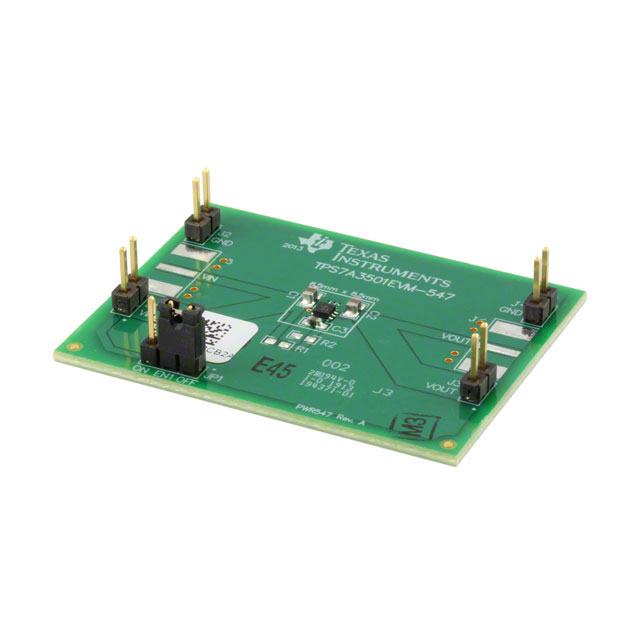

Texas Instruments TPS7A3501EVM-547	Power Management	Board(s)	Power Filter	TPS7A3501
Texas Instruments TPS7A3501DRVT					1	125 °C	-40 °C	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	1.21 V	1 A	4.5 V	5 mA	5 V	6-WSON (2x2)	Positive	Enable	Adjustable	42 dB	55 dB	Surface Mount

Catalog

1-A, low-noise, adjustable low-dropout voltage regulator with enable

Key Features

• Regulates Input-to-Output Voltage:User-Programmable Input-to-Output VoltageRegulation Range:200 mV to 500 mVPower-Supply Rejection Ratio:42 dB at 1 MHz≥ 32 dB (360 kHz to 3.9 MHz)Low-Noise Output:3.8 µVRMS(10 Hz to 100 kHz)Output Current: Up to 1 AOutput Voltage Range: 1.21 V to 4.5 VExcellent Load Transient ResponseStable With Ceramic Capacitors as Low as10 µFCurrent Limit and Thermal Shutdown forFault ProtectionAvailable in a Low Thermal Resistance Package:2-mm × 2-mm WSON-6Operating Temperature Range:–40°C to 125°CRegulates Input-to-Output Voltage:User-Programmable Input-to-Output VoltageRegulation Range:200 mV to 500 mVPower-Supply Rejection Ratio:42 dB at 1 MHz≥ 32 dB (360 kHz to 3.9 MHz)Low-Noise Output:3.8 µVRMS(10 Hz to 100 kHz)Output Current: Up to 1 AOutput Voltage Range: 1.21 V to 4.5 VExcellent Load Transient ResponseStable With Ceramic Capacitors as Low as10 µFCurrent Limit and Thermal Shutdown forFault ProtectionAvailable in a Low Thermal Resistance Package:2-mm × 2-mm WSON-6Operating Temperature Range:–40°C to 125°C

Description

The TPS7A3501 is a positive voltage, low-noise(3.8-µVRMS) power filter capable of sourcing a 1-A load suitable for quiet supply solutions. Power filters, such as the TPS7A3501, provide voltage regulation across the input and output terminals with high efficiency (low insertion loss), and power-supply rejection. The device is ideally suited as a noise filter for 3.3-V, 2.5-V, and 1.8-V supplies at up to 1 A. The input-to-output voltage regulation is also user-programmable, from 200 mV to 500 mV, with a single external resistor. If no resistor is used, the TPS7A3501 provides 330 mV of input-to-output voltage regulation. The device is stable with 10-µF input and output ceramic capacitors and a 10-nF noise-reduction ceramic capacitor. The TPS7A3501 is fully specified over a wide temperature of –40°C to 125°C. The device is offered in a low thermal resistance, 2-mm × 2-mm, WSON-6 package. Unlike passive filters, the TPS7A3501 provides thermal and current protection for itself and surrounding circuitry. The TPS7A3501 is a positive voltage, low-noise(3.8-µVRMS) power filter capable of sourcing a 1-A load suitable for quiet supply solutions. Power filters, such as the TPS7A3501, provide voltage regulation across the input and output terminals with high efficiency (low insertion loss), and power-supply rejection. The device is ideally suited as a noise filter for 3.3-V, 2.5-V, and 1.8-V supplies at up to 1 A. The input-to-output voltage regulation is also user-programmable, from 200 mV to 500 mV, with a single external resistor. If no resistor is used, the TPS7A3501 provides 330 mV of input-to-output voltage regulation. The device is stable with 10-µF input and output ceramic capacitors and a 10-nF noise-reduction ceramic capacitor. The TPS7A3501 is fully specified over a wide temperature of –40°C to 125°C. The device is offered in a low thermal resistance, 2-mm × 2-mm, WSON-6 package. Unlike passive filters, the TPS7A3501 provides thermal and current protection for itself and surrounding circuitry.
