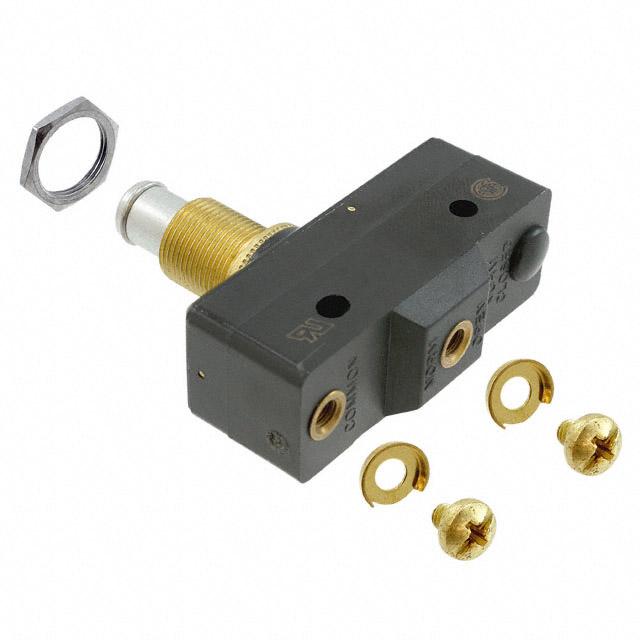

YE-2RQ Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACT SPST-NO 25A 125V
| Part | Features | Current Rating (Amps) | Termination Style | Release Force | Pretravel | Pretravel | Operating Force [Max] | Operating Force [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Actuator Type | Mechanical Life | Circuit | Operating Position | Operating Position | Differential Travel | Differential Travel | Overtravel [custom] | Overtravel [custom] | Switch Function | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Steel Plunger | 25 A | Screw Terminal | 283 gf | 0.05 in | 1.27 mm | 624 gf | 397 gf | -55 C | 121 C | Panel Mount | Overtravel Plunger | 20000000 Cycles | SPST-NO | 21.8 mm | 0.859 in | 0.007 in | 0.18 mm | 2.4 mm | 0.094 " | Off-Mom | 125 V |
