8524 Series

Catalog

WIRE, HOOK UP, PVC, RED, 22 AWG, 1000 FT

Part	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Jacket Color	Wire Gauge	Jacket (Insulation) Material	Conductor Material	Voltage	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Qualification	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Length [x]	Length [x]
Belden Inc. 8524 0021000	80 °C	-40 C	1.63 mm	0.064 in	Hook-Up	Red	22 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	1 kV	Chemical Resistant	0.43 mm	0.017 "	MIL-W-76C Type MW	30 AWG	7	304.8 m	1000 ft
Belden Inc. 8524 001100	80 °C	-40 C	1.63 mm	0.064 in	Hook-Up	Brown	22 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	1 kV	Chemical Resistant	0.43 mm	0.017 "	MIL-W-76C Type MW	30 AWG	7			100 ft	30.5 m
Belden Inc. 8524 005100	80 °C	-40 C	1.63 mm	0.064 in	Hook-Up	Green	22 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	1 kV	Chemical Resistant	0.43 mm	0.017 "	MIL-W-76C Type MW	30 AWG	7			100 ft	30.5 m
Belden Inc. 8524 006100	80 °C	-40 C	1.63 mm	0.064 in	Hook-Up	Blue	22 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	1 kV	Chemical Resistant	0.43 mm	0.017 "	MIL-W-76C Type MW	30 AWG	7			100 ft	30.5 m
Belden Inc. 8524 0051000	80 °C	-40 C	1.63 mm	0.064 in	Hook-Up	Green	22 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	1 kV	Chemical Resistant	0.43 mm	0.017 "	MIL-W-76C Type MW	30 AWG	7	304.8 m	1000 ft
Belden Inc. 8524 0081000	80 °C	-40 C	1.63 mm	0.064 in	Hook-Up	Gray	22 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	1 kV	Chemical Resistant	0.43 mm	0.017 "	MIL-W-76C Type MW	30 AWG	7	304.8 m	1000 ft
Belden Inc. 8524 002100	80 °C	-40 C	1.63 mm	0.064 in	Hook-Up	Red	22 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	1 kV	Chemical Resistant	0.43 mm	0.017 "	MIL-W-76C Type MW	30 AWG	7			100 ft	30.5 m

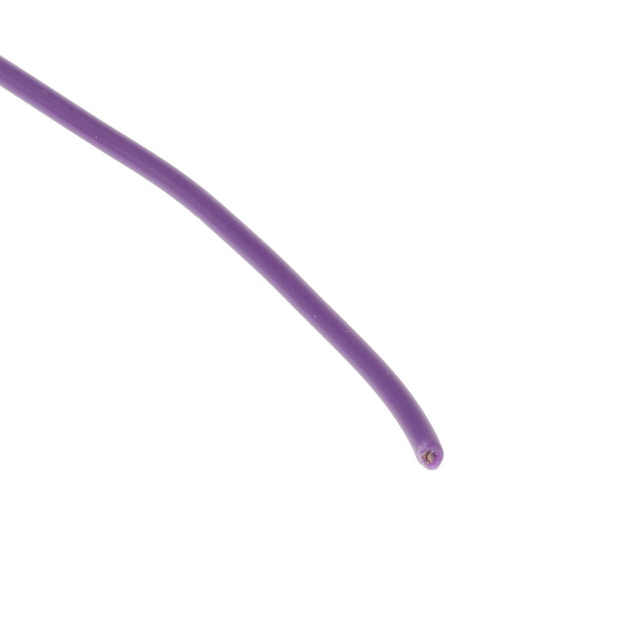

Belden Inc. 8524 0071000	80 °C	-40 C	1.63 mm	0.064 in	Hook-Up	Violet	22 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	1 kV	Chemical Resistant	0.43 mm	0.017 "	MIL-W-76C Type MW	30 AWG	7	304.8 m	1000 ft
Belden Inc. 8524 003100	80 °C	-40 C	1.63 mm	0.064 in	Hook-Up	Orange	22 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	1 kV	Chemical Resistant	0.43 mm	0.017 "	MIL-W-76C Type MW	30 AWG	7			100 ft	30.5 m
Belden Inc. 8524 0031000	80 °C	-40 C	1.63 mm	0.064 in	Hook-Up	Orange	22 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	1 kV	Chemical Resistant	0.43 mm	0.017 "	MIL-W-76C Type MW	30 AWG	7	304.8 m	1000 ft
