317-014 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 14POS 0.156

Part	Material - Insulation	Pitch	Pitch	Contact Material	Termination	Contact Finish	Mounting Type	Read Out	Number of Rows [custom]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Number of Positions/Bay/Row	Card Type	Number of Positions	Color	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Gender	Features
EDAC Inc. 317-014-542-803	Diallyl Phthalate (DAP)	3.96 mm	0.156 in	Copper Alloy	Wire Wrap	Gold	Through Hole	Dual	2	0.116 "	Floating Bobbin Flush Mount	2.95 mm	0.25 Ám	10 Áin	Cantilever	7	Non Specified - Dual Edge	14	Green	-65 ░C	125 °C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female
EDAC Inc. 317-014-542-802	Diallyl Phthalate (DAP)	3.96 mm	0.156 in	Copper Alloy	Wire Wrap	Gold	Through Hole	Dual	2				0.25 Ám	10 Áin	Cantilever	7	Non Specified - Dual Edge	14	Green	-65 ░C	125 °C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female

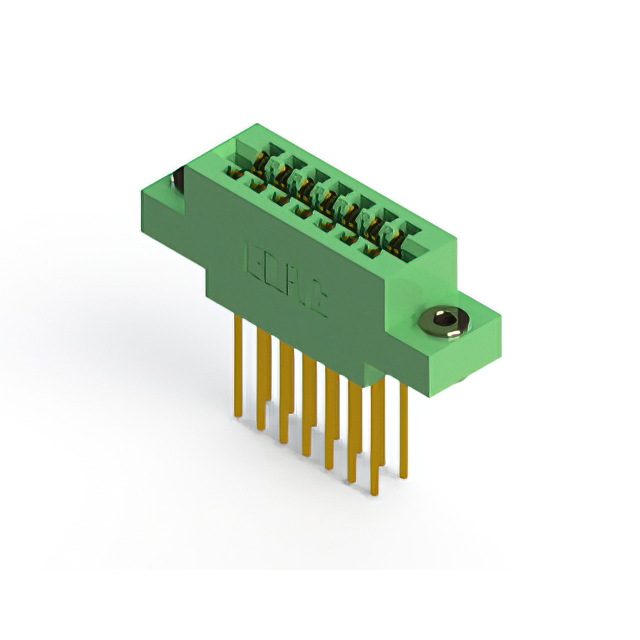

EDAC Inc. 317-014-540-803	Diallyl Phthalate (DAP)	3.96 mm	0.156 in	Copper Alloy	Wire Wrap	Gold	Through Hole	Dual	2	0.116 "	Floating Bobbin Flush Mount	2.95 mm	0.25 Ám	10 Áin	Cantilever	7	Non Specified - Dual Edge	14	Green	-65 ░C	125 °C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female

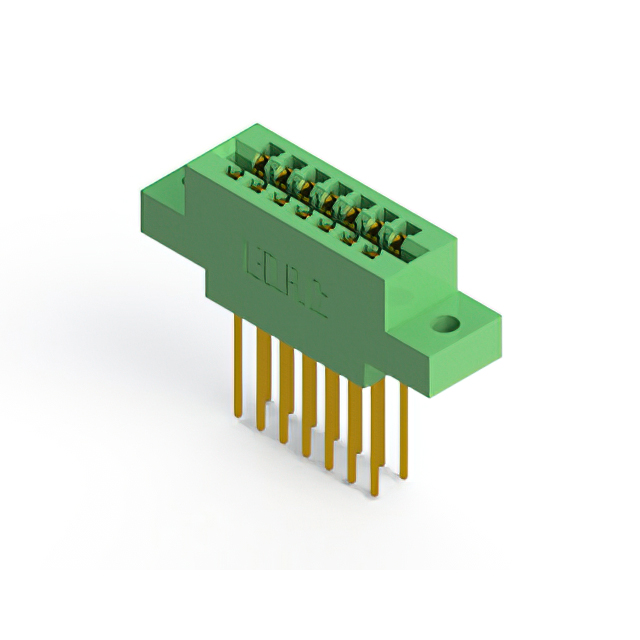

EDAC Inc. 317-014-542-804	Diallyl Phthalate (DAP)	3.96 mm	0.156 in	Copper Alloy	Wire Wrap	Gold	Through Hole	Dual	2	0.156 "		3.96 mm	0.25 Ám	10 Áin	Cantilever	7	Non Specified - Dual Edge	14	Green	-65 ░C	125 °C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female
EDAC Inc. 317-014-542-807	Diallyl Phthalate (DAP)	3.96 mm	0.156 in	Copper Alloy	Wire Wrap	Gold	Through Hole	Dual	2		M3 Threaded Insert Top Mount Opening		0.25 Ám	10 Áin	Cantilever	7	Non Specified - Dual Edge	14	Green	-65 ░C	125 °C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female

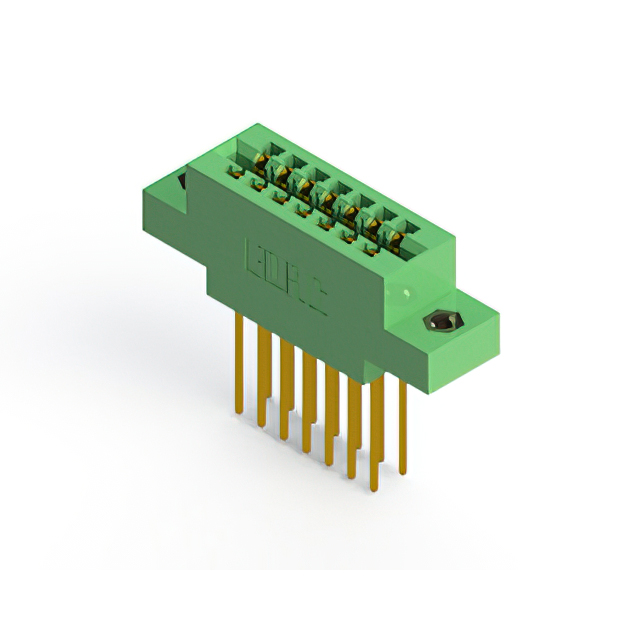

EDAC Inc. 317-014-542-878	Diallyl Phthalate (DAP)	3.96 mm	0.156 in	Copper Alloy	Wire Wrap	Gold	Through Hole	Dual	2		4-40 Threaded Insert Top Mount Opening		0.25 Ám	10 Áin	Cantilever	7	Non Specified - Dual Edge	14	Green	-65 ░C	125 °C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Card Guides

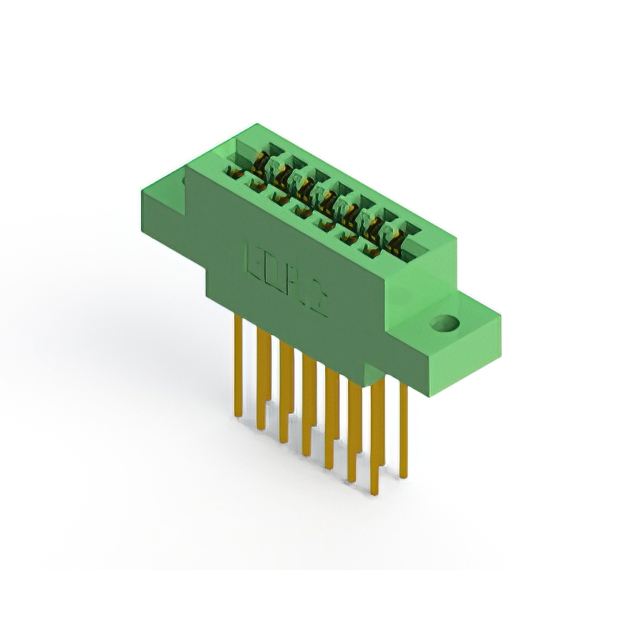

EDAC Inc. 317-014-540-804	Diallyl Phthalate (DAP)	3.96 mm	0.156 in	Copper Alloy	Wire Wrap	Gold	Through Hole	Dual	2	0.156 "		3.96 mm	0.25 Ám	10 Áin	Cantilever	7	Non Specified - Dual Edge	14	Green	-65 ░C	125 °C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female
EDAC Inc. 317-014-541-607	Diallyl Phthalate (DAP)	3.96 mm	0.156 in	Copper Alloy	Wire Wrap	Gold	Through Hole	Single	2		M3 Threaded Insert Top Mount Opening		0.25 Ám	10 Áin	Cantilever	14	Non Specified - Dual Edge	28	Green	-65 ░C	125 °C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female

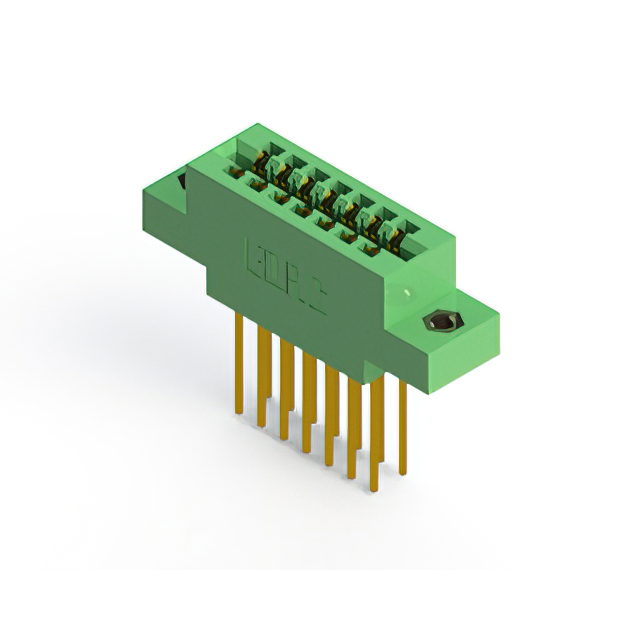

EDAC Inc. 317-014-540-807	Diallyl Phthalate (DAP)	3.96 mm	0.156 in	Copper Alloy	Wire Wrap	Gold	Through Hole	Dual	2		M3 Threaded Insert Top Mount Opening		0.25 Ám	10 Áin	Cantilever	7	Non Specified - Dual Edge	14	Green	-65 ░C	125 °C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female

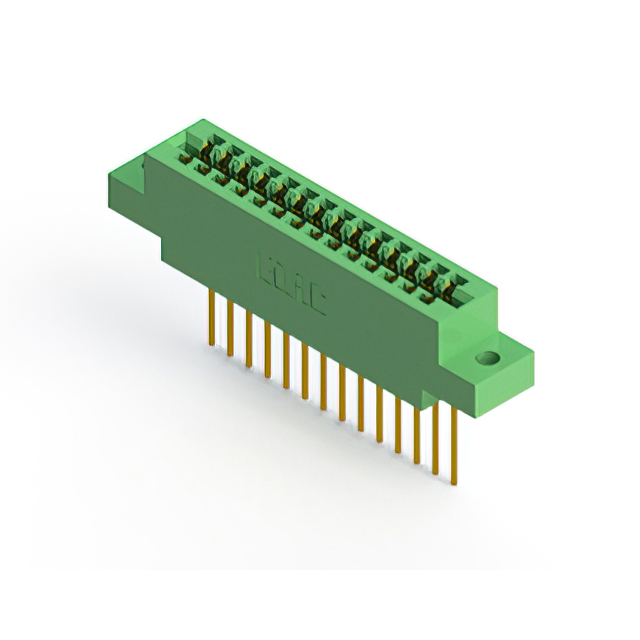

EDAC Inc. 317-014-541-604	Diallyl Phthalate (DAP)	3.96 mm	0.156 in	Copper Alloy	Wire Wrap	Gold	Through Hole	Single	2	0.156 "		3.96 mm	0.25 Ám	10 Áin	Cantilever	14	Non Specified - Dual Edge	28	Green	-65 ░C	125 °C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female
