A319V Series

Manufacturer: Serpac

Catalog

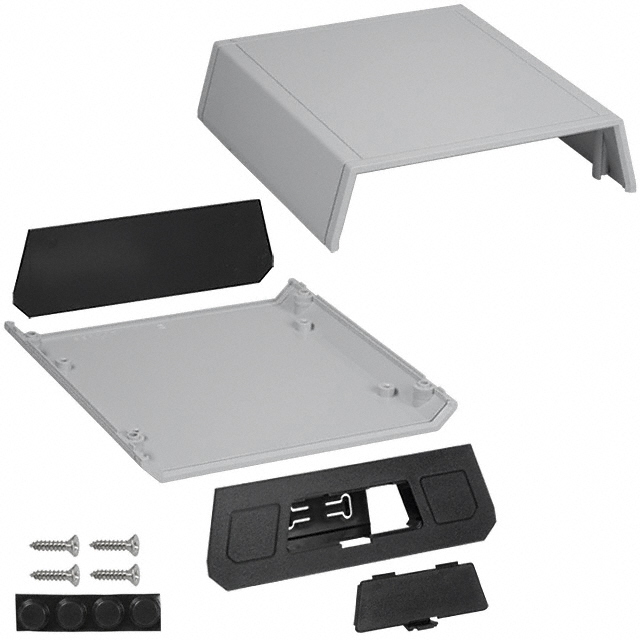

BOX ABS GRAY 5.3"L X 5.1"W

Part	Weight	Weight	Area (L x W)	Area (L x W)	Material	Height [z]	Height [z]	Design	Features	Features	Ratings	Material Flammability Rating	Thickness	Thickness	Color	Container Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
Serpac A319V,GY	139.71 g	0.308 lb	174 cm²	27 in²	ABS Plastic	1.71 in	43.43 mm	Split Sides and End Panel(s)	Battery Compartment PCB Supports	9 V	IP40	UL94 HB	2.29 mm	0.09 in	Gray	Box	5.3 "	5.1 "	129.54 mm	134.62 mm

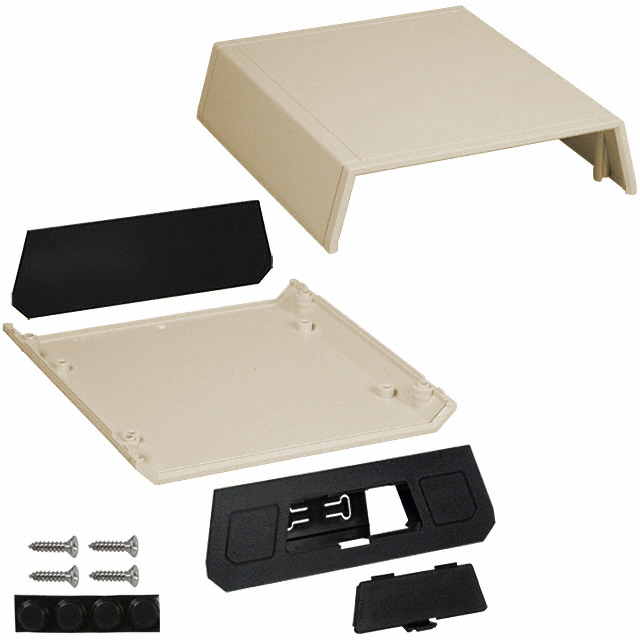

Serpac A319V,AL	139.71 g	0.308 lb	174 cm²	27 in²	ABS Plastic	1.71 in	43.43 mm	Split Sides and End Panel(s)	Battery Compartment PCB Supports	9 V	IP40	UL94 HB	2.29 mm	0.09 in	Almond	Box	5.3 "	5.1 "	129.54 mm	134.62 mm
