842-066 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 66POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Pitch	Pitch	Contact Type	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Number of Positions	Read Out	Termination	Number of Positions/Bay/Row	Card Type	Mounting Type	Color	Gender	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Features	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]

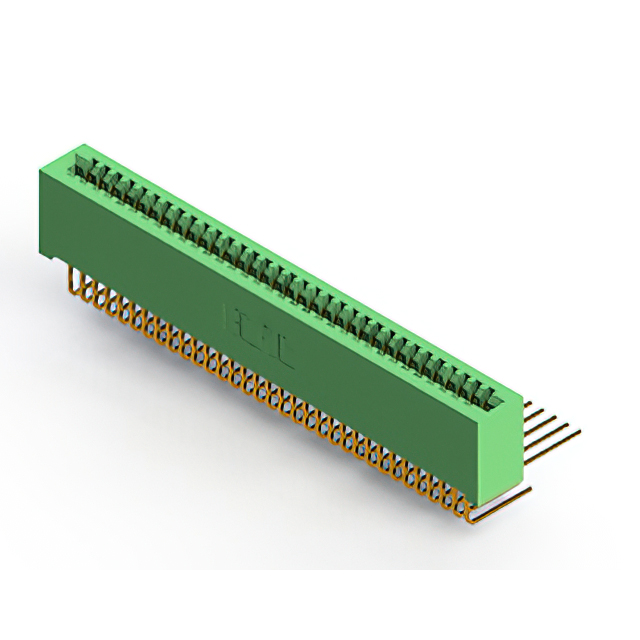

EDAC Inc. 842-066-558-201	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Cantilever	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	66	Dual	Solder	33	Non Specified - Dual Edge	Right Angle Through Hole	Green	Female	2	0.25 Ám	10 Áin
EDAC Inc. 842-066-555-202	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Cantilever	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	66	Dual	Solder	33	Non Specified - Dual Edge	Board Edge Straddle Mount	Green	Female	2	0.25 Ám	10 Áin	Card Extender	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "

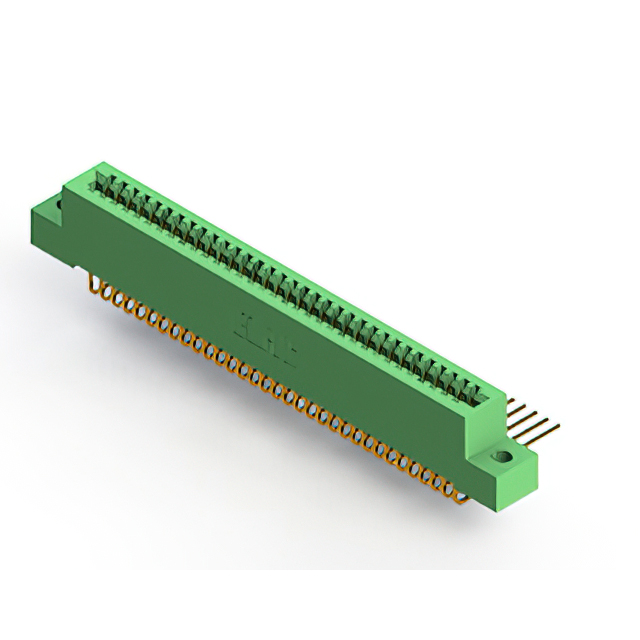

EDAC Inc. 842-066-559-202	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Cantilever	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	66	Dual	Solder	33	Non Specified - Dual Edge	Right Angle Through Hole	Green	Female	2	0.25 Ám	10 Áin		Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "

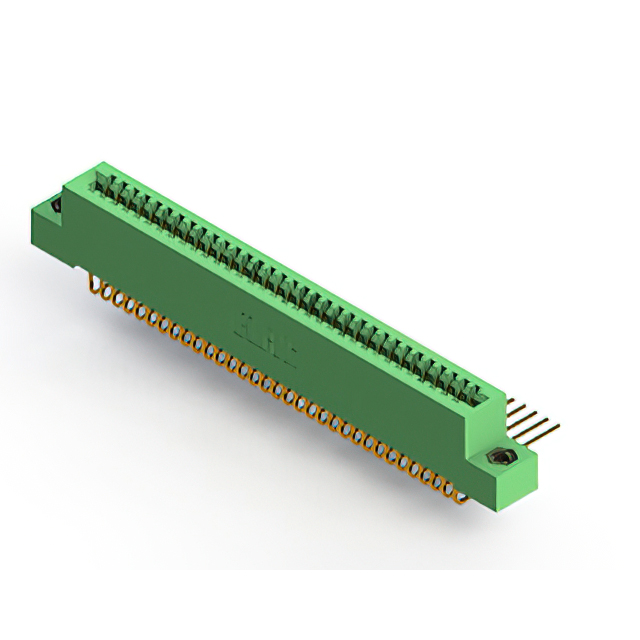

EDAC Inc. 842-066-559-208	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Cantilever	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	66	Dual	Solder	33	Non Specified - Dual Edge	Right Angle Through Hole	Green	Female	2	0.25 Ám	10 Áin		4-40 Flush Mount Threaded Insert Top Opening

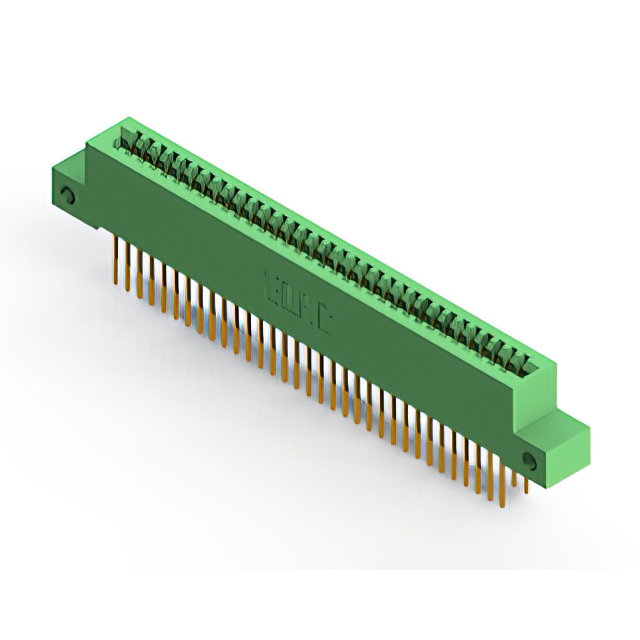

EDAC Inc. 842-066-523-212	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Cantilever	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	66	Dual	Solder	33	Non Specified - Dual Edge	Through Hole	Green	Female	2	0.25 Ám	10 Áin		Flush Mount Side Opening Unthreaded	3.25 mm	0.128 "

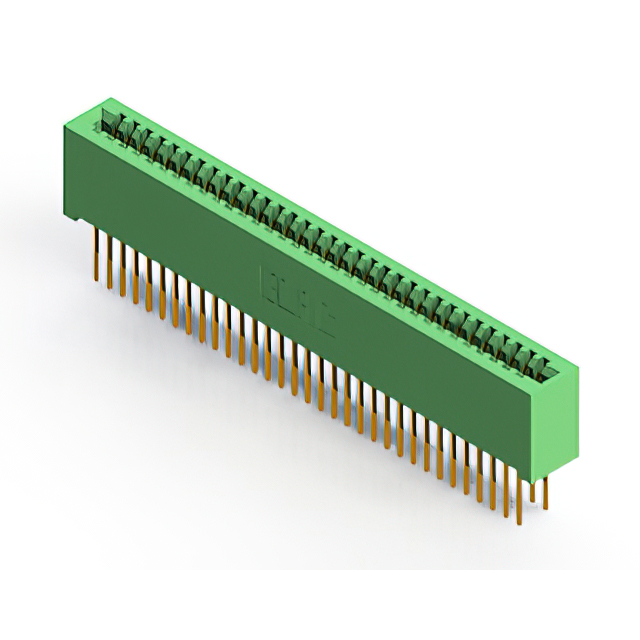

EDAC Inc. 842-066-523-201	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Cantilever	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	66	Dual	Solder	33	Non Specified - Dual Edge	Through Hole	Green	Female	2	0.25 Ám	10 Áin

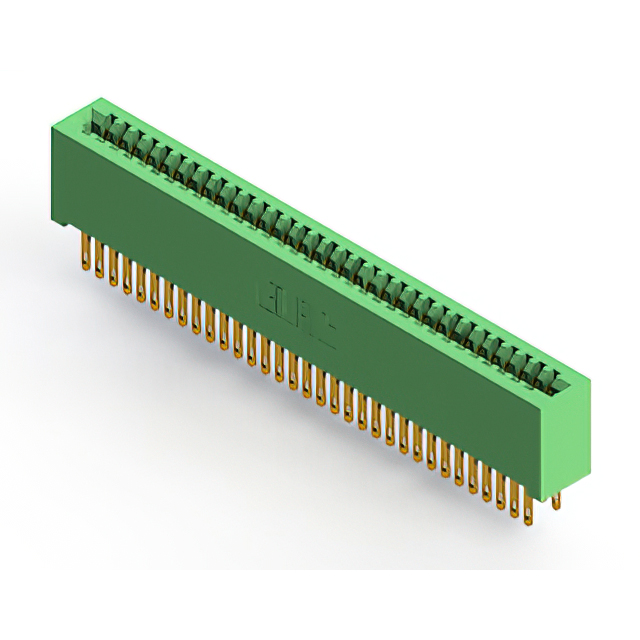

EDAC Inc. 842-066-500-201	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Cantilever	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	66	Dual	Solder Eyelet(s)	33	Non Specified - Dual Edge	Through Hole	Green	Female	2	0.25 Ám	10 Áin

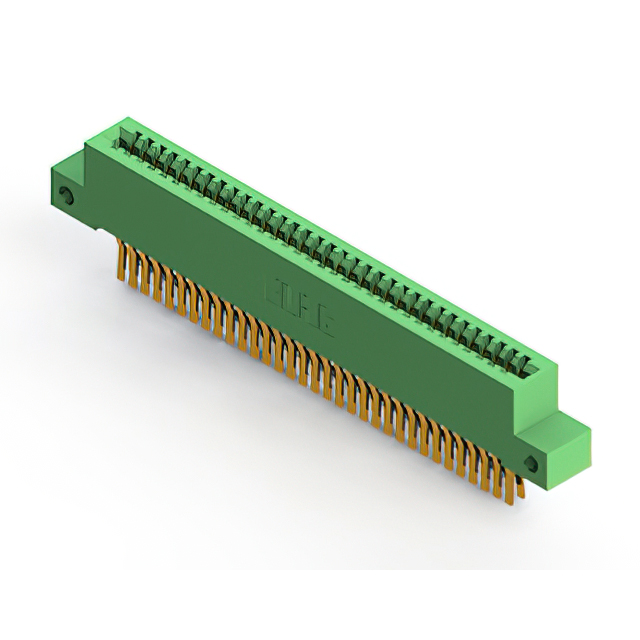

EDAC Inc. 842-066-560-212	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Cantilever	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	66	Dual	Solder	33	Non Specified - Dual Edge	Board Edge Straddle Mount	Green	Female	2	0.25 Ám	10 Áin	Card Extender	Flush Mount Side Opening Unthreaded	3.25 mm	0.128 "

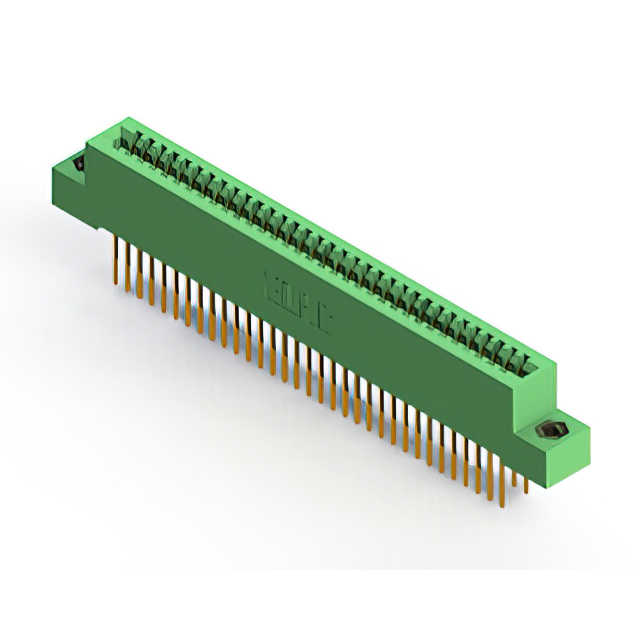

EDAC Inc. 842-066-523-208	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Cantilever	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	66	Dual	Solder	33	Non Specified - Dual Edge	Through Hole	Green	Female	2	0.25 Ám	10 Áin		4-40 Flush Mount Threaded Insert Top Opening

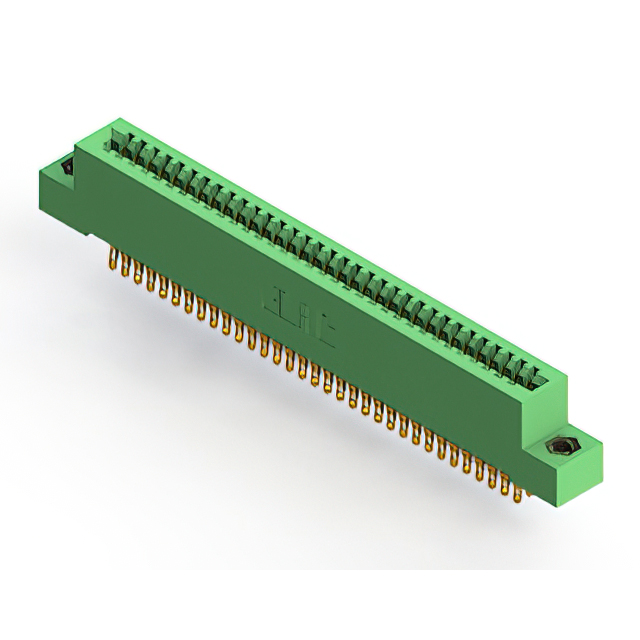

EDAC Inc. 842-066-555-207	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Cantilever	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	66	Dual	Solder	33	Non Specified - Dual Edge	Board Edge Straddle Mount	Green	Female	2	0.25 Ám	10 Áin	Card Extender	Flush Mount M3 Threaded Insert Top Opening
