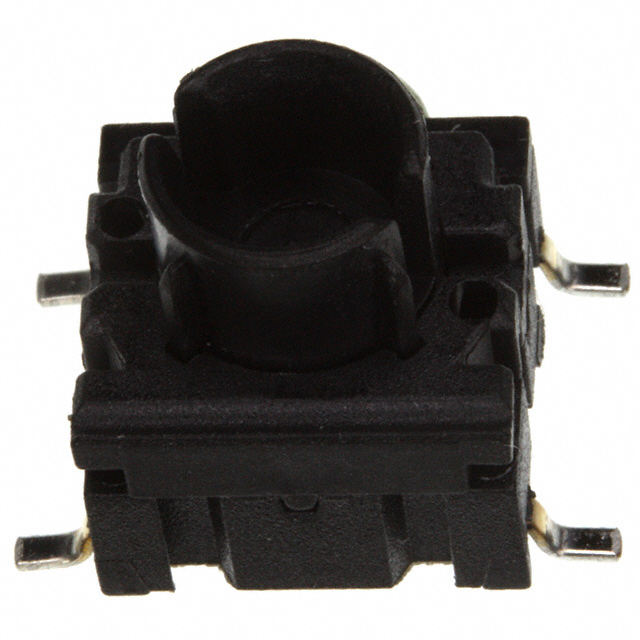

3FSH9 Series
Manufacturer: MEC Switches
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 24V
| Part | Mechanical Life | Actuator Material | Switch Travel | Actuator Height off PCB, Vertical [z] | Switch Function | Ingress Protection | Circuit | Features | Outline [x] | Outline [y] | Operating Temperature [Max] | Operating Temperature [Min] | Contact Rating @ Voltage | Mounting Type | Actuator Orientation | Illumination | Actuator Type | Operating Force | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEC Switches | 10000000 Cycles | Polyphenylene Sulfide (PPS) | 1 mm | 10.4 mm | Off-Mom | IP67 - Dust Tight Waterproof | SPST-NO | Sealed - Flux Protection | 10.1 mm | 10.1 mm | 160 °C | -40 C | 0.05 A 24 VDC | Surface Mount | Top Actuated | Non-Illuminated | Plunger for Cap | 300 gf | Gull Wing |
