833-080 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 80POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Number of Positions	Gender	Pitch	Pitch	Flange Feature [diameter]	Flange Feature [diameter]	Number of Positions/Bay/Row [custom]	Card Type	Color	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Contact Type	Contact Material	Read Out	Termination	Number of Rows [custom]	Flange Feature
EDAC Inc. 833-080-544-802	Diallyl Phthalate (DAP)	2	80	Female	3.96 mm	0.156 in	3.25 mm	0.128 "	40	Non Specified - Dual Edge	Green	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.25 Ám	10 Áin	Gold	Cantilever	Copper Alloy	Dual	Wire Wrap	2
EDAC Inc. 833-080-524-212	Diallyl Phthalate (DAP)	2	80	Female	3.96 mm	0.156 in	3.25 mm	0.128 "	40	Non Specified - Dual Edge	Green	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.25 Ám	10 Áin	Gold	Cantilever	Copper Alloy	Dual	Solder	2	Side Mount Opening Unthreaded
EDAC Inc. 833-080-559-207	Diallyl Phthalate (DAP)	2	80	Female	3.96 mm	0.156 in			40	Non Specified - Dual Edge	Green	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	0.25 Ám	10 Áin	Gold	Cantilever	Copper Alloy	Dual	Solder	2	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 833-080-544-201	Diallyl Phthalate (DAP)	2	80	Female	3.96 mm	0.156 in			40	Non Specified - Dual Edge	Green	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.25 Ám	10 Áin	Gold	Cantilever	Copper Alloy	Dual	Wire Wrap	2
EDAC Inc. 833-080-520-802	Diallyl Phthalate (DAP)	2	80	Female	3.96 mm	0.156 in	3.25 mm	0.128 "	40	Non Specified - Dual Edge	Green	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.25 Ám	10 Áin	Gold	Cantilever	Copper Alloy	Dual	Solder	2
EDAC Inc. 833-080-540-201	Diallyl Phthalate (DAP)	2	80	Female	3.96 mm	0.156 in			40	Non Specified - Dual Edge	Green	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.25 Ám	10 Áin	Gold	Cantilever	Copper Alloy	Dual	Wire Wrap	2

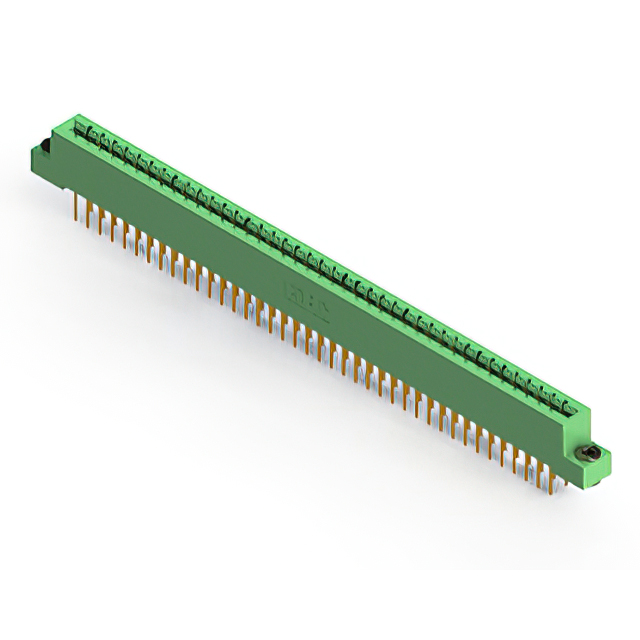

EDAC Inc. 833-080-540-203	Diallyl Phthalate (DAP)	2	80	Female	3.96 mm	0.156 in	2.95 mm	0.116 "	40	Non Specified - Dual Edge	Green	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.25 Ám	10 Áin	Gold	Cantilever	Copper Alloy	Dual	Wire Wrap	2	Floating Bobbin Flush Mount
EDAC Inc. 833-080-541-204	Diallyl Phthalate (DAP)	2	80	Female	3.96 mm	0.156 in	3.96 mm	0.156 "	40	Non Specified - Dual Edge	Green	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.25 Ám	10 Áin	Gold	Cantilever	Copper Alloy	Dual	Wire Wrap	2	Flush Mount Top Opening Unthreaded

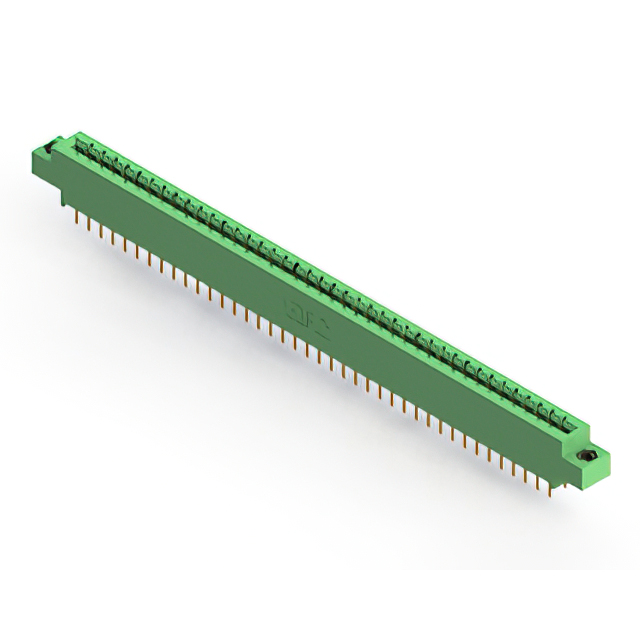

EDAC Inc. 833-080-520-808	Diallyl Phthalate (DAP)	2	80	Female	3.96 mm	0.156 in			40	Non Specified - Dual Edge	Green	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.25 Ám	10 Áin	Gold	Cantilever	Copper Alloy	Dual	Solder	2	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 833-080-523-802	Diallyl Phthalate (DAP)	2	80	Female	3.96 mm	0.156 in	3.25 mm	0.128 "	40	Non Specified - Dual Edge	Green	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.25 Ám	10 Áin	Gold	Cantilever	Copper Alloy	Dual	Solder	2
