56.32.9 Series

Catalog

RELAY GEN PURPOSE DPDT 12A 12V

Part	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Must Release Voltage	Coil Current	Relay Type	Termination Style	Termination Style	Contact Rating (Current)	Contact Material	Must Operate Voltage	Coil Voltage	Release Time	Switching Voltage [Max]	Mounting Type	Approval Agency	Load - Max Switching	Coil Type	Contact Form	Operate Time	Features
Finder Relays, Inc. 56.32.9.012.0000	140 Ohms	70 °C	-40 C	2.4 VDC	86 mA	General Purpose	0.187 in 4.7 mm	Plug In Quick Connect	12 A	Silver Nickel (AgNi)	9.6 VDC	12 VDC	6 ms	400 VAC	Socketable	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	4800 VA	Non Latching	DPDT (2 Form C)	9 ms

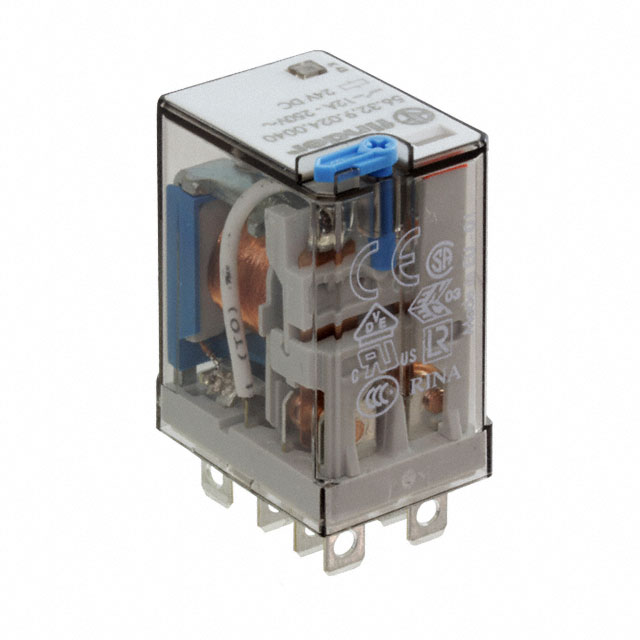

Finder Relays, Inc. 56.32.9.024.0040	600 Ohms	70 °C	-40 C	4.8 VDC	40 mA	General Purpose	0.187 in 4.7 mm	Plug In Quick Connect	12 A	Silver Nickel (AgNi)	19.2 VDC	24 VDC	6 ms	400 VAC	Socketable	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	4800 VA	Non Latching	DPDT (2 Form C)	9 ms	Mechanical Indicator Test Button
Finder Relays, Inc. 56.32.9.012.0080	140 Ohms	70 °C	-40 C	2.4 VDC	86 mA	General Purpose	0.187 in 4.7 mm	Plug In Quick Connect	12 A	Silver Nickel (AgNi)	9.6 VDC	12 VDC	6 ms	400 VAC	Socketable	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	4800 VA	Non Latching	DPDT (2 Form C)	9 ms	Diode Lighted Indicator
Finder Relays, Inc. 56.32.9.024.0090	600 Ohms	70 °C	-40 C	4.8 VDC	40 mA	General Purpose	0.187 in 4.7 mm	Plug In Quick Connect	12 A	Silver Nickel (AgNi)	19.2 VDC	24 VDC	6 ms	400 VAC	Socketable	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	4800 VA	Non Latching	DPDT (2 Form C)	9 ms	Diode Lighted Indicator Test Button
Finder Relays, Inc. 56.32.9.012.0040	140 Ohms	70 °C	-40 C	2.4 VDC	86 mA	General Purpose	0.187 in 4.7 mm	Plug In Quick Connect	12 A	Silver Nickel (AgNi)	9.6 VDC	12 VDC	6 ms	400 VAC	Socketable	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	4800 VA	Non Latching	DPDT (2 Form C)	9 ms	Mechanical Indicator Test Button
Finder Relays, Inc. 56.32.9.024.0094	600 Ohms	70 °C	-40 C	4.8 VDC	40 mA	General Purpose	0.187 in 4.7 mm	Plug In Quick Connect	12 A	Silver Nickel (AgNi)	19.2 VDC	24 VDC	6 ms	400 VAC	Socketable	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	4800 VA	Non Latching	DPDT (2 Form C)	9 ms	Diode Lighted Indicator Mechanical Indicator Test Button
Finder Relays, Inc. 56.32.9.125.0090	17.3 kOhms	70 °C	-40 C	25 VDC	7.2 mA	General Purpose	0.187 in 4.7 mm	Plug In Quick Connect	12 A	Silver Nickel (AgNi)	100 VDC	125 VDC	6 ms	400 VAC	Socketable	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	4800 VA	Non Latching	DPDT (2 Form C)	9 ms	Diode Lighted Indicator Test Button

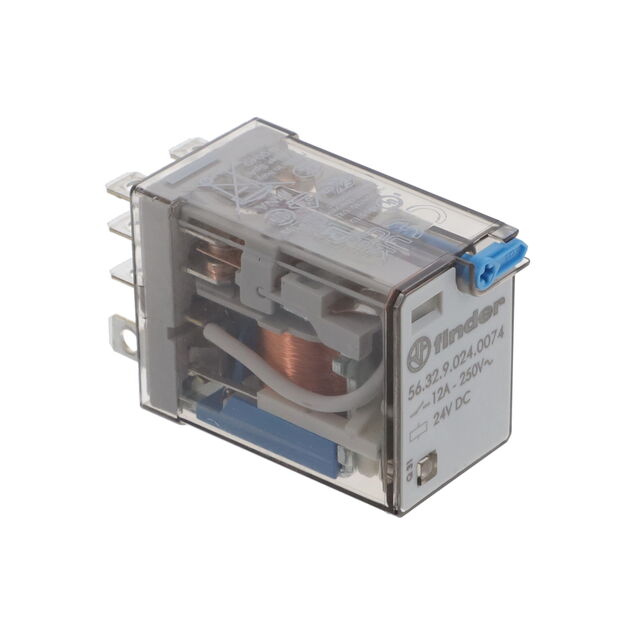

Finder Relays, Inc. 56.32.9.024.0074	600 Ohms	70 °C	-40 C	4.8 VDC	40 mA	General Purpose	0.187 in 4.7 mm	Plug In Quick Connect	12 A	Silver Nickel (AgNi)	19.2 VDC	24 VDC	6 ms	400 VAC	Socketable	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	4800 VA	Non Latching	DPDT (2 Form C)	9 ms
Finder Relays, Inc. 56.32.9.125.0080	17.3 kOhms	70 °C	-40 C	25 VDC	7.2 mA	General Purpose	0.187 in 4.7 mm	Plug In Quick Connect	12 A	Silver Nickel (AgNi)	100 VDC	125 VDC	6 ms	400 VAC	Socketable	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	4800 VA	Non Latching	DPDT (2 Form C)	9 ms	Diode Lighted Indicator
Finder Relays, Inc. 56.32.9.012.0070	140 Ohms	70 °C	-40 C	2.4 VDC	86 mA	General Purpose	0.187 in 4.7 mm	Plug In Quick Connect	12 A	Silver Nickel (AgNi)	9.6 VDC	12 VDC	6 ms	400 VAC	Socketable	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	4800 VA	Non Latching	DPDT (2 Form C)	9 ms	Lighted Indicator Test Button
