10090096 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
CONN D-SUB PLUG 9POS VERT SOLDER
| Part | Color | Voltage Rating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Features | Contact Type | Number of Rows [custom] | Shell Material, Finish | Contact Finish Thickness | Current Rating (Amps) | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Style | Mounting Type | Connector Type | Contact Finish | Termination | Number of Positions | Contact Material | Material Flammability Rating | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

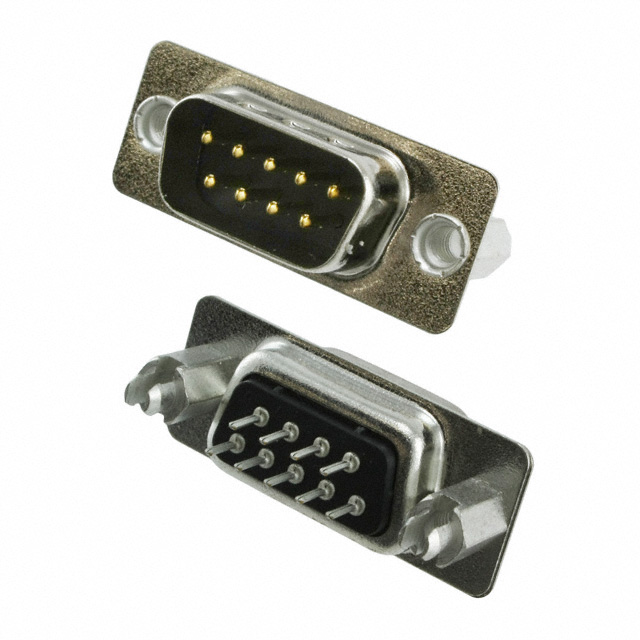

 Amphenol ICC (FCI) | Black | 250 V | Thermoplastic Glass Filled | -55 C | 105 ░C | Board Side (M3) | Board Lock Grounding Indents | Signal | 2 | Steel Tin-Nickel Plated | Flash | 5 A | 1 | DE E | D-Sub | Through Hole | Plug Male Pins | Gold | Solder | 9 | |||||

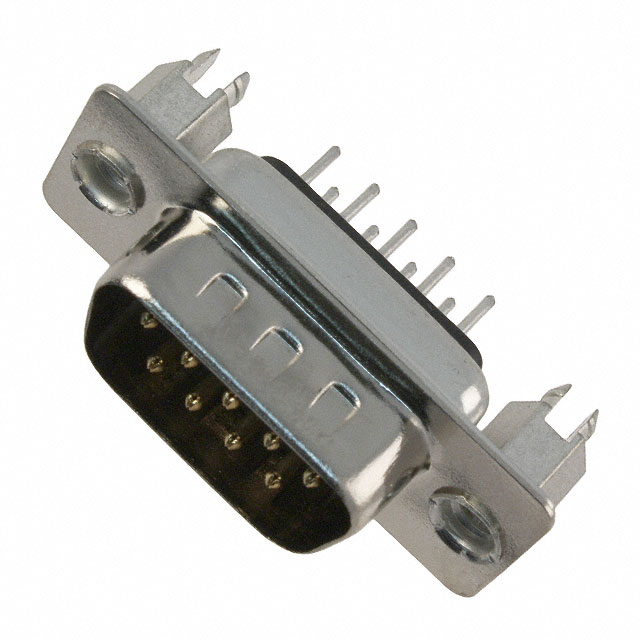

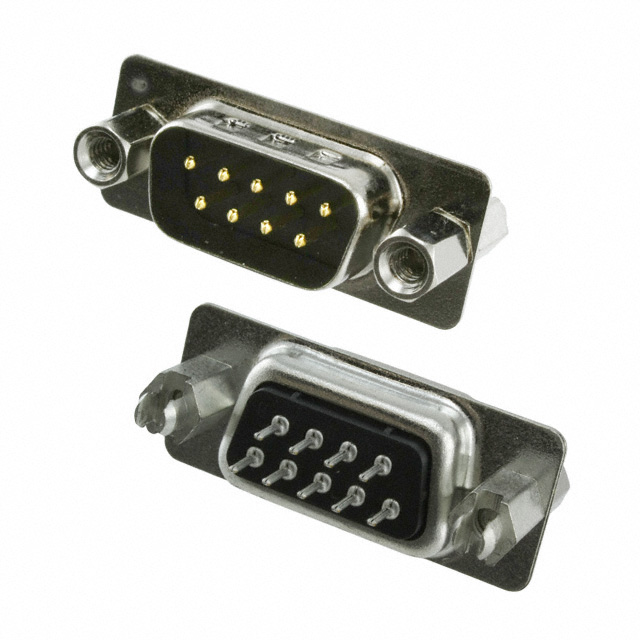

 Amphenol ICC (FCI) | Black | 250 V | Thermoplastic Glass Filled | -55 C | 105 ░C | Board Side (4-40) Mating Side Female Screwlock (4-40) | Board Lock Grounding Indents | Signal | 2 | Nickel Plated Steel | Flash | 5 A | 1 | DE E | D-Sub | Through Hole | Plug Male Pins | Gold | Solder | 9 | Copper Alloy | UL94 V-0 | |||

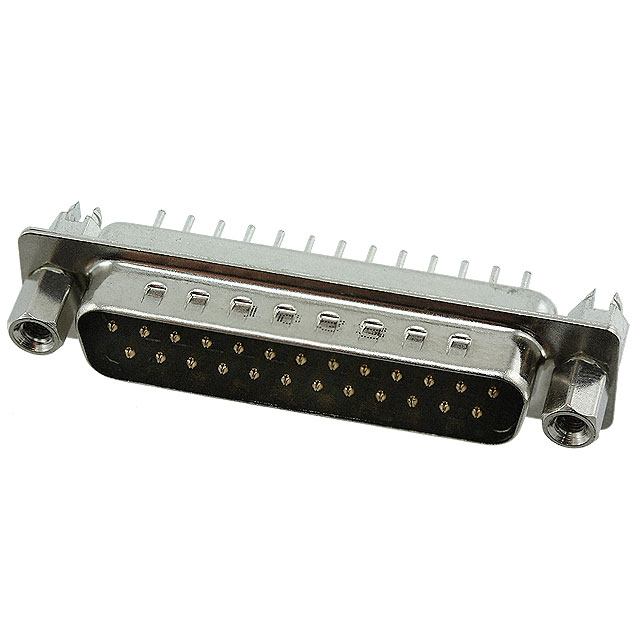

 Amphenol ICC (FCI) | Black | 250 V | Thermoplastic Glass Filled | -55 C | 105 ░C | Board Side (4-40) Mating Side Female Screwlock (4-40) | Board Lock Grounding Indents | Signal | 2 | Steel Tin-Nickel Plated | Flash | 5 A | D-Sub | Through Hole | Plug Male Pins | Gold | Solder | 25 | Copper Alloy | UL94 V-0 | B DB | 3 | |||
 Amphenol ICC (FCI) | Black | 250 V | Thermoplastic Glass Filled | -55 C | 105 ░C | Board Side (4-40) | Board Lock Grounding Indents | Signal | 2 | Steel Tin-Nickel Plated | Flash | 5 A | 1 | DE E | D-Sub | Through Hole | Plug Male Pins | Gold | Solder | 9 | Copper Alloy | UL94 V-0 | |||

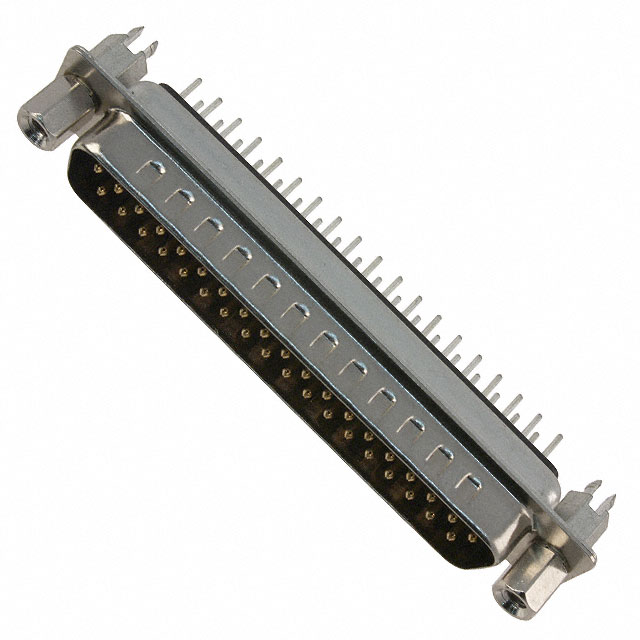

 Amphenol ICC (FCI) | Black | 250 V | Thermoplastic Glass Filled | -55 C | 105 ░C | Board Side (4-40) | Board Lock Grounding Indents | Signal | 2 | Nickel Plated Steel | Flash | 5 A | D-Sub | Through Hole | Plug Male Pins | Gold | Solder | 37 | Copper Alloy | UL94 V-0 | DC C | 4 | |||
 Amphenol ICC (FCI) | Black | 250 V | Thermoplastic Glass Filled | -55 C | 105 ░C | Board Side (4-40) Mating Side Female Screwlock (4-40) | Board Lock Grounding Indents | Signal | 2 | Steel Tin-Nickel Plated | Flash | 5 A | D-Sub | Through Hole | Plug Male Pins | Gold | Solder | 37 | Copper Alloy | UL94 V-0 | DC C | 4 | |||

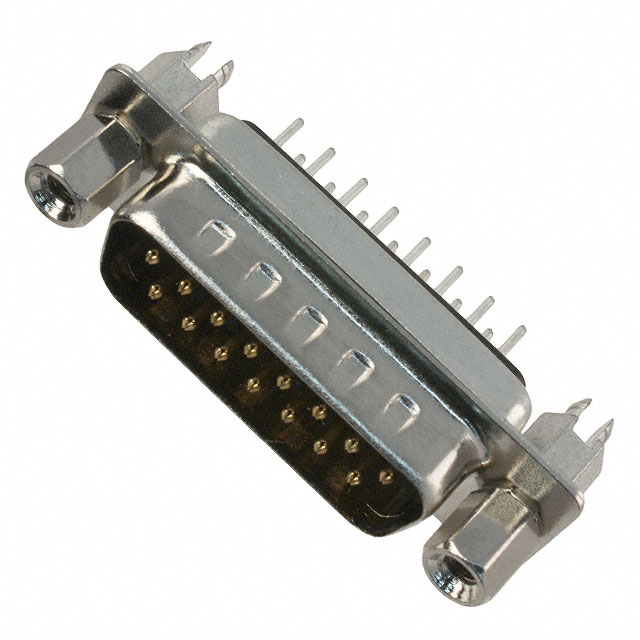

Amphenol ICC (FCI) | Black | 250 V | Thermoplastic Glass Filled | -55 C | 105 ░C | Board Side (4-40) | Board Lock Grounding Indents | Signal | 2 | Steel Tin-Nickel Plated | Flash | 5 A | D-Sub | Through Hole | Plug Male Pins | Gold | Solder | 15 | Copper Alloy | UL94 V-0 | 2 | ||||
 Amphenol ICC (FCI) | Black | 250 V | Thermoplastic Glass Filled | -55 C | 105 ░C | Board Side (4-40) Mating Side Female Screwlock (4-40) | Board Lock Grounding Indents | Signal | 2 | Steel Tin-Nickel Plated | Flash | 5 A | D-Sub | Through Hole | Plug Male Pins | Gold | Solder | 15 | Copper Alloy | UL94 V-0 | 2 | ||||
Amphenol ICC (FCI) | Black | 250 V | Thermoplastic Glass Filled | -55 C | 105 ░C | Board Side (4-40) | Board Lock Grounding Indents | Signal | 2 | Steel Tin-Nickel Plated | Flash | 5 A | D-Sub | Through Hole | Plug Male Pins | Gold | Solder | 25 | Copper Alloy | UL94 V-0 | B DB | 3 |
