6TPB Series

Catalog

TANTALUM POLYMER CAPACITOR, 220 ΜF, ± 20%, 6.3 V, D3L, 0.04 OHM, 2917 [7343 METRIC]

Part	Features	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Voltage - Rated	Type	Tolerance	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	ESR (Equivalent Series Resistance)	Manufacturer Size Code	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case

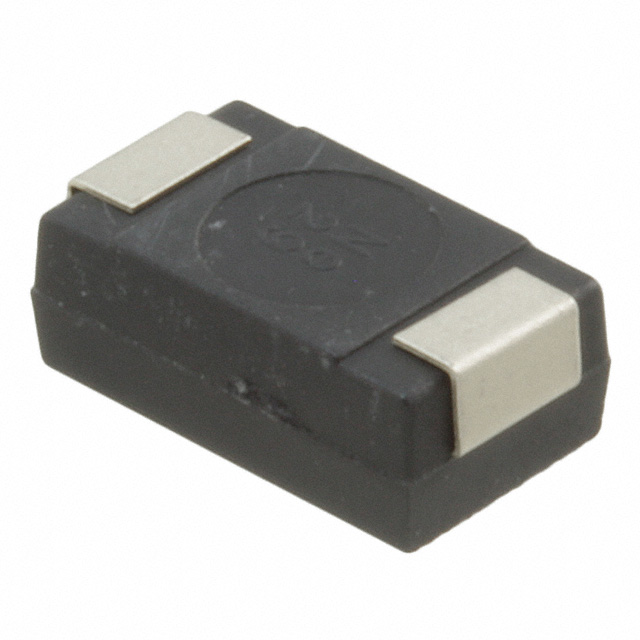

Panasonic Electronic Components 6TPB220ML	General Purpose	220 µF	0.118 "	3 mm	2917 (7343 Metric)	6.3 VDC	Molded	20 %	Surface Mount	-55 C	105 ░C	40 mOhm	D3L	0.169 "	7.3 mm	0.287 "	4.3 mm
Panasonic Electronic Components 6TPB330MAL	General Purpose	330 µF	0.118 "	3 mm	2917 (7343 Metric)	6.3 VDC	Molded	20 %	Surface Mount	-55 C	105 ░C	40 mOhm	D3L	0.169 "	7.3 mm	0.287 "	4.3 mm

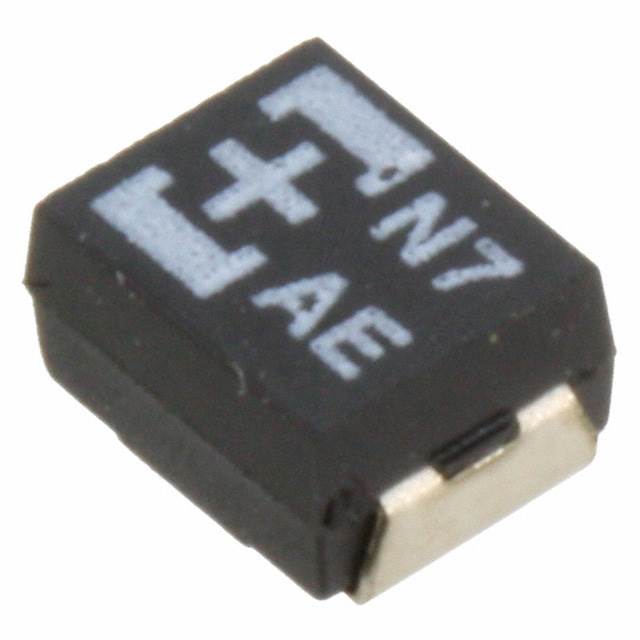

Panasonic Electronic Components 6TPB68M	General Purpose	68 µF			1411	6.3 VDC	Molded	20 %	Surface Mount	-55 C	105 ░C	70 mOhm	B2	0.11 "	3.5 mm	0.138 in	2.8 mm	0.079 in	2 mm	3528 Metric
