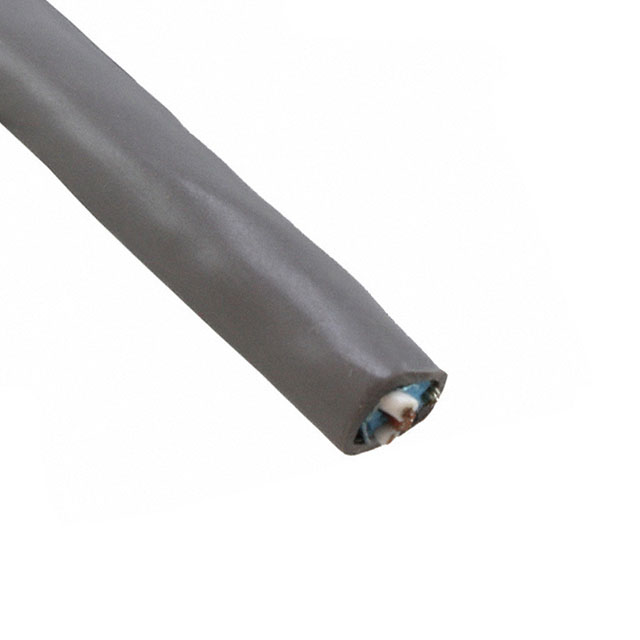

5482C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 4COND 22AWG BLK 1000'
| Part | Shield Material | Shield Coverage | Operating Temperature [Min] | Operating Temperature [Max] | Number of Conductors | Jacket Color | Conductor Insulation | Usage | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Conductor Material | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Shield Type | Wire Gauge | Features | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | -35 °C | 105 ░C | 4 | Black | Poly-Vinyl Chloride (PVC) | Communication Control | 304.8 m | 1000 ft | 0.813 mm | 0.032 in | ISO 10993 UL Style 2464 | Copper Tinned | Multi-Pair | 0.236 " | 5.99 mm | 300 VDC | Foil | 22 AWG | Biological Compatibility Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | 28 AWG | 7 | ||
 ALPHA WIRE | Aluminum | 100 % | -35 °C | 105 ░C | 4 | Slate | Poly-Vinyl Chloride (PVC) | Communication Control | 0.813 mm | 0.032 in | ISO 10993 UL Style 2464 | Copper Tinned | Multi-Pair | 0.236 " | 5.99 mm | 300 VDC | Foil | 22 AWG | Biological Compatibility Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | 28 AWG | 7 | 100 ft | 30.5 m | ||
ALPHA WIRE | Aluminum | 100 % | -35 °C | 105 ░C | 4 | Slate | Poly-Vinyl Chloride (PVC) | Communication Control | 304.8 m | 1000 ft | 0.813 mm | 0.032 in | ISO 10993 UL Style 2464 | Copper Tinned | Multi-Pair | 0.236 " | 5.99 mm | 300 VDC | Foil | 22 AWG | Biological Compatibility Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | 28 AWG | 7 | ||
ALPHA WIRE | Aluminum | 100 % | -35 °C | 105 ░C | 4 | Slate | Poly-Vinyl Chloride (PVC) | Communication Control | 152.4 m | 500 ft | 0.813 mm | 0.032 in | ISO 10993 UL Style 2464 | Copper Tinned | Multi-Pair | 0.236 " | 5.99 mm | 300 VDC | Foil | 22 AWG | Biological Compatibility Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | 28 AWG | 7 |
