307-068 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 68POS 0.156

...

Part	Termination Rows [custom]	Material - Insulation	Number of Rows [custom]	Read Out	Contact Finish Thickness	Contact Finish Thickness	Termination	Flange Feature	Gender	Number of Positions	Contact Type	Mounting Type	Color	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Number of Positions/Bay/Row	Features	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Contact Finish	Flange Feature [diameter]	Flange Feature [diameter]

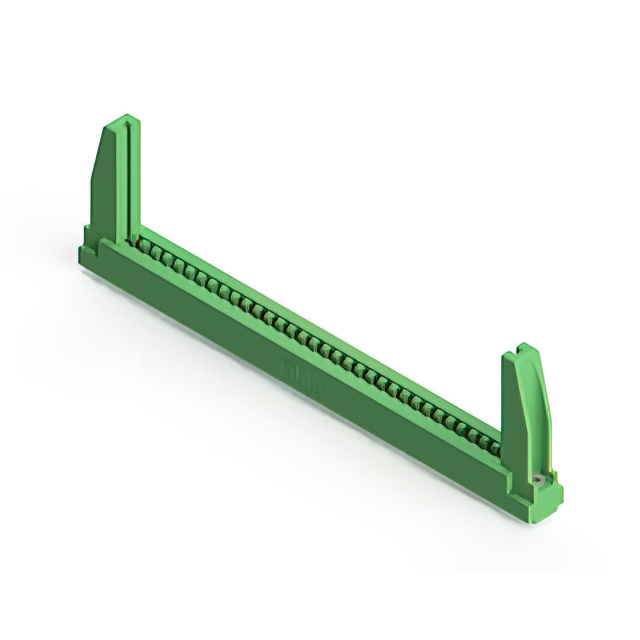

EDAC Inc. 307-068-524-278	2	Polyester Thermoplastic	2	Dual	0.25 Ám	10 Áin	Solder	4-40 Flush Mount Threaded Insert Top Opening	Female	68 positions	Semi Bellows	Through Hole	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	34	Card Guides	3.96 mm	0.156 in	-40 C	105 ░C	Non Specified - Dual Edge	Gold

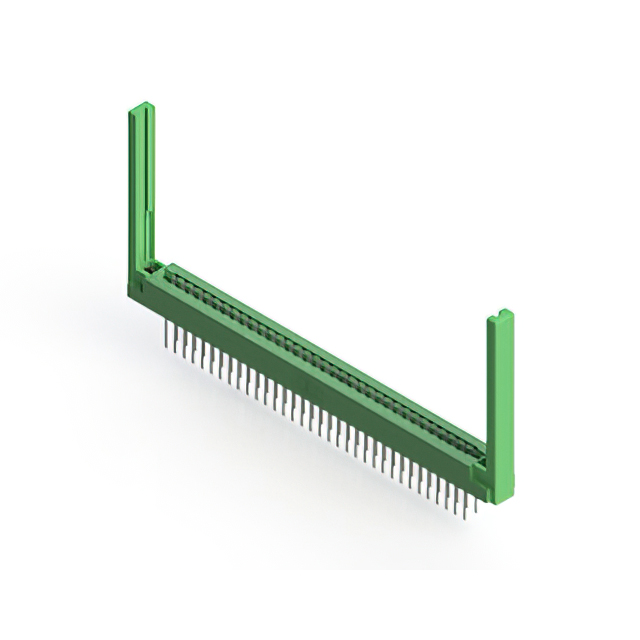

EDAC Inc. 307-068-442-268	2	Polyester Thermoplastic	2	Dual			Wire Wrap	4-40 Flush Mount Threaded Insert Top Opening	Female	68 positions	Semi Bellows	Through Hole	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	34	Card Guides	3.96 mm	0.156 in	-40 C	105 ░C	Non Specified - Dual Edge	Tin

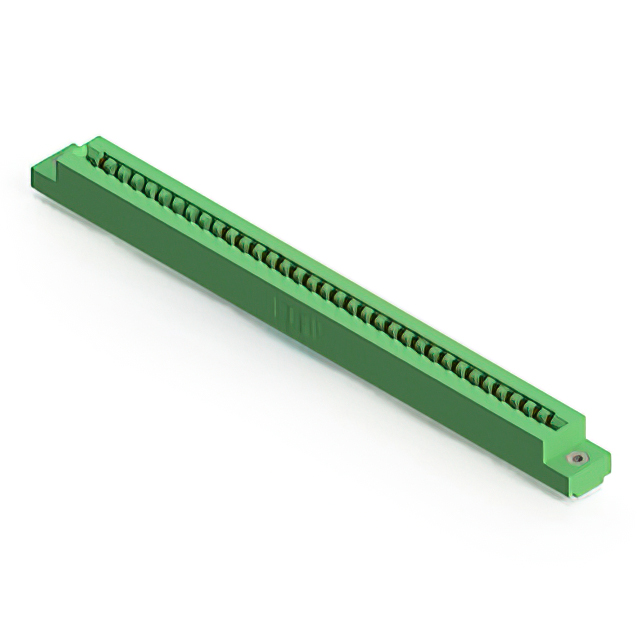

EDAC Inc. 307-068-556-207	2	Polyester Thermoplastic	2	Dual	0.25 Ám	10 Áin	Solder	Flush Mount M3 Threaded Insert Top Opening	Female	68 positions	Semi Bellows	Board Edge Straddle Mount	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	34	Card Extender	3.96 mm	0.156 in	-40 C	105 ░C	Non Specified - Dual Edge	Gold

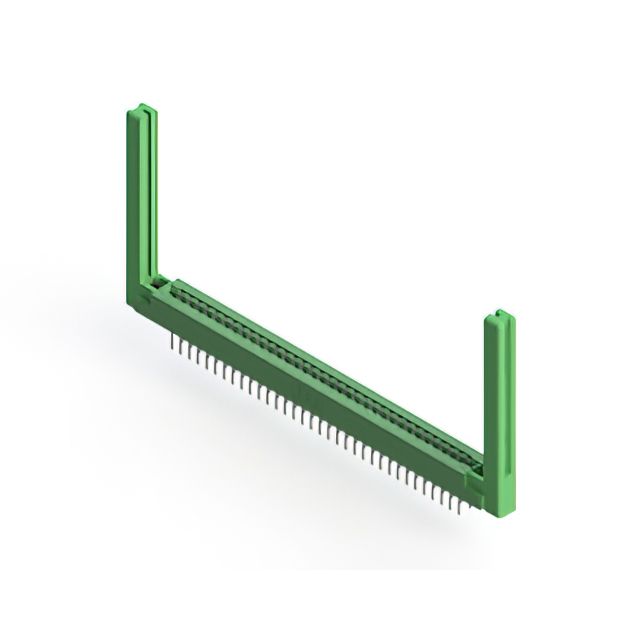

EDAC Inc. 307-068-422-258	2	Polyester Thermoplastic	2	Dual			Solder	4-40 Flush Mount Threaded Insert Top Opening	Female	68 positions	Semi Bellows	Through Hole	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	34	Card Guides	3.96 mm	0.156 in	-40 C	105 ░C	Non Specified - Dual Edge	Tin
EDAC Inc. 307-068-420-203	2	Polyester Thermoplastic	2	Dual			Solder	Floating Bobbin Flush Mount	Female	68 positions	Semi Bellows	Through Hole	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	34		3.96 mm	0.156 in	-40 C	105 ░C	Non Specified - Dual Edge	Tin	0.116 "	2.95 mm

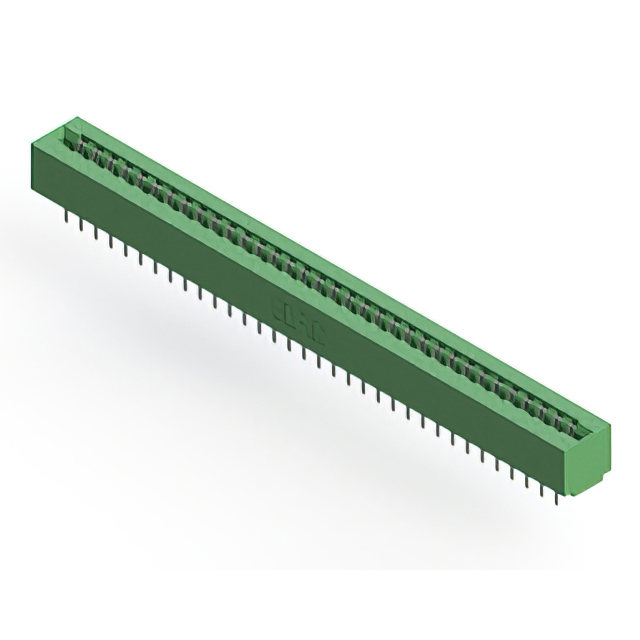

EDAC Inc. 307-068-420-201	2	Polyester Thermoplastic	2	Dual			Solder		Female	68 positions	Semi Bellows	Through Hole	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	34		3.96 mm	0.156 in	-40 C	105 ░C	Non Specified - Dual Edge	Tin

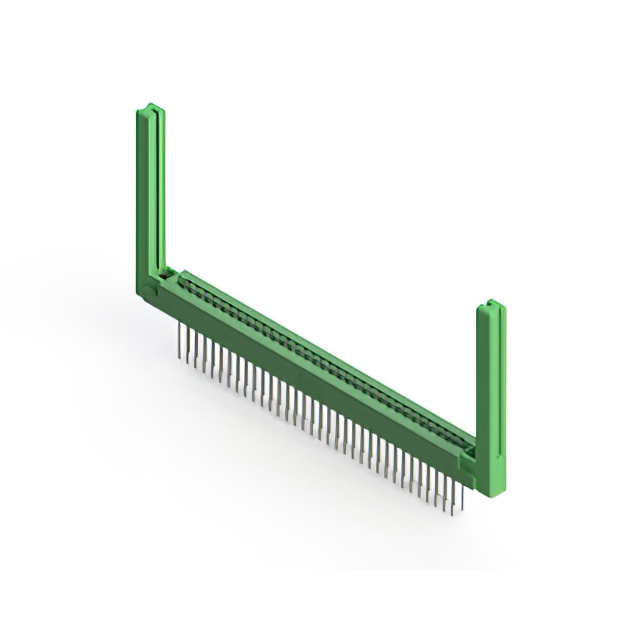

EDAC Inc. 307-068-440-258	2	Polyester Thermoplastic	2	Dual			Wire Wrap	4-40 Flush Mount Threaded Insert Top Opening	Female	68 positions	Semi Bellows	Through Hole	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	34	Card Guides	3.96 mm	0.156 in	-40 C	105 ░C	Non Specified - Dual Edge	Tin
EDAC Inc. 307-068-524-212	2	Polyester Thermoplastic	2	Dual	0.25 Ám	10 Áin	Solder	Flush Mount Side Opening Unthreaded	Female	68 positions	Semi Bellows	Through Hole	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	34		3.96 mm	0.156 in	-40 C	105 ░C	Non Specified - Dual Edge	Gold	0.128 "	3.25 mm

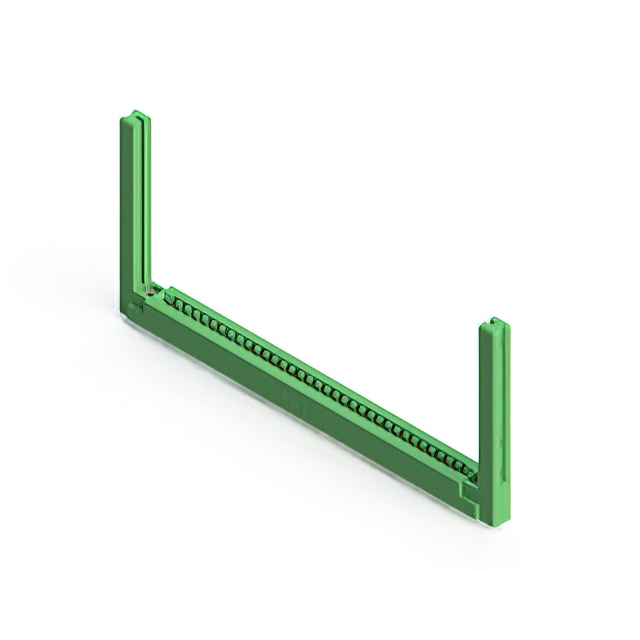

EDAC Inc. 307-068-559-258	2	Polyester Thermoplastic	2	Dual	0.25 Ám	10 Áin	Solder	4-40 Flush Mount Threaded Insert Top Opening	Female	68 positions	Semi Bellows	Right Angle Through Hole	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	34	Card Guides	3.96 mm	0.156 in	-40 C	105 ░C	Non Specified - Dual Edge	Gold
EDAC Inc. 307-068-456-212	2	Polyester Thermoplastic	2	Dual			Solder	Flush Mount Side Opening Unthreaded	Female	68 positions	Semi Bellows	Board Edge Straddle Mount	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	34		3.96 mm	0.156 in	-40 C	105 ░C	Non Specified - Dual Edge	Tin	0.128 "	3.25 mm
