324075 Series

Catalog

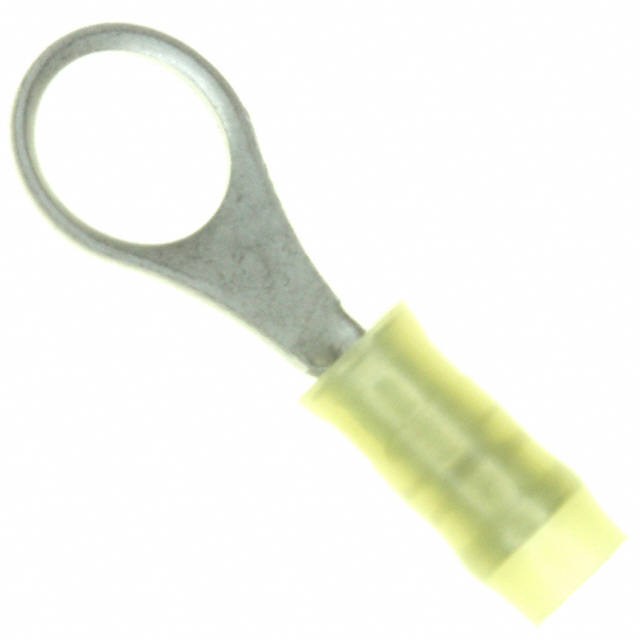

TERMINAL,PIDG R 26-22 10 ROHS COMPLIANT: YES

Part	Insulation	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Color	Material - Insulation	Contact Finish	Length - Overall [x]	Length - Overall [x]	Features	Mounting Type	Contact Material	Termination	Stud/Tab Size	Terminal Type	Thickness [custom]	Thickness [custom]	Wire Gauge [Min]	Wire Gauge [Max]	Width - Outer Edges [y]	Width - Outer Edges [y]
TE Connectivity Raychem Cable Protection 2-324075-1	Insulated	0.082 "	2.08 mm	0.05 in	1.27 mm	Yellow	Nylon Polyamide (PA)	Tin	18.8 mm	0.74 in	Serrated Termination	Free Hanging (In-Line)	Copper	Crimp	10 Stud	Circular	0.46 mm	0.018 in	22 AWG	26 AWG	0.25 "	6.35 mm
TE Connectivity Raychem Cable Protection 8-324075-1	Insulated	0.082 "	2.08 mm	0.05 in	1.27 mm	Yellow	Nylon Polyamide (PA)	Tin	18.8 mm	0.74 in	Serrated Termination	Free Hanging (In-Line)	Copper	Crimp	10 Stud	Circular	0.46 mm	0.018 in	22 AWG	26 AWG	0.25 "	6.35 mm
