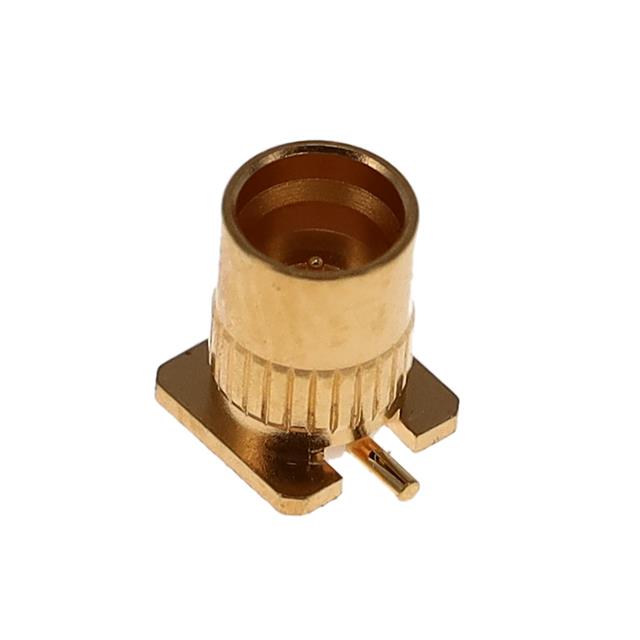

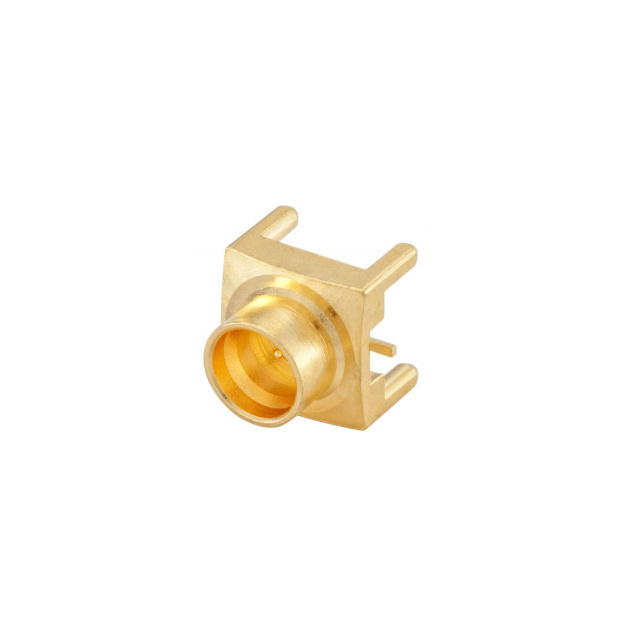

19S10A Series
Manufacturer: Rosenberger
Beta
⌘K
STRAIGHT PLUG PCB
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Voltage Rating | Center Contact Plating | Mating Cycles | Body Finish | Dielectric Material | Connector Type | Center Contact Material | Features | Fastening Type | Frequency - Max [Max] | Shield Termination | Mounting Type | Number of Ports | Housing Color | Contact Termination | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 155 C | -65 ░C | Brass | 335 V | Gold | 500 | Gold | Polytetrafluoroethylene (PTFE) | Plug Male Pin | Brass | Limited Detent | Snap-On | 26.5 GHz | Solder | Surface Mount | 1 | Gold | Solder | 50 Ohms |
