2003-7551 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

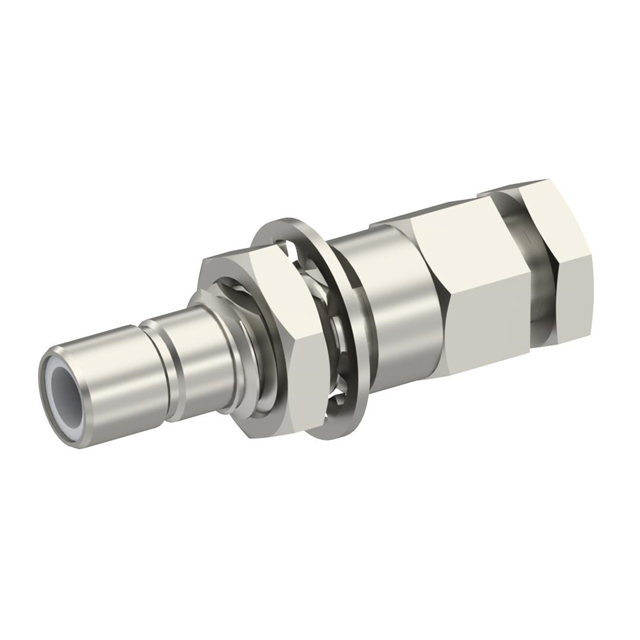

SMB / STRAIGHT JACK MALE CLAMP T
| Part | Mating Cycles | Body Finish | Insertion Loss | Dielectric Material | Body Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Impedance | Contact Termination | Center Contact Material | Mounting Feature | Number of Ports | Mounting Type | Connector Type | Housing Color | Shield Termination | Cable Group | Frequency - Max [Max] | Fastening Type | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | Nickel | 0.3 dB | Polytetrafluoroethylene (PTFE) | Brass | Gold | -65 ░C | 165 °C | 335 V | 50 Ohms | Crimp | Brass | Bulkhead - Front Side Nut | 1 | Panel Mount | Jack Male Pin | Silver | Clamp | 188 316 RG-174 | 4 GHz | Snap-On | SMB |
