CNS658 Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K

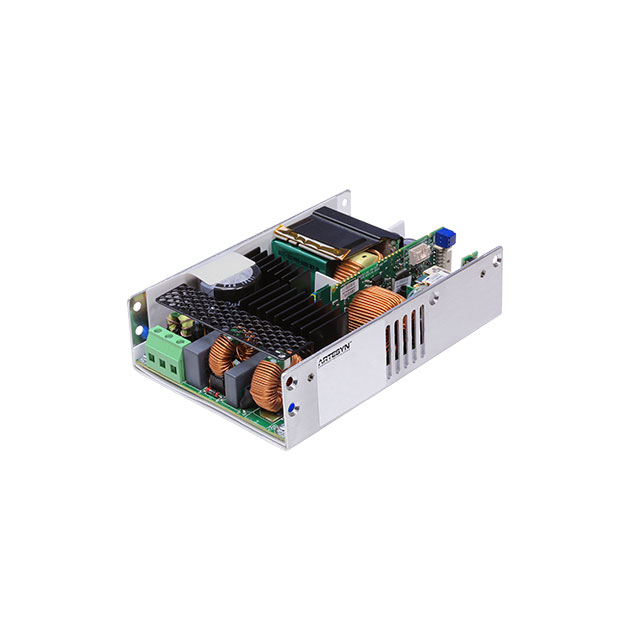

CNS SERIES 48V OUTPUT, 650W
| Part | Minimum Load Required | Number of Outputs | Voltage - Isolation | Mounting Type | Current - Output 1 | Voltage - Input [Max] | Voltage - Input [Min] | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Type | Voltage - Output 1 | Applications | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 1 | 4000 V | Chassis Mount | 8.3 A | 264 VAC | 90 VAC | CE | 80 ¯C | -20 °C | 400 W 650 W | Open Frame | 48 V | ITE (Commercial) Medical | 6 " | 39.2 mm | 1.54 in | 101.6 mm | 152.4 mm | 4 " | Adjustable Output Load Sharing PFC PMBus™ Interface Remote On/Off Remote Sense Standby Output Universal Input |
