45220 Series
Manufacturer: 3M (TC)
Beta
⌘K
PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 1.27 MM, 2 ROWS, 20 CONTACTS, THROUGH HOLE STRAIGHT
| Part | Contact Material | Connector Type | Row Spacing - Mating | Row Spacing - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Rows | Material Flammability Rating | Contact Finish - Post | Operating Temperature [Max] | Operating Temperature [Min] | Contact Length - Post | Contact Length - Post | Pitch - Mating | Pitch - Mating | Mated Stacking Heights | Number of Positions Loaded | Contact Finish Thickness - Mating | Number of Positions | Contact Shape | Insulation Height | Insulation Height | Features | Fastening Type | Contact Finish - Mating | Style | Termination | Shrouding | Insulation Material | Contact Type | Mounting Type | Voltage Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

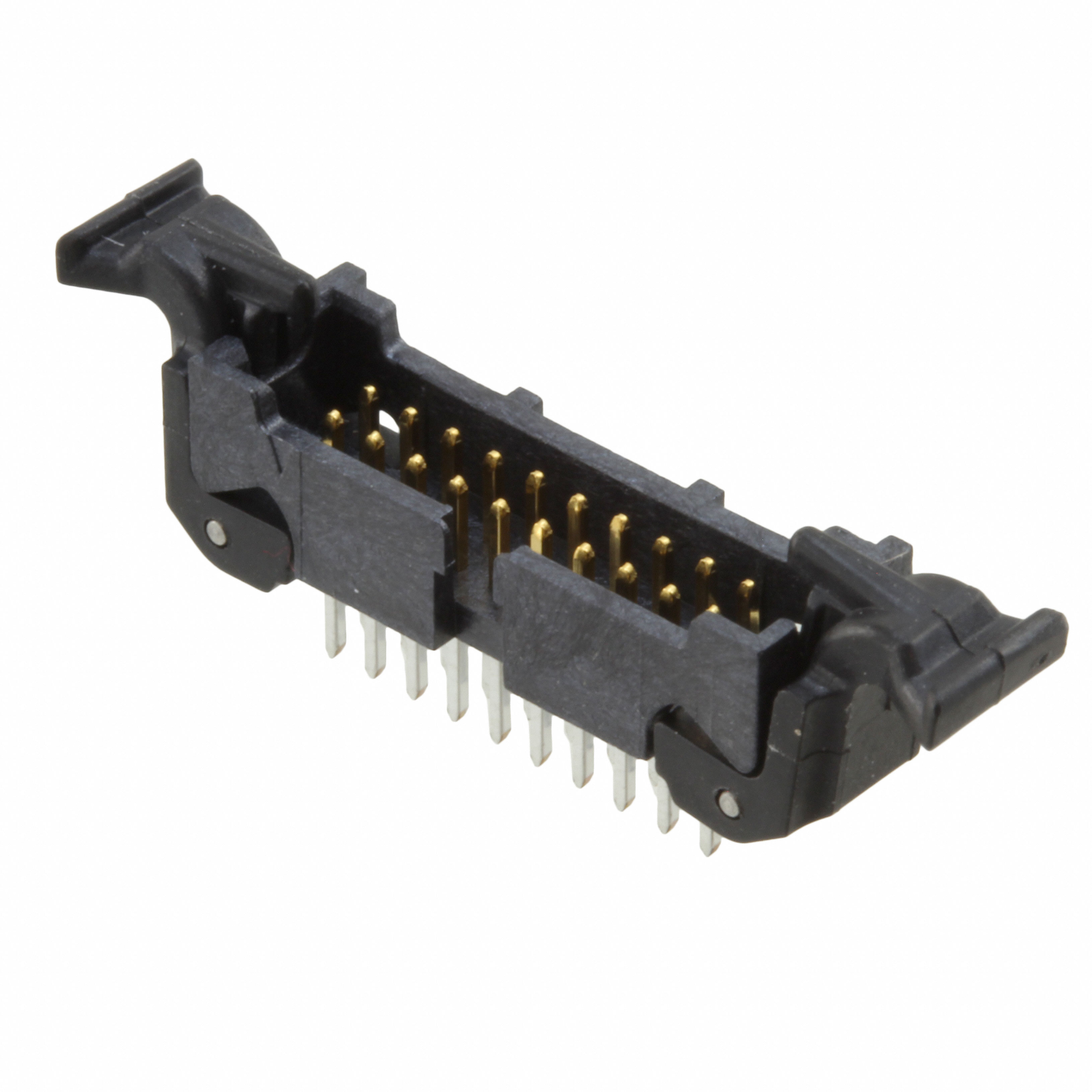

 3M (TC) | Copper Alloy | Header | 0.05 in | 1.27 mm | 2.54 µm | 100 µin | 2 | UL94 V-0 | Tin | 125 °C | -65 ░C | 0.094 in | 2.4 mm | 0.05 in | 1.27 mm | 5.84 mm 6.6 mm 7.21 mm 8.13 mm | All | Flash | 20 | Square | 5.65 mm | 0.222 " | Keying Slot | Latch Lock/Eject Hooks Short | Gold | Board to Cable/Wire | Solder | Shrouded - 4 Wall | Liquid Crystal Polymer (LCP) | Male Pin | Through Hole | 125 VDC | ||
 3M (TC) | Copper Alloy | Header | 0.05 in | 1.27 mm | 5.08 µm | 200 µin | 2 | UL94 V-0 | Tin | 125 °C | -65 ░C | 0.094 in | 2.4 mm | 0.05 in | 1.27 mm | 5.84 mm 6.6 mm 7.21 mm 8.13 mm | All | 20 | Square | 5.65 mm | 0.222 " | Keying Slot | Latch Lock/Eject Hooks Short | Gold | Board to Cable/Wire | Solder | Shrouded - 4 Wall | Liquid Crystal Polymer (LCP) | Male Pin | Through Hole | 125 VDC | 30 Áin | 0.76 Ám | |

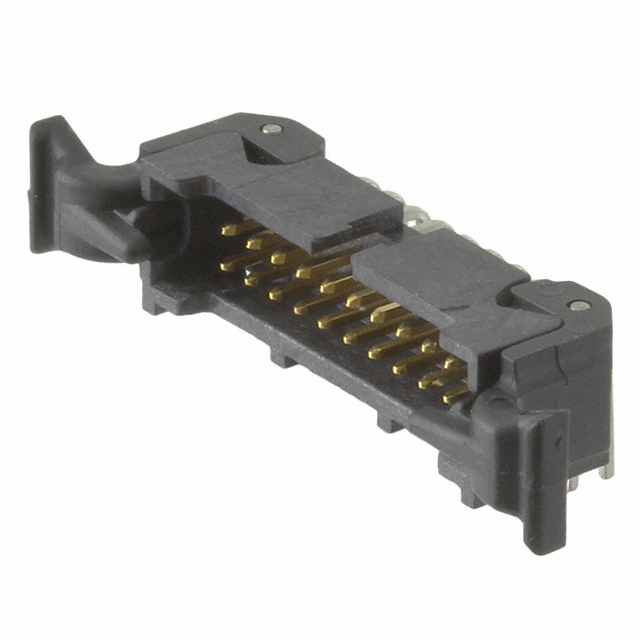

 3M (TC) | Copper Alloy | Header | 0.05 in | 1.27 mm | 5.08 µm | 200 µin | 2 | UL94 V-0 | Tin | 125 °C | -65 ░C | 0.094 in | 2.4 mm | 0.05 in | 1.27 mm | All | 20 | Square | 5.33 mm | 0.21 in | Keying Slot | Latch Lock/Eject Hooks Short | Gold | Board to Cable/Wire | Solder | Shrouded - 4 Wall | Liquid Crystal Polymer (LCP) | Male Pin | Through Hole Right Angle | 125 VDC | 30 Áin | 0.76 Ám | ||
3M (TC) | Copper Alloy | Header | 0.05 in | 1.27 mm | 2.54 µm | 100 µin | 2 | UL94 V-0 | Tin | 125 °C | -65 ░C | 0.094 in | 2.4 mm | 0.05 in | 1.27 mm | All | Flash | 20 | Square | 5.33 mm | 0.21 in | Keying Slot | Latch Lock/Eject Hooks Short | Gold | Board to Cable/Wire | Solder | Shrouded - 4 Wall | Liquid Crystal Polymer (LCP) | Male Pin | Through Hole Right Angle | 125 VDC | |||
3M (TC) | Copper Alloy | Header | 0.05 in | 1.27 mm | 2.54 µm | 100 µin | 2 | UL94 V-0 | Tin | 125 °C | -65 ░C | 0.05 in | 1.27 mm | 5.84 mm 6.6 mm 7.21 mm 8.13 mm | All | Flash | 20 | Square | 5.65 mm | 0.222 " | Keying Slot Pick and Place | Latch Lock/Eject Hooks Short | Gold | Board to Cable/Wire | Solder | Shrouded - 4 Wall | Liquid Crystal Polymer (LCP) | Male Pin | Surface Mount | 125 VDC |
