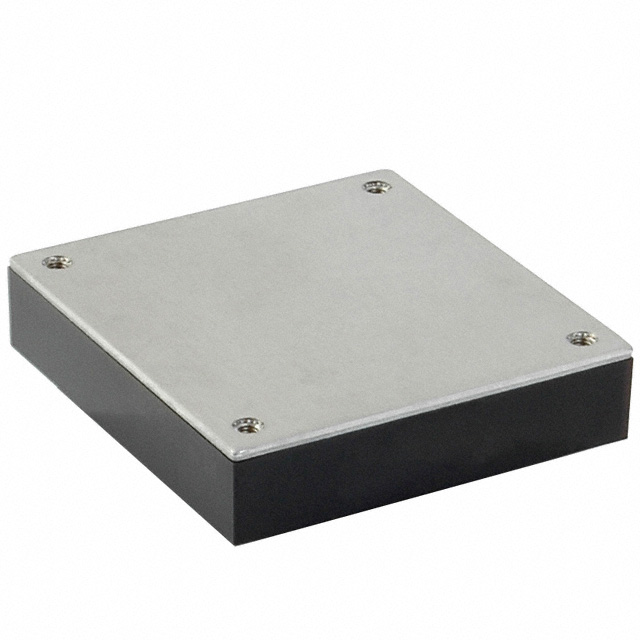

VHB150W Series

Manufacturer: CUI Inc.

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE DC-DC ISOLATED, 150 W, 18-75 VDC INPUT, 15 VDC, 10 A, SINGLE OUTPUT, DIP

Part	Efficiency	Voltage - Input (Max) [Max]	Type	Mounting Type	Voltage - Isolation	Voltage - Output 1	Standard Number	Features	Number of Outputs	Package / Case	Voltage - Input (Min) [Min]	Applications	Control Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Approval Agency	Power (Watts)	Supplier Device Package	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]
CUI Inc. VHB150W-Q48-S15	90 %	75 V	Isolated Module	Through Hole	1.5 kV	15 V	55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3	OCP OTP OVP Remote On/Off SCP UVLO	1	9-DIP Module 1/2 Brick	18 V	ITE (Commercial)	Active High Enable	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	EN UL	150 W	Half Brick	10 A	-40 C	100 °C
CUI Inc. VHB150W-Q48-S24	89 %	75 V	Isolated Module	Through Hole	1.5 kV	24 V	55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3	OCP OTP OVP Remote On/Off SCP UVLO	1	9-DIP Module 1/2 Brick	18 V	ITE (Commercial)	Active High Enable	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	EN UL	150 W	Half Brick	6.5 A	-40 C	100 °C
CUI Inc. VHB150W-Q24-S48	84 %	36 V	Isolated Module	Through Hole	1.5 kV	48 V	55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3	Remote On/Off UVLO	1	9-DIP Module 1/2 Brick	9 V	ITE (Commercial)	Active High Enable	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	EN UL	150 W	Half Brick	3.12 A	-40 C	100 °C
CUI Inc. VHB150W-Q48-S28	88 %	75 V	Isolated Module	Through Hole	1.5 kV	28 V	55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3	OCP OTP OVP Remote On/Off SCP UVLO	1	9-DIP Module 1/2 Brick	18 V	ITE (Commercial)	Active High Enable	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	EN UL	150 W	Half Brick	5.4 A	-40 C	100 °C
CUI Inc. VHB150W-Q24-S24	88 %	36 V	Isolated Module	Through Hole	1.5 kV	24 V	55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3	OCP OTP OVP Remote On/Off SCP UVLO	1	9-DIP Module 1/2 Brick	9 V	ITE (Commercial)	Active High Enable	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	EN UL	150 W	Half Brick	6.5 A	-40 C	100 °C
CUI Inc. VHB150W-Q24-S12	88 %	36 V	Isolated Module	Through Hole	1.5 kV	12 V	55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3	OCP OTP OVP Remote On/Off SCP UVLO	1	9-DIP Module 1/2 Brick	9 V	ITE (Commercial)	Active High Enable	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	EN UL	150 W	Half Brick	12.5 A	-40 C	100 °C
CUI Inc. VHB150W-Q24-S3R3	85 %	36 V	Isolated Module	Through Hole	1.5 kV	3.3 V	55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3	OCP OTP OVP Remote On/Off SCP	1	9-DIP Module 1/2 Brick	9 V	ITE (Commercial)	Active High Enable	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	EN UL	99 W	Half Brick	30 A	-40 C	100 °C
CUI Inc. VHB150W-Q48-S48	87 %	75 V	Isolated Module	Through Hole	1.5 kV	48 V	55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3	Remote On/Off UVLO	1	9-DIP Module 1/2 Brick	18 V	ITE (Commercial)	Active High Enable	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	EN UL	150 W	Half Brick	3.12 A	-40 C	100 °C
CUI Inc. VHB150W-Q24-S28	87 %	36 V	Isolated Module	Through Hole	1.5 kV	28 V	55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3	OCP OTP OVP Remote On/Off SCP UVLO	1	9-DIP Module 1/2 Brick	9 V	ITE (Commercial)	Active High Enable	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	EN UL	150 W	Half Brick	5.4 A	-40 C	100 °C
