3059 Series

Catalog

TRIMMER RESISTORS - THROUGH HOLE 1 1/4" RECT MT CERMT TRIMMER

Part	Termination Style	Resistive Material	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Adjustment Type	Resistance	Temperature Coefficient	Number of Turns	Tolerance	Power (Watts)
Bourns Inc. 3059P-1-754LF	PC Pins	Cermet	Chassis Mount	0.315 in	4.83 mm	0.19 in	8 mm	Side Adjustment	750000 Ohms	100 ppm/°C	22	10 %	1 W
Bourns Inc. 3059Y-1-105LF	PC Pins	Cermet	Chassis Mount	0.315 in	4.83 mm	0.19 in	8 mm	Side Adjustment	1 MOhms	100 ppm/°C	22	10 %	1 W
Bourns Inc. 3059P-1-203MLF	PC Pins	Cermet	Panel Mount Through Hole	0.315 in	4.83 mm	0.19 in	8 mm	Side Adjustment	20 kOhms	100 ppm/°C	22	10 %	1 W
Bourns Inc. 3059Y-1-103MLF	PC Pins	Cermet	Panel Mount Through Hole	0.315 in	4.83 mm	0.19 in	8 mm	Side Adjustment	10000 Ohms	100 ppm/°C	22	10 %	1 W

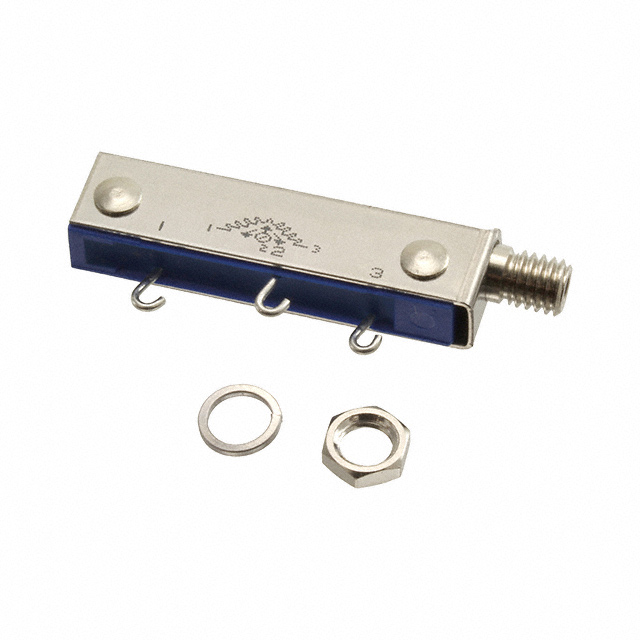

Bourns Inc. 3059J-1-203LF	Solder Hook	Cermet	Chassis Mount	0.315 in	4.83 mm	0.19 in	8 mm	Side Adjustment	20 kOhms	100 ppm/°C	22	10 %	1 W
Bourns Inc. 3059P-1-204LF	PC Pins	Cermet	Chassis Mount	0.315 in	4.83 mm	0.19 in	8 mm	Side Adjustment	200000 Ohms	100 ppm/°C	22	10 %	1 W
Bourns Inc. 3059Y-1-202	PC Pins	Cermet	Chassis Mount	0.315 in	4.83 mm	0.19 in	8 mm	Side Adjustment	2 kOhms	100 ppm/°C	22	10 %	1 W
Bourns Inc. 3059L-1-504MLF	Wire Leads	Cermet	Panel Mount Wire Leads	0.315 in	4.83 mm	0.19 in	8 mm	Side Adjustment		100 ppm/°C	22	10 %	1 W
Bourns Inc. 3059L-1-102M	Wire Leads	Cermet	Panel Mount Wire Leads	0.315 in	4.83 mm	0.19 in	8 mm	Side Adjustment	1000 Ohms	100 ppm/°C	22	10 %	1 W
Bourns Inc. 3059J-1-203MLF	Solder Hook	Cermet	Panel Mount	0.315 in	4.83 mm	0.19 in	8 mm	Side Adjustment	20 kOhms	100 ppm/°C	22	10 %	1 W
