GWCS8PM1.P Series

Catalog

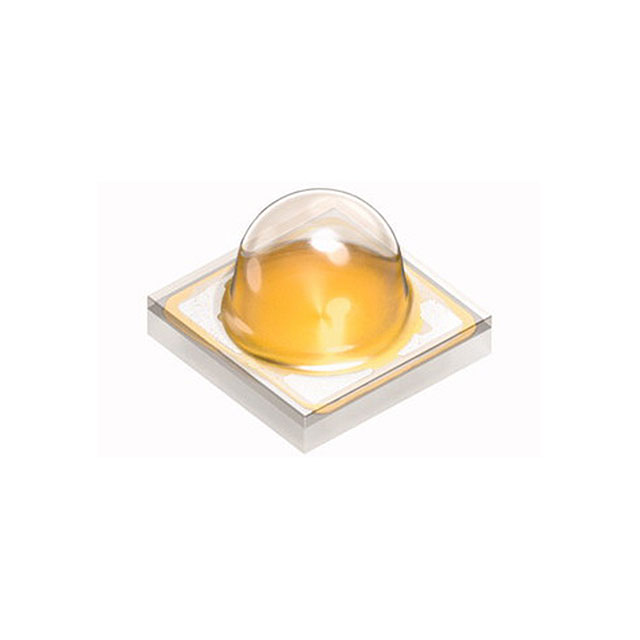

LED OSLON COOL WHITE 5000K SMD

Part	Thermal Resistance of Package	CCT (K)	CRI (Color Rendering Index)	Viewing Angle	Current - Test	Current - Max [Max]	Lumens/Watt @ Current - Test	Package / Case	Package / Case	Flux @ 85°C, Current - Test [Min]	Flux @ 85°C, Current - Test	Flux @ 85°C, Current - Test [Max]	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Color	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
ams-OSRAM USA INC. GW CS8PM1.PM-LRLT-XX53-1-350-R18	5.25 °C/W	5000 K	70	80 °	350 mA	1.3 A	147 lm/W	3030 Metric	1212	130 lm	147 lm	164 lm	2.85 V	SMD	Surface Mount	3 mm	0.118 in	3 mm	0.118 "	Cool White
ams-OSRAM USA INC. GW CS8PM1.PM-LRLT-A131-1-350-R18	5.25 °C/W	6500 K	70	80 °	350 mA	1.3 A	147 lm/W	3030 Metric	1212	130 lm	147 lm	164 lm	2.85 V	SMD	Surface Mount	3 mm	0.118 in	3 mm	0.118 "	Cool White
ams-OSRAM USA INC. GW CS8PM1.PM-LRLT-A636-1-350-R18	3.7 °C/W	3500 K	70	80 °	350 mA	1.3 A	147 lm/W	3030 Metric	1212	130 lm	147 lm	164 lm	2.85 V	SMD	Surface Mount	3 mm	0.118 in	3 mm	0.118 "	Warm White	2.3 mm	0.091 in
ams-OSRAM USA INC. GW CS8PM1.PM-LRLT-A737-1-350-R18	3.7 °C/W	3000 K	70	80 °	350 mA	1.3 A	147 lm/W	3030 Metric	1212	130 lm	147 lm	164 lm	2.85 V	SMD	Surface Mount	3 mm	0.118 in	3 mm	0.118 "	Warm White	2.3 mm	0.091 in
ams-OSRAM USA INC. GW CS8PM1.PM-LRLT-XX57-1-350-R18	5.25 °C/W	3000 K	70	80 °	350 mA	1.3 A	147 lm/W	3030 Metric	1212	130 lm	147 lm	164 lm	2.85 V	SMD	Surface Mount	3 mm	0.118 in	3 mm	0.118 "	Warm White
ams-OSRAM USA INC. GW CS8PM1.PM-LRLT-XX54-1-350-R18	5.25 °C/W		70	80 °	350 mA	1.3 A	147 lm/W	3030 Metric	1212	130 lm	147 lm	164 lm	2.85 V	SMD	Surface Mount	3 mm	0.118 in	3 mm	0.118 "	Neutral White
ams-OSRAM USA INC. GW CS8PM1.PM-LRLT-A232-1-350-R18	5.25 °C/W	5700 K	70	80 °	350 mA	1.3 A	147 lm/W	3030 Metric	1212	130 lm	147 lm	164 lm	2.85 V	SMD	Surface Mount	3 mm	0.118 in	3 mm	0.118 "	Cool White
ams-OSRAM USA INC. GW CS8PM1.PM-LSLU-A333-1-350-R18	3.7 °C/W	5000 K	70	80 °	350 mA	1.3 A	160 lm/W	3030 Metric	1212		160 lm		2.85 V	SMD	Surface Mount	3 mm	0.118 in	3 mm	0.118 "	Cool White	2.3 mm	0.091 in
ams-OSRAM USA INC. GW CS8PM1.PM-LSLU-XX51-1-350-R18	5.25 °C/W	6500 K	70	80 °	350 mA	1.3 A	160 lm/W	3030 Metric	1212		160 lm		2.85 V	SMD	Surface Mount	3 mm	0.118 in	3 mm	0.118 "	Cool White
ams-OSRAM USA INC. GW CS8PM1.PM-LSLU-XX52-1-350-R18	5.25 °C/W	5700 K	70	80 °	350 mA	1.3 A	160 lm/W	3030 Metric	1212		160 lm		2.85 V	SMD	Surface Mount	3 mm	0.118 in	3 mm	0.118 "	Cool White
