333-020 Series
Manufacturer: EDAC Inc.
Beta
⌘K

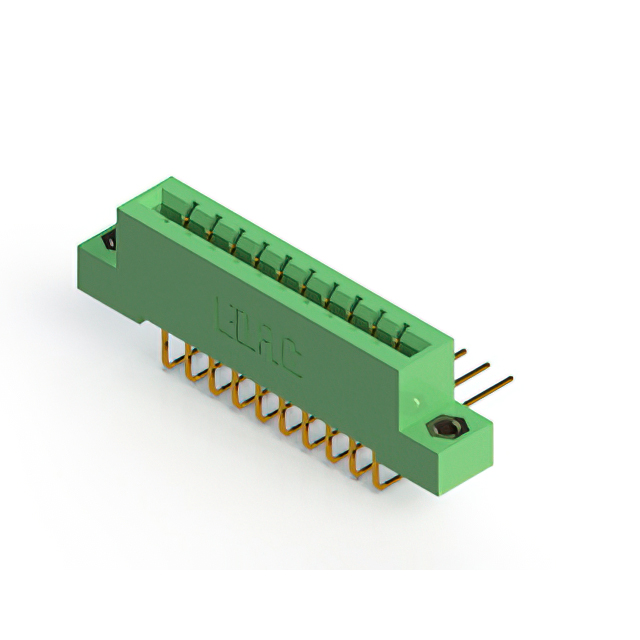

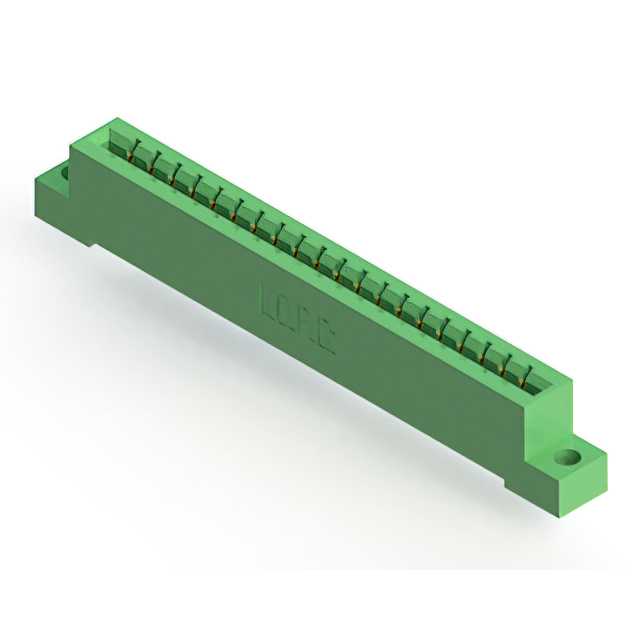

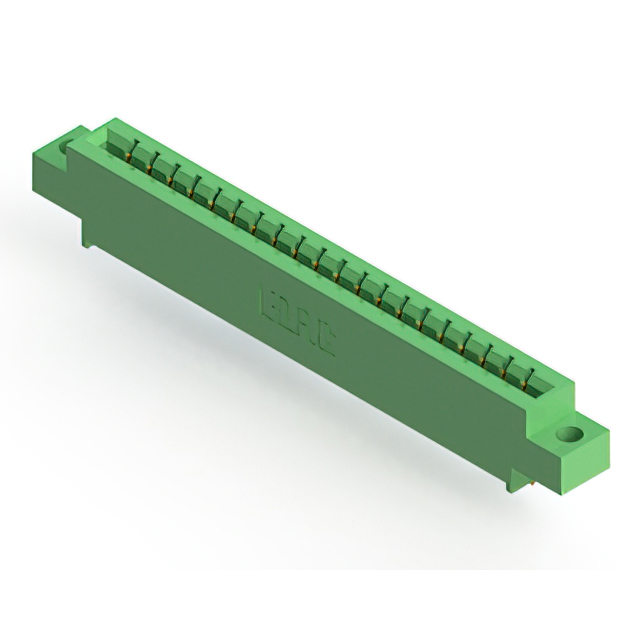

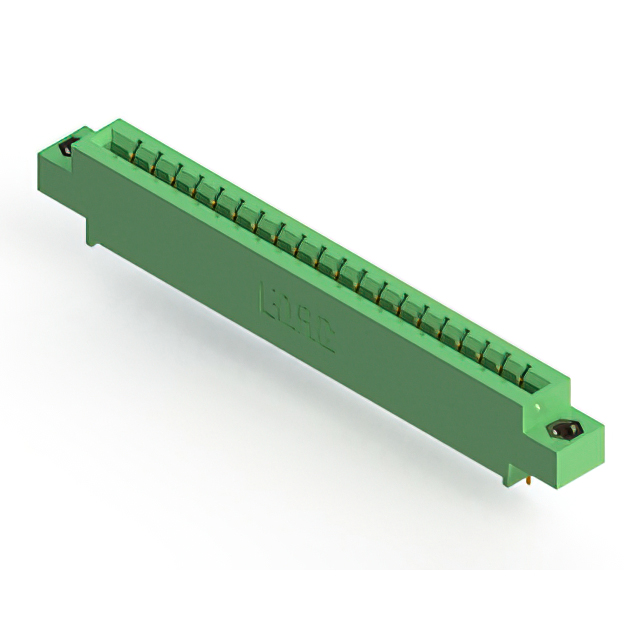

CONN EDGE DUAL FMALE 20POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Gender | Features | Number of Positions/Bay/Row | Color | Pitch | Pitch | Termination | Mounting Type | Number of Positions | Number of Rows [custom] | Read Out | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Termination Rows | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Female | Card Extender | 10 | Green | 3.96 mm | 0.156 in | Solder | Board Edge Straddle Mount | 20 | 2 | Dual | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | Non Specified - Dual Edge | -40 C | 105 ░C | Gold | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Female | 10 | Green | 3.96 mm | 0.156 in | Wire Wrap | Right Angle Through Hole | 20 | 2 | Dual | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | -40 C | 105 ░C | Gold | |||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Female | 10 | Green | 3.96 mm | 0.156 in | Solder | Through Hole | 20 | 2 | Dual | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | Non Specified - Dual Edge | -40 C | 105 ░C | Gold | |||
 EDAC Inc. | Polyester Thermoplastic | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Female | 20 Bay/Row | Green | 3.96 mm | 0.156 in | Solder | Through Hole | 20 | Single | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | -40 C | 105 ░C | Gold | 1 | 1 | |||||
 EDAC Inc. | Polyester Thermoplastic | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Female | 20 Bay/Row | Green | 3.96 mm | 0.156 in | Solder | Through Hole | 20 | Single | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | Non Specified - Single Edge | -40 C | 105 ░C | Gold | 1 | 1 | |||
 EDAC Inc. | Polyester Thermoplastic | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Female | 20 Bay/Row | Green | 3.96 mm | 0.156 in | Solder | Through Hole | 20 | Single | 0.156 " | 3.96 mm | Non Specified - Single Edge | -40 C | 105 ░C | Gold | 1 | 1 | ||||
 EDAC Inc. | Polyester Thermoplastic | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Female | 20 Bay/Row | Green | 3.96 mm | 0.156 in | Solder | Right Angle Through Hole | 20 | Single | 0.128 " | 3.25 mm | Non Specified - Single Edge | -40 C | 105 ░C | Gold | 1 | 1 | ||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Female | 10 | Green | 3.96 mm | 0.156 in | Wire Wrap | Through Hole | 20 | 2 | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | -40 C | 105 ░C | Gold | |||||
 EDAC Inc. | Polyester Thermoplastic | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Female | 20 Bay/Row | Green | 3.96 mm | 0.156 in | Wire Wrap | Through Hole | 20 | Single | 0.156 " | 3.96 mm | Non Specified - Single Edge | -40 C | 105 ░C | Gold | 1 | 1 | ||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Female | 10 | Green | 3.96 mm | 0.156 in | Wire Wrap | Through Hole | 20 | 2 | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | -40 C | 105 ░C | Gold |
