1734493 Series

Catalog

CONN HEADER R/A 10POS 2MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Contact Material	Contact Length - Post	Contact Length - Post	Features	Number of Positions	Style	Contact Finish - Mating	Voltage Rating	Contact Type	Insulation Color	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Contact Finish - Post	Number of Positions Loaded	Connector Type	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Mounting Type	Insulation Material	Termination	Fastening Type	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating
TE Connectivity AMP Connectors 1-1734493-0	2.54 µm	100 µin	Square	Brass	0.118 in	3 mm	Keying Slot	10	Board to Board Cable	Gold	250 VAC	Male Pin	Black	0.079 "	2 mm	-40 C	105 ░C	2	Tin	All	Header	Shrouded - 4 Wall	0.25 µm	10 µin	UL94 V-0	Right Angle Through Hole	Nylon 6T Polyamide (PA6T)	Solder	Push-Pull	0.141 in	3.6 mm	0.217 in	5.51 mm	2 mm	0.079 in

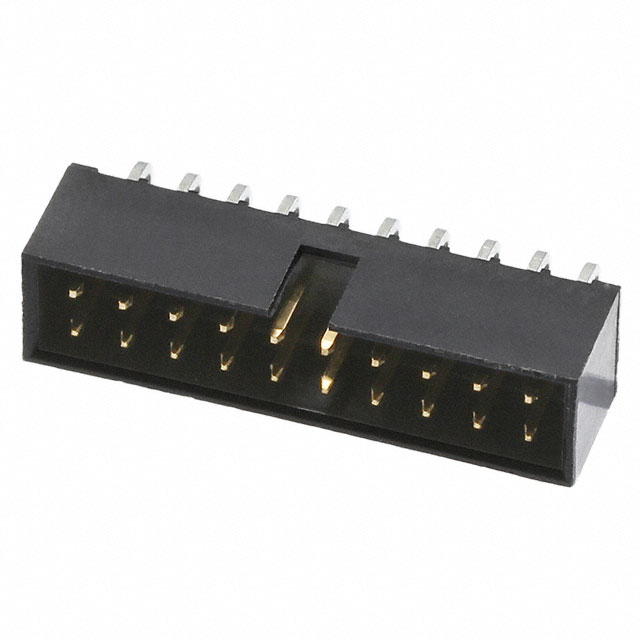

TE Connectivity AMP Connectors 2-1734493-0	2.54 µm	100 µin	Square	Brass	0.118 in	3 mm	Keying Slot	20	Board to Board Cable	Gold	250 VAC	Male Pin	Black	0.079 "	2 mm	-40 C	105 ░C	2	Tin	All	Header	Shrouded - 4 Wall	0.25 µm	10 µin	UL94 V-0	Right Angle Through Hole	Nylon 6T Polyamide (PA6T)	Solder	Push-Pull	0.141 in	3.6 mm	0.217 in	5.51 mm	2 mm	0.079 in
