68488 Series

Catalog

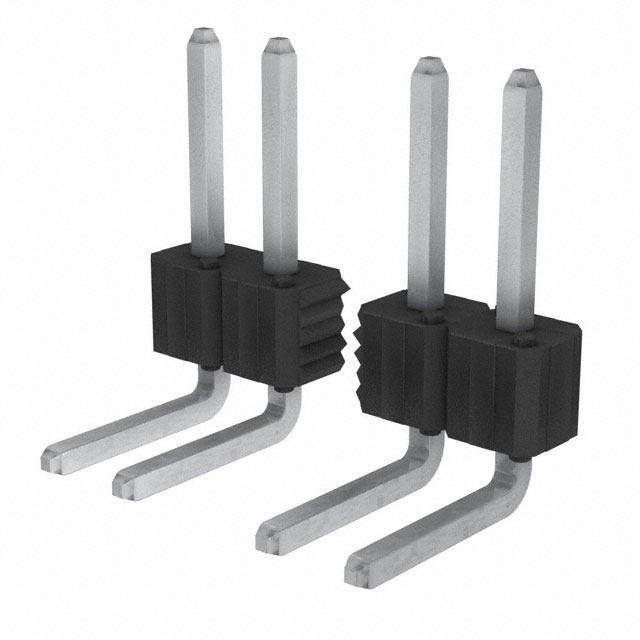

SINGLE ROW RIGHT ANGLE

Part	Connector Type	Number of Rows	Insulation Height [z]	Insulation Height [z]	Pitch - Mating	Pitch - Mating	Contact Material	Mounting Type	Termination	Shrouding	Contact Shape	Fastening Type	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Type	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish - Post
Amphenol ICC (FCI) 68488-108HLF	Header	1	0.095 in	2.41 mm	0.1 in	2.54 mm	Phosphor Bronze	Through Hole Right Angle	Solder	Unshrouded	Square	Push-Pull	UL94 V-0	30 Áin	0.76 Ám	Black	Gold or Gold GXT™	125 °C	-65 ░C	8	Male Pin	3 A	0.18 in	4.57 mm	All	0.23 in	5.84 mm
Amphenol ICC (FCI) 68488-425HLF	Header	1	0.095 in	2.41 mm	0.1 in	2.54 mm	Phosphor Bronze	Through Hole Right Angle	Solder	Unshrouded	Square	Push-Pull	UL94 V-0	100 çin	2.54 çm	Black		125 °C	-65 ░C		Male Pin	3 A	0.18 in	4.57 mm	All	0.23 in	5.84 mm	Tin
Amphenol ICC (FCI) 68488-406HLF	Header	1	0.095 in	2.41 mm	0.1 in	2.54 mm	Phosphor Bronze	Through Hole Right Angle	Solder	Unshrouded	Square	Push-Pull	UL94 V-0	100 çin	2.54 çm	Black		125 °C	-65 ░C	6	Male Pin	3 A	0.18 in	4.57 mm	All	0.23 in	5.84 mm	Tin
Amphenol ICC (FCI) 68488-114HLF	Header	1	0.095 in	2.41 mm	0.1 in	2.54 mm	Phosphor Bronze	Through Hole Right Angle	Solder	Unshrouded	Square	Push-Pull	UL94 V-0	30 Áin	0.76 Ám	Black	Gold or Gold GXT™	125 °C	-65 ░C	14	Male Pin	3 A	0.18 in	4.57 mm	All	0.23 in	5.84 mm
Amphenol ICC (FCI) 68488-135HLF	Header	1	0.095 in	2.41 mm	0.1 in	2.54 mm	Phosphor Bronze	Through Hole Right Angle	Solder	Unshrouded	Square	Push-Pull	UL94 V-0	30 Áin	0.76 Ám	Black	Gold or Gold GXT™	125 °C	-65 ░C	35	Male Pin	3 A	0.18 in	4.57 mm	All	0.23 in	5.84 mm
Amphenol ICC (FCI) 68488-402HLF	Header	1	0.095 in	2.41 mm	0.1 in	2.54 mm	Phosphor Bronze	Through Hole Right Angle	Solder	Unshrouded	Square	Push-Pull	UL94 V-0	100 çin	2.54 çm	Black		125 °C	-65 ░C	2	Male Pin	3 A	0.18 in	4.57 mm	All	0.23 in	5.84 mm	Tin
Amphenol ICC (FCI) 68488-418HLF	Header	1	0.095 in	2.41 mm	0.1 in	2.54 mm	Phosphor Bronze	Through Hole Right Angle	Solder	Unshrouded	Square	Push-Pull	UL94 V-0	100 çin	2.54 çm	Black		125 °C	-65 ░C	18	Male Pin	3 A	0.18 in	4.57 mm	All	0.23 in	5.84 mm	Tin
Amphenol ICC (FCI) 68488-119HLF	Header	1	0.095 in	2.41 mm	0.1 in	2.54 mm	Phosphor Bronze	Through Hole Right Angle	Solder	Unshrouded	Square	Push-Pull	UL94 V-0	30 Áin	0.76 Ám	Black	Gold or Gold GXT™	125 °C	-65 ░C	19	Male Pin	3 A	0.18 in	4.57 mm	All	0.23 in	5.84 mm
Amphenol ICC (FCI) 68488-415HLF	Header	1	0.095 in	2.41 mm	0.1 in	2.54 mm	Phosphor Bronze	Through Hole Right Angle	Solder	Unshrouded	Square	Push-Pull	UL94 V-0	100 çin	2.54 çm	Black		125 °C	-65 ░C	15	Male Pin	3 A	0.18 in	4.57 mm	All	0.23 in	5.84 mm	Tin
Amphenol ICC (FCI) 68488-413HLF	Header	1	0.095 in	2.41 mm	0.1 in	2.54 mm	Phosphor Bronze	Through Hole Right Angle	Solder	Unshrouded	Square	Push-Pull	UL94 V-0	100 çin	2.54 çm	Black		125 °C	-65 ░C	13	Male Pin	3 A	0.18 in	4.57 mm	All	0.23 in	5.84 mm	Tin
