111SM Series
Basic / Snap Action Switches Subminiature Basics
Manufacturer: Honeywell Sensing and Productivity Solutions
Catalog
Basic / Snap Action Switches Subminiature Basics
Beta
⌘K
Basic / Snap Action Switches Subminiature Basics
Basic / Snap Action Switches Subminiature Basics
Basic / Snap Action Switches Subminiature Basics
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Overtravel [custom] | Overtravel [custom] | Differential Travel | Differential Travel | Operating Force | Mechanical Life | Pretravel | Pretravel | Circuit | Voltage Rating - AC | Current Rating (Amps) | Termination Style | Operating Position | Operating Position | Actuator Type | Switch Function | Mounting Type | Release Force | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

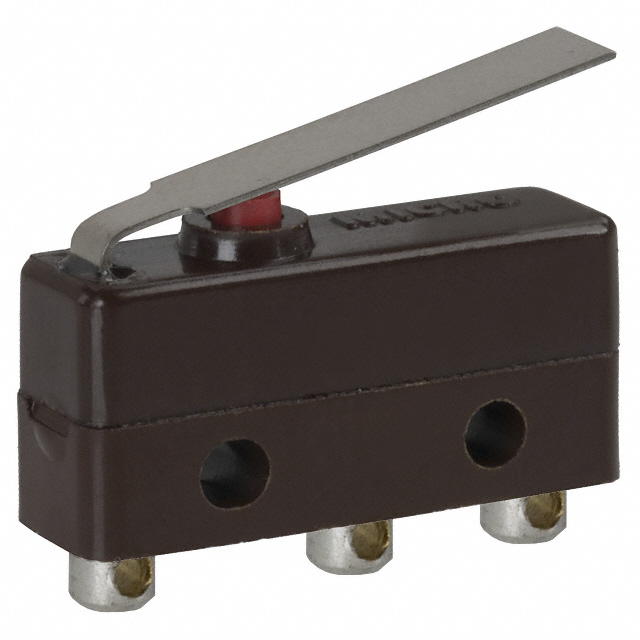

 Honeywell Sensing and Productivity Solutions | -55 C | 125 °C | 30 V | 0.03 " | 0.76 mm | 0.76 mm | 0.03 in | 198 gf | 10000000 Cycles | 0.218 in | 5.5 mm | SPDT | 250 V | 5 A | Solder Lug | 8.9 mm | 0.35 in | Lever Straight | On-Mom | Chassis Mount | 57 gf | |
 Honeywell Sensing and Productivity Solutions | -55 C | 125 °C | 30 V | 0.03 " | 0.76 mm | 0.76 mm | 0.03 in | 198 gf | 10000000 Cycles | 0.218 in | 5.5 mm | SPDT | 250 V | 5 A | Quick Connect - 0.110" (2.8mm) | 8.9 mm | 0.35 in | Lever Straight | On-Mom | Chassis Mount | 57 gf | |

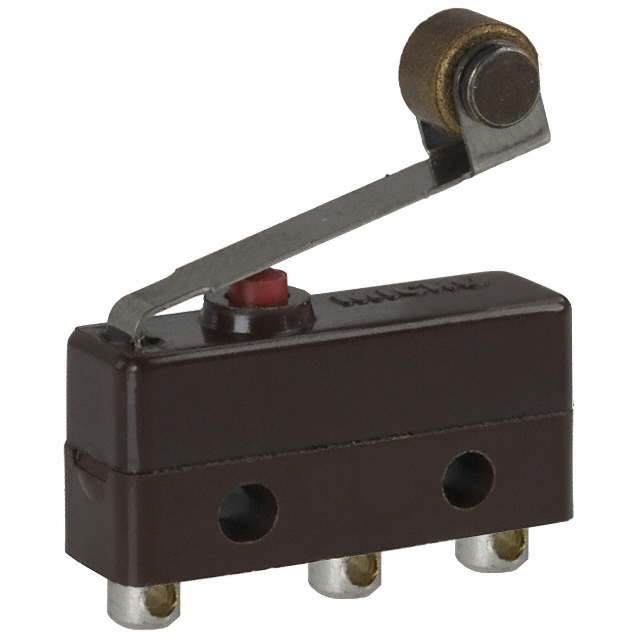

 Honeywell Sensing and Productivity Solutions | -55 C | 125 °C | 30 V | 0.03 " | 0.76 mm | 0.6 mm | 0.025 in | 198 gf | 10000000 Cycles | 0.218 in | 5.5 mm | SPDT | 250 V | 5 A | Solder Lug | 14.3 mm | 0.562 in | Lever Roller | On-Mom | Chassis Mount | 57 gf | |

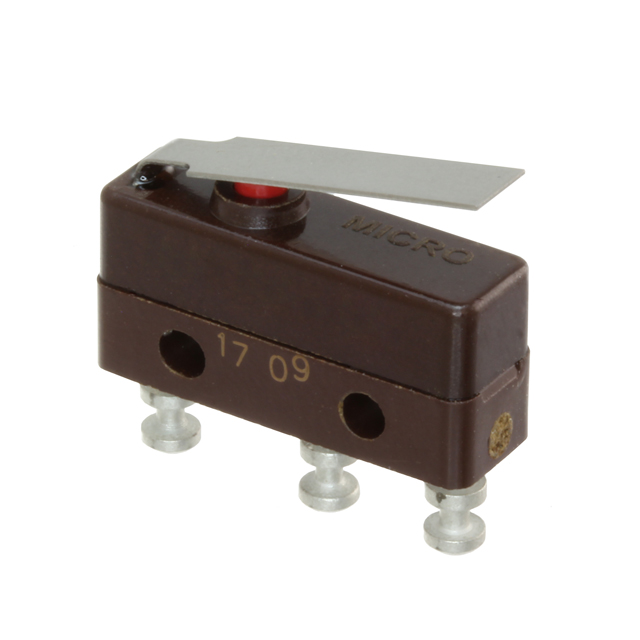

 Honeywell Sensing and Productivity Solutions | -55 C | 125 °C | 30 V | 0.03 " | 0.76 mm | 0.76 mm | 0.03 in | 198 gf | 10000000 Cycles | 0.218 in | 5.5 mm | SPDT | 250 V | 5 A | Solder Turret | 8.9 mm | 0.35 in | Lever Straight | On-Mom | Chassis Mount | 57 gf | |
Honeywell Sensing and Productivity Solutions | -55 C | 125 °C | 30 V | 0.011 " | 0.3 mm | 0.1 mm | 0.004 in | 227 gf | 10000000 Cycles | 0.15 in | 3.8 mm | SPDT | 250 V | 5 A | PC Pin | 8.9 mm | 0.35 in | Lever Straight | On-Mom | Through Hole | 57 gf | |
Honeywell Sensing and Productivity Solutions | -55 C | 125 °C | 30 V | 0.011 " | 0.3 mm | 0.1 mm | 0.004 in | 340 gf | 10000000 Cycles | 0.15 in | 3.8 mm | SPDT | 250 V | 5 A | PC Pin | 8.9 mm | 0.35 in | Lever Straight | On-Mom | Through Hole | 57 gf | |
 Honeywell Sensing and Productivity Solutions | -55 C | 125 °C | 30 V | 0.03 " | 0.76 mm | 1.4 mm | 0.055 in | 170 gf | 10000000 Cycles | 0.218 in | 5.5 mm | SPDT | 250 V | 5 A | Solder Lug | 14.3 mm | 0.562 in | Lever Roller | On-Mom | Chassis Mount | 14 gf | |
Honeywell Sensing and Productivity Solutions | -55 C | 125 °C | 30 V | 0.03 " | 0.76 mm | 0.76 mm | 0.03 in | 198 gf | 10000000 Cycles | 0.218 in | 5.5 mm | SPDT | 250 V | 5 A | Solder Lug | 8.9 mm | 0.35 in | Lever Straight | On-Mom | Chassis Mount | 57 gf | |
 Honeywell Sensing and Productivity Solutions | -55 C | 125 °C | 30 V | 0.03 " | 0.76 mm | 0.76 mm | 0.03 in | 198 gf | 10000000 Cycles | 0.218 in | 5.5 mm | SPDT | 250 V | 5 A | Solder Lug | 8.9 mm | 0.35 in | Lever Straight | On-Mom | Chassis Mount | 57 gf | |
 Honeywell Sensing and Productivity Solutions | -55 C | 125 °C | 30 V | 0.03 " | 0.76 mm | 0.76 mm | 0.03 in | 198 gf | 10000000 Cycles | 0.218 in | 5.5 mm | SPDT | 250 V | 5 A | Quick Connect | 8.9 mm | 0.35 in | Lever Straight | On-Mom | Chassis Mount | 57 gf | 0.058 in |
