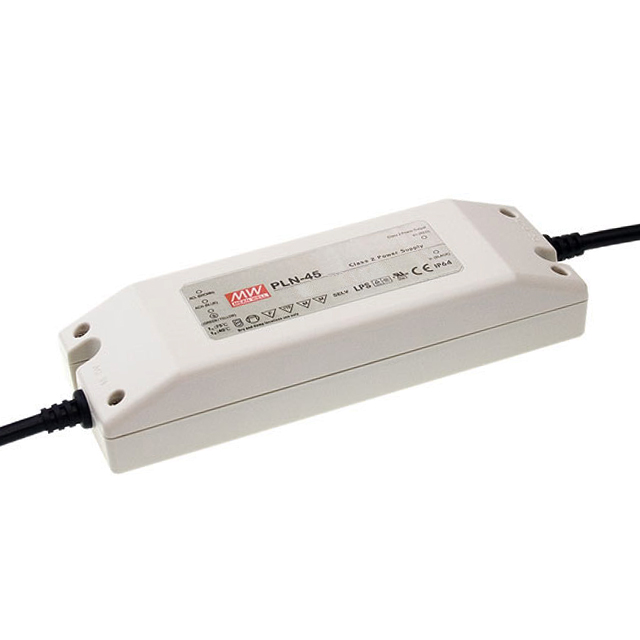

PLN-45 Series

Catalog

LED DRVR CC AC/DC 11.25-15V 3A

Part	Mounting Type	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Voltage - Output [Min]	Voltage - Output [Max]	Voltage - Input (Min) [Min]	Type	Number of Outputs	Features	Topology	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Ratings	Termination Style	Current - Output (Max) [Max]	Approval Agency
MEAN WELL USA Inc. PLN-45-15	Chassis Mount	3750 VDC	181 mm	2.42 in	7.13 in	61.5 mm	1.38 in	35 mm	295 VAC	11.25 V	15 V	90 VAC	Constant Current	1	OCP OTP OVP SCP	AC DC Converter	45 W	-30 ░C	50 °C	85 %	IP64	Wire Leads	3 A	CB CE cURus PSE TUV
MEAN WELL USA Inc. PLN-45-48	Chassis Mount	3750 VDC	181 mm	2.42 in	7.13 in	61.5 mm	1.38 in	35 mm	295 VAC	36 V	48 V	90 VAC	Constant Current	1	OCP OTP OVP SCP	AC DC Converter	46 W	-30 ░C	50 °C	87.5 %	IP64	Wire Leads	950 mA	CB CE PSE TUV UR
MEAN WELL USA Inc. PLN-45-20	Chassis Mount	3750 VDC	181 mm	2.42 in	7.13 in	61.5 mm	1.38 in	35 mm	295 VAC	15 V	20 V	90 VAC	Constant Current	1	OCP OTP OVP SCP	AC DC Converter	46 W	-30 ░C	50 °C	86.5 %	IP64	Wire Leads	2.3 A	CB CE cURus PSE TUV
