MS3110E14 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT MALE 12P GOLD SLDR CUP

Part	Mounting Type	Current Rating Options	Grade	Color	Features	Connector Type	Fastening Type	Mounting Feature	Ingress Protection	Shell Finish	Contact Material	Applications	Voltage Rating	Orientation	Primary Material	Shell Material	Insert Material	Shielding	Termination	Qualification	Shell Size - Insert Width	Shell Size - Insert Length	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Mating	Current Rating	Backshell Material	Plating

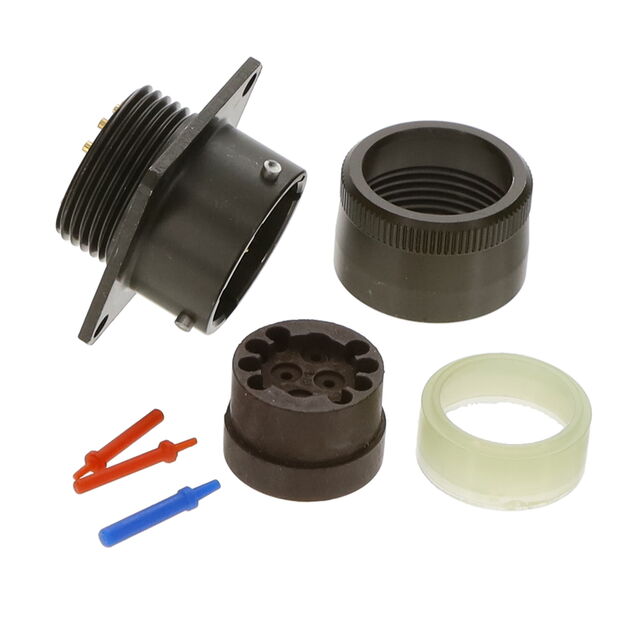

Amphenol Aerospace Operations MS3110E14-12P	Panel Mount	13A 7.5A	Military	Olive Drab	Backshell	Male Pins Receptacle	Bayonet Lock	Flange	Environment Resistant	Cadmium Olive Drab Chromate	Copper Alloy	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	600 V	N (Normal)	Metal	Aluminum	Neoprene	Unshielded	Solder Cup	MIL-DTL-26482 Series I	12 mm	14 mm	12	125 °C	-55 °C	Gold
Amphenol Aerospace Operations MS3110E14-5P	Panel Mount		Military	Olive Drab	Backshell	Male Pins Receptacle	Bayonet Lock	Flange	Environment Resistant	Cadmium Olive Drab Chromate	Copper Alloy	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	1000 V	N (Normal)	Metal	Aluminum	Neoprene	Unshielded	Solder Cup	MIL-DTL-26482 Series I	5 mm	14 mm	5	125 °C	-55 °C	Gold	13 A
Amphenol Aerospace Operations MS3110E14-12S
Amphenol Aerospace Operations MS3110E14-12P	Panel Mount		Military	Olive Drab	Backshell	Male Pins Receptacle	Bayonet Lock	Flange	Environment Resistant	Cadmium Olive Drab Chromate	Copper Alloy	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military		N (Normal)	Metal	Aluminum	Neoprene	Unshielded	Solder Cup	MIL-DTL-26482 Series I	12 mm	14 mm	12	125 °C	-55 °C	Gold		Aluminum	Olive Drab Chromate over Cadmium
Amphenol Aerospace Operations MS3110E14-15P
Amphenol Aerospace Operations MS3110E14-19S
