SFB Series
Manufacturer: Delta Electronics
Beta
⌘K

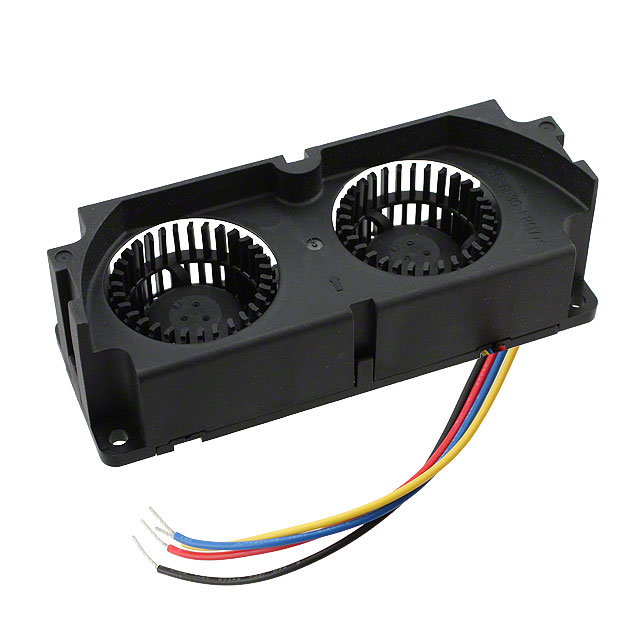

BLOWERS & CENTRIFUGAL FANS DC BLOWER, 125X38X45MM, 12VDC, BALL BEARING, 3-LEAD WIRES, TACHOMETER
| Part | Voltage Range [Min] | Voltage Range [Max] | Current Rating (Amps) | Lifetime @ Temp. | Material - Frame | Material - Blade | Voltage - Rated | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [z] | Static Pressure | Static Pressure | Power (Watts) | RPM | Width [x] | Noise | Features | Approval Agency | Fan Type | Weight | Weight | Bearing Type | Air Flow | Air Flow |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 5.5 VDC | 13.8 VDC | 0.62 A | 40 °C 50000 Hrs | Plastic | Plastic | 12 VDC | 3 Wire Leads | 70 °C | -10 °C | 125 mm | 38 mm | 0.643 in H2O | 160.2 Pa | 7.44 W | 7000 RPM | 45 mm | 52 dB | Locked Rotor Protection Speed Sensor (Tach) | CE CSA UL VDE | Blower Centrifugal (Dual) | 121.11 g | 0.267 lb | Ball | 0.647 m³/min | 23.1 CFM |
