78238 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

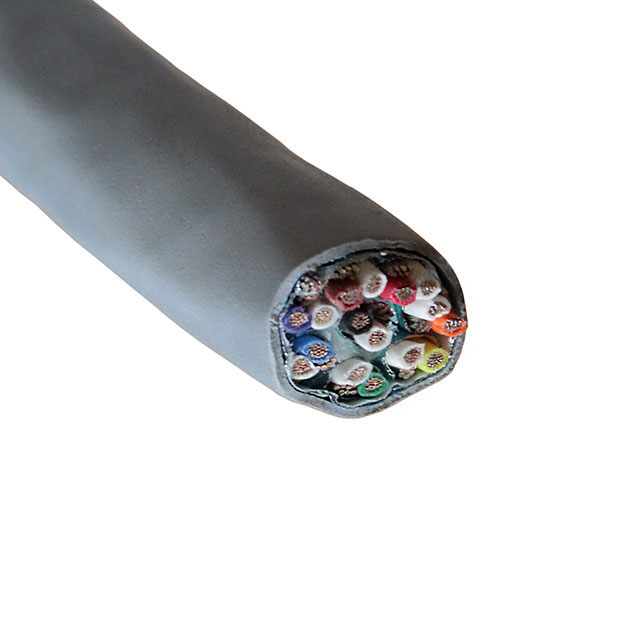

MULTI-PAIR 16COND 22AWG
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Wire Gauge | Shield Type | Features | Conductor Insulation | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Voltage | Cable Type | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Number of Conductors | Conductor Material | Ratings | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Polyphenylene Ether Modified (mPPE) | 22 AWG | Foil | Biological Compatibility Drain Wire Rip Cord | Polyphenylene Ether Modified (mPPE) | 0.381 mm | 0.015 in | 300 VDC | Multi-Pair | 304.8 m | 1000 ft | 8.18 mm | 0.322 in | 80 °C | -40 C | 34 AWG | 19 | Slate | 16 | Copper Tinned | ISO 10993 UL Style 21460 | ||
ALPHA WIRE | Aluminum | 100 % | Polyphenylene Ether Modified (mPPE) | 22 AWG | Foil | Biological Compatibility Drain Wire Rip Cord | Polyphenylene Ether Modified (mPPE) | 0.381 mm | 0.015 in | 300 VDC | Multi-Pair | 8.18 mm | 0.322 in | 80 °C | -40 C | 34 AWG | 19 | Slate | 16 | Copper Tinned | ISO 10993 UL Style 21460 | 100 ft | 30.5 m | ||
ALPHA WIRE | Aluminum | 100 % | Polyphenylene Ether Modified (mPPE) | 22 AWG | Foil | Biological Compatibility Drain Wire Rip Cord | Polyphenylene Ether Modified (mPPE) | 0.381 mm | 0.015 in | 300 VDC | Multi-Pair | 8.18 mm | 0.322 in | 80 °C | -40 C | 34 AWG | 19 | Slate | 16 | Copper Tinned | ISO 10993 UL Style 21460 | 1 ' | 300 mm |
