145132 Series

Manufacturer: Molex

Catalog

MICRO-FIT TPA-TO-MICRO-FIT TPA OFF-THE-SHELF (OTS) CABLE ASSEMBLY, SINGLE ROW, 1.0M LENGTH, 7 CIRCUITS, BLACK

Part	Number of Rows	Color	Number of Positions	Shielding	Pitch - Connector	Pitch - Connector	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Features	Connector Type	Length	Length	Length [x]	Length [x]	Length [x]	Length

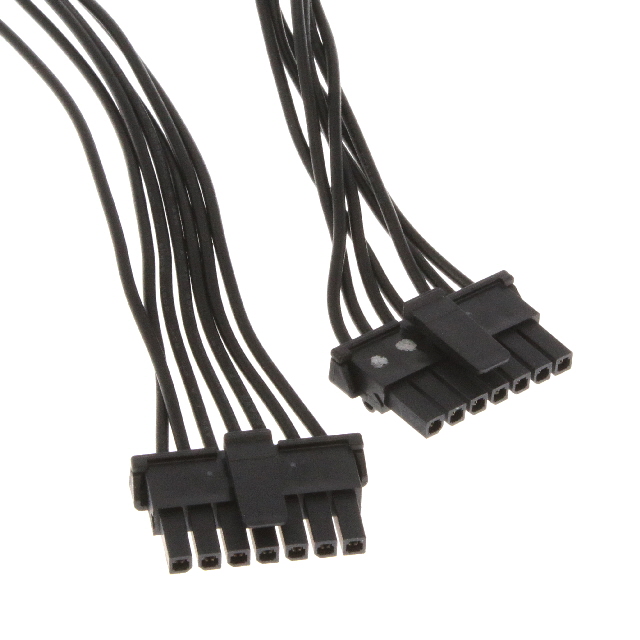

Molex 1451320710	1	Black Individual	7	Unshielded	0.118 in	3 mm	Crimp	40 Áin	1.02 Ám	Tin	Latch Lock	Socket to Socket	1 m	3.28 ft

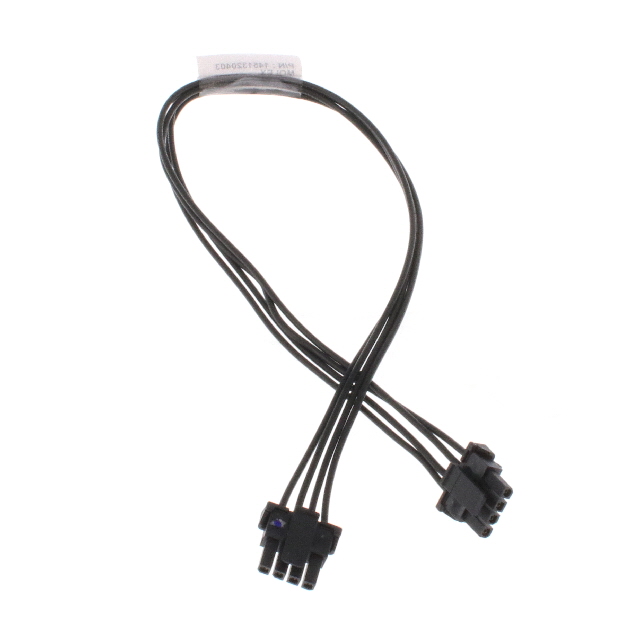

Molex 1451320403	1	Black Individual	4	Unshielded	0.118 in	3 mm	Crimp	40 Áin	1.02 Ám	Tin	Latch Lock	Socket to Socket			0.984 ft	300 mm	11.81 in

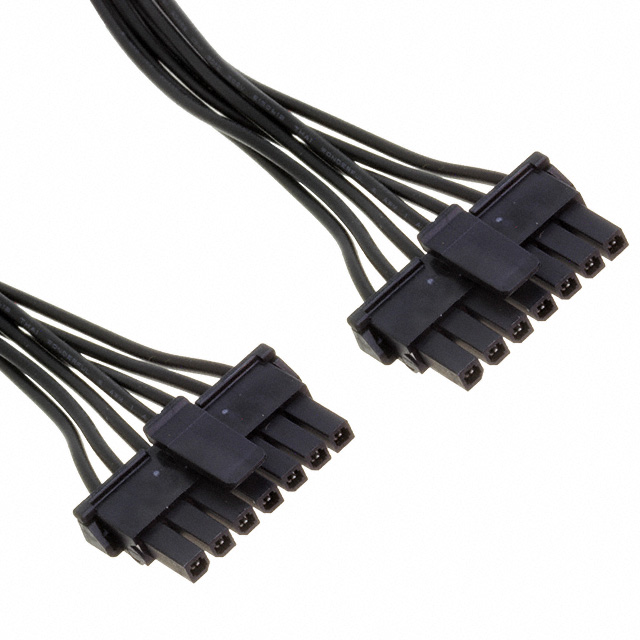

Molex 1451320703	1	Black Individual	7	Unshielded	0.118 in	3 mm	Crimp	40 Áin	1.02 Ám	Tin	Latch Lock	Socket to Socket			0.984 ft	300 mm	11.81 in

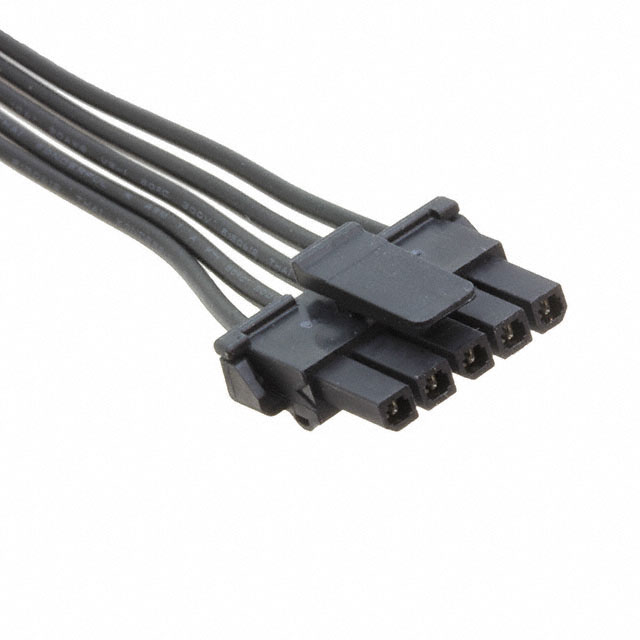

Molex 1451320503	1	Black Individual	5	Unshielded	0.118 in	3 mm	Crimp	40 Áin	1.02 Ám	Tin	Latch Lock	Socket to Socket			0.984 ft	300 mm	11.81 in

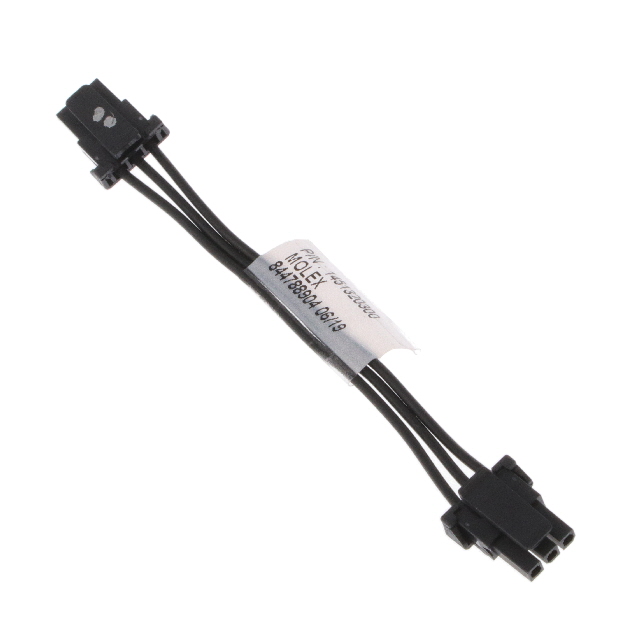

Molex 1451320300	1	Black Individual		Unshielded	0.118 in	3 mm	Crimp	40 Áin	1.02 Ám	Tin	Latch Lock	Socket to Socket	75 mm	0.246 ft				2.95 in
Molex 1451320610	1	Black Individual	6	Unshielded	0.118 in	3 mm	Crimp	40 Áin	1.02 Ám	Tin	Latch Lock	Socket to Socket	1 m	3.28 ft
Molex 1451320310	1	Black Individual		Unshielded	0.118 in	3 mm	Crimp	40 Áin	1.02 Ám	Tin	Latch Lock	Socket to Socket	1 m	3.28 ft

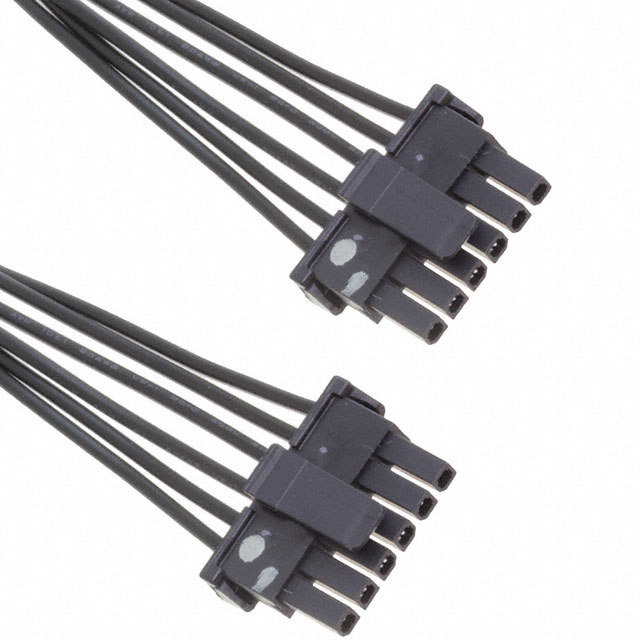

Molex 1451320601	1	Black Individual	6	Unshielded	0.118 in	3 mm	Crimp	40 Áin	1.02 Ám	Tin	Latch Lock	Socket to Socket	150 mm	0.492 ft				5.91 in
Molex 1451320603	1	Black Individual	6	Unshielded	0.118 in	3 mm	Crimp	40 Áin	1.02 Ám	Tin	Latch Lock	Socket to Socket			0.984 ft	300 mm	11.81 in
Molex 1451320210	1	Black Individual	2	Unshielded	0.118 in	3 mm	Crimp	40 Áin	1.02 Ám	Tin	Latch Lock	Socket to Socket	1 m	3.28 ft
