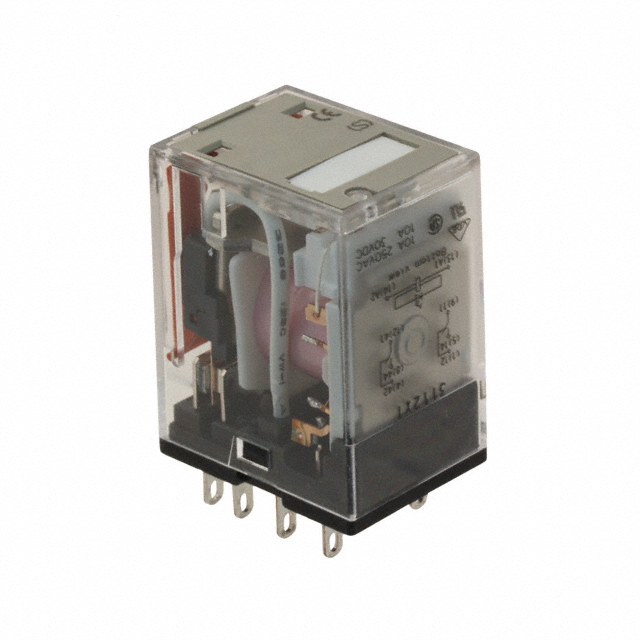

MJN3C Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
POWER RELAY, 3PDT, 120 VAC, 10 A, MJN SERIES, SOCKET, NON LATCHING
| Part | Contact Rating (Current) | Switching Voltage | Release Time | Operating Temperature [Max] [custom] | Operating Temperature [Min] [custom] | Approval Agency | Coil Current | Operate Time | Coil Resistance | Termination Style | Relay Type | Must Operate Voltage | Mounting Type | Load - Max Switching | Contact Material | Coil Voltage | Contact Form | Coil Type | Features | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 10 A | 28 VDC 600 VAC | 10 ms | 45 °C | -45 °C | CSA UR | 16.7 mA | 20 ms | 1.7 kOhms | Plug In Quick Connect - 0.187" (4.7mm) | General Purpose | 102 VAC | Socketable | 280 W 6000 VA | Silver Alloy | 120 VAC | 3PDT (3 Form C) | Non Latching | |||
 Omron Electronics Inc-EMC Div | 10 A | 28 VDC 600 VAC | 10 ms | CSA UR | 20 ms | Plug In Quick Connect - 0.187" (4.7mm) | General Purpose | 36 VDC | Socketable | 280 W 6000 VA | Silver Alloy | 48 VDC | 3PDT (3 Form C) | Non Latching | Lighted Indicator | -45 °C | 70 °C | ||||
Omron Electronics Inc-EMC Div | 10 A | 28 VDC 600 VAC | 10 ms | CSA UR | 20 ms | Plug In Quick Connect - 0.187" (4.7mm) | General Purpose | 36 VDC | Socketable | 280 W 6000 VA | Silver Alloy | 48 VDC | 3PDT (3 Form C) | Non Latching | Lighted Indicator Test Button | -45 °C | 70 °C | ||||
Omron Electronics Inc-EMC Div | 10 A | 28 VDC 600 VAC | 10 ms | 45 °C | -45 °C | CSA UR | 83.3 mA | 20 ms | 72 Ohms | Plug In Quick Connect - 0.187" (4.7mm) | General Purpose | Socketable | 280 W 6000 VA | Silver Alloy | 24 VAC | 3PDT (3 Form C) | Non Latching | ||||
Omron Electronics Inc-EMC Div | 10 A | 28 VDC 600 VAC | 10 ms | CSA UR | 100 mA | 20 ms | 120 Ohms | Plug In Quick Connect - 0.187" (4.7mm) | General Purpose | 9 VDC | Socketable | 280 W 6000 VA | Silver Alloy | 12 VDC | 3PDT (3 Form C) | Non Latching | Lighted Indicator | -45 °C | 70 °C | ||
Omron Electronics Inc-EMC Div | 10 A | 28 VDC 600 VAC | 10 ms | CSA UR | 11 mA | 20 ms | Plug In Quick Connect - 0.187" (4.7mm) | General Purpose | 82.5 VDC | Socketable | 280 W 6000 VA | Silver Alloy | 110 VDC | 3PDT (3 Form C) | Non Latching | Lighted Indicator Test Button | -45 °C | 70 °C | |||
Omron Electronics Inc-EMC Div | 10 A | 28 VDC 600 VAC | 10 ms | 45 °C | -45 °C | CSA UR | 8.3 mA | 20 ms | 7.2 kOhms | Plug In Quick Connect - 0.187" (4.7mm) | General Purpose | 204 VAC | Socketable | 280 W 6000 VA | Silver Alloy | 240 VAC | 3PDT (3 Form C) | Non Latching | Test Button | ||
Omron Electronics Inc-EMC Div | 10 A | 28 VDC 600 VAC | 10 ms | 45 °C | -45 °C | CSA UR | 8.3 mA | 20 ms | 7.2 kOhms | Plug In Quick Connect - 0.187" (4.7mm) | General Purpose | 204 VAC | Socketable | 280 W 6000 VA | Silver Alloy | 240 VAC | 3PDT (3 Form C) | Non Latching | Lighted Indicator | ||
Omron Electronics Inc-EMC Div | 10 A | 28 VDC 600 VAC | 10 ms | CSA UR | 11 mA | 20 ms | Plug In Quick Connect - 0.187" (4.7mm) | General Purpose | 82.5 VDC | Socketable | 280 W 6000 VA | Silver Alloy | 110 VDC | 3PDT (3 Form C) | Non Latching | Lighted Indicator | -45 °C | 70 °C | |||
Omron Electronics Inc-EMC Div | 10 A | 28 VDC 600 VAC | 10 ms | CSA UR | 240 mA | 20 ms | 20 Ohms | Plug In Quick Connect - 0.187" (4.7mm) | General Purpose | 3.75 VDC | Socketable | 280 W 6000 VA | Silver Alloy | 5 VDC | 3PDT (3 Form C) | Non Latching | -45 °C | 70 °C |
