R16122 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

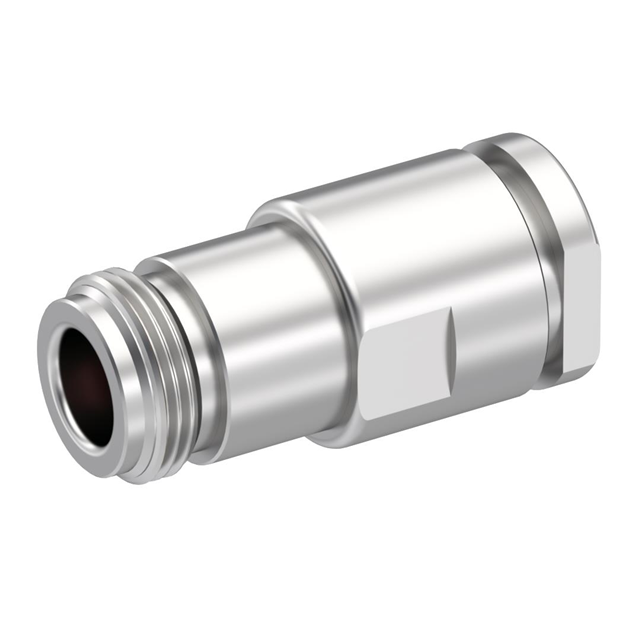

N / STRAIGHT JACK CLAMP TYPE CAB
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Insertion Loss | Body Material | Mating Cycles | Body Finish | Center Contact Plating | Voltage Rating | Dielectric Material | Frequency - Max [Max] | Cable Group | Connector Style | Ingress Protection | Mounting Type | Center Contact Material | Number of Ports | Impedance | Fastening Type | Connector Type | Contact Termination | Housing Color | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 155 C | -55 C | 0.15 dB | Brass | 500 | White Bronze | Gold | 1400 V | Polytetrafluoroethylene (PTFE) | 11 GHz | 144 165 213 214 216 225 RG-11 | N Type | IP67 - Dust Tight Waterproof | Free Hanging (In-Line) | Beryllium Copper | 1 | 50 Ohms | Threaded | Female Socket Jack | Solder | Silver | Clamp |
 Radiall USA, Inc. | 105 ░C | -55 C | 0.15 dB | Brass | 500 | White Bronze | Gold | 335 V | Polytetrafluoroethylene (PTFE) | 11 GHz | N Type | IP67 - Dust Tight Waterproof | Free Hanging (In-Line) | Beryllium Copper | 1 | 50 Ohms | Threaded | Female Socket Jack | Solder | Silver | Solder |
