PLG.M1 Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 14P SOLDER CUP

Part	Mounting Feature	Primary Material	Shell Material	Shielding	Applications	Orientation [custom]	Shell Size - Insert	Number of Positions	Fastening Type	Mounting Type	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Current Rating (Amps)	Color	Contact Finish - Mating	Ingress Protection	Features
LEMO PLG.M1.4SL.LAZ	Bulkhead - Rear Side Nut	Plastic	Polyetherimide (PEI)	Unshielded	Automotive Industrial Medical Testing Equipment & Measurement	G	M14	14	Detent Lock Push-Pull	Panel Mount	Receptacle Female Sockets	170 °C	-50 °C	Polyetheretherketone (PEEK)	2 A	Blue Gray	Gold	IP50 - Dust Protected
LEMO PLG.M1.0TL.LN	Bulkhead - Rear Side Nut	Plastic	Polyetherimide (PEI)	Unshielded	Automotive Industrial Medical Testing Equipment & Measurement	G	M10	10	Detent Lock Push-Pull	Panel Mount	Receptacle Female Sockets	170 °C	-50 °C	Polyetheretherketone (PEEK)	3 A	Black	Gold	IP50 - Dust Protected

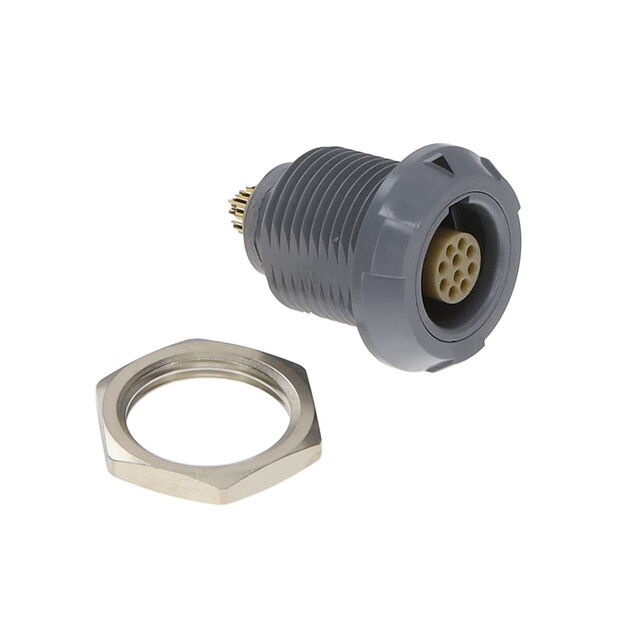

LEMO PLG.M1.0SL.LG	Bulkhead - Rear Side Nut	Plastic	Polyetherimide (PEI)	Unshielded	Automotive Industrial Medical Testing Equipment & Measurement	G	M10	10	Detent Lock Push-Pull	Panel Mount	Receptacle Female Sockets	170 °C	-50 °C	Polyetheretherketone (PEEK)	3 A	Gray	Gold	IP50 - Dust Protected
LEMO PLG.M1.4ZL.L				Unshielded	Automotive Industrial Medical Testing Equipment & Measurement	G	M14	14			Insert Female Sockets			Polyetheretherketone (PEEK)	2 A		Gold	IP50 - Dust Protected	Insert Only Requires Shell

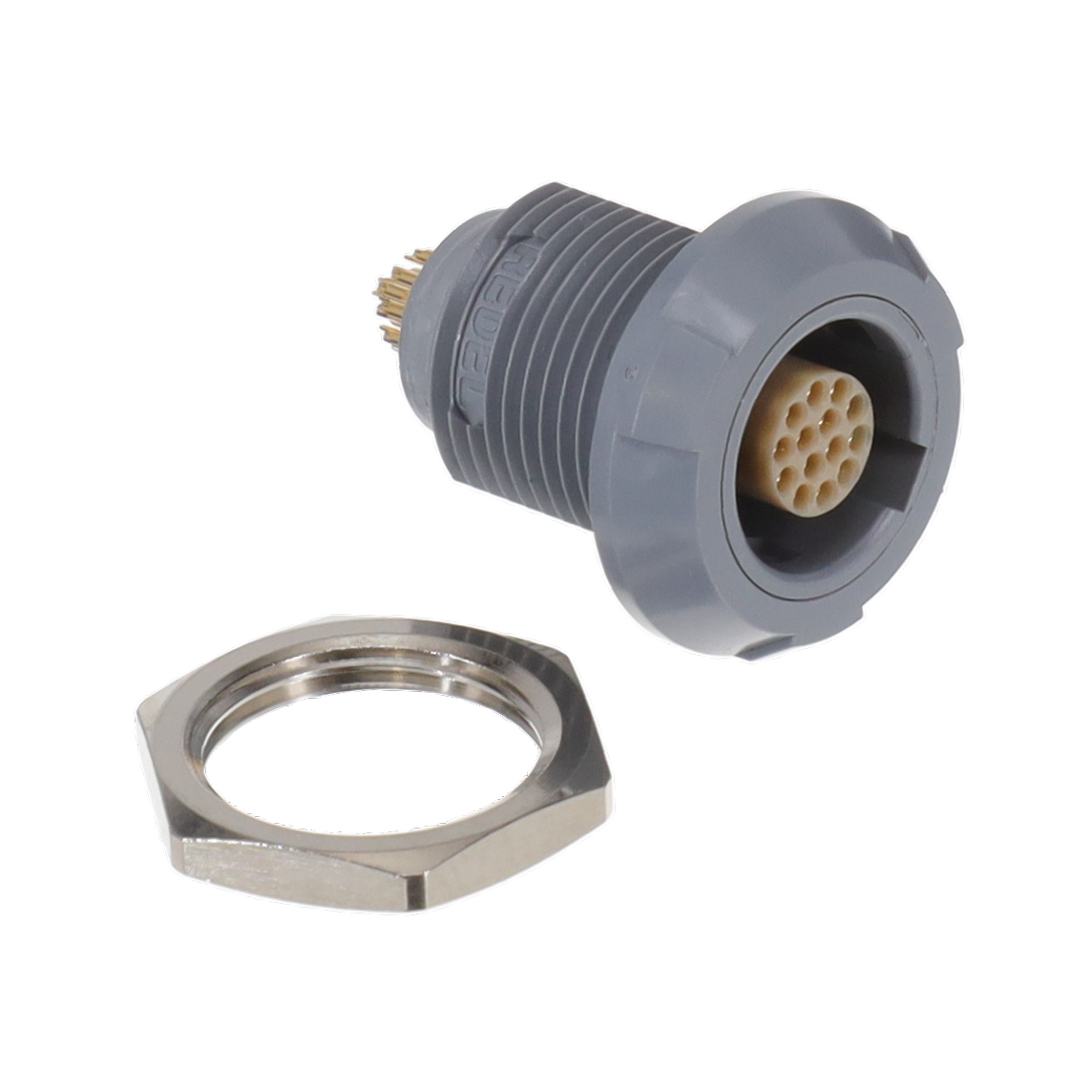

LEMO PLG.M1.4SL.LG	Bulkhead - Rear Side Nut	Plastic	Polyetherimide (PEI)	Unshielded	Automotive Industrial Medical Testing Equipment & Measurement	G	M14	14	Detent Lock Push-Pull	Panel Mount	Receptacle Female Sockets	170 °C	-50 °C	Polyetheretherketone (PEEK)	2 A	Gray	Gold	IP50 - Dust Protected
LEMO PLG.M1.0ZL.L				Unshielded	Automotive Industrial Medical Testing Equipment & Measurement	G	M10	10			Insert Female Sockets			Polyetheretherketone (PEEK)	3 A		Gold	IP50 - Dust Protected	Insert Only Requires Shell
