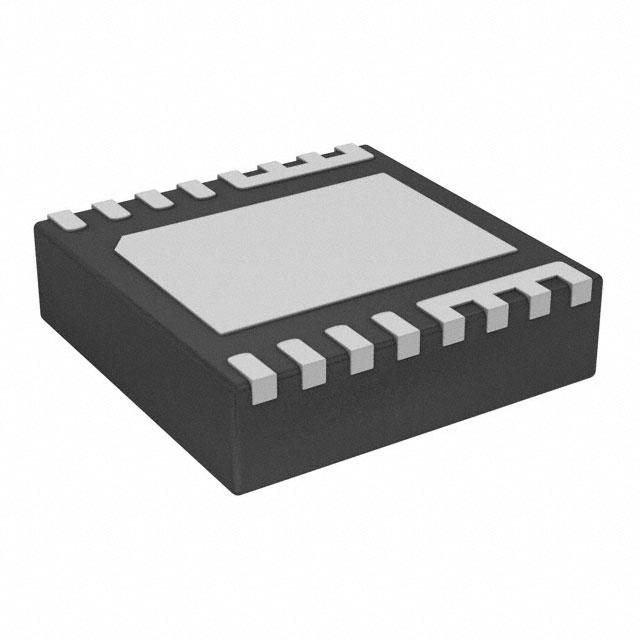

Synchronous Buck NexFET Power Stage, CSD95379Q3M
Key Features
• 92.5% System Efficiency at 12 AUltra-Low Power Loss of 1.8 W at 12 AMax Rated Continuous Current of 20 A and Peak Current of 45 AHigh-Frequency Operation (up to 2 MHz)High-Density SON 3.3-mm × 3.3-mm FootprintUltra-Low Inductance PackageSystem Optimized PCB FootprintLow Quiescent (LQ) and Ultra-Low Quiescent (ULQ) Current Mode3.3-V and 5-V PWM Signal CompatibleDiode Emulation Mode with FCCMTri-State PWM InputIntegrated Bootstrap DiodeShoot-Through ProtectionRoHS Compliant – Lead-Free Terminal PlatingHalogen Free92.5% System Efficiency at 12 AUltra-Low Power Loss of 1.8 W at 12 AMax Rated Continuous Current of 20 A and Peak Current of 45 AHigh-Frequency Operation (up to 2 MHz)High-Density SON 3.3-mm × 3.3-mm FootprintUltra-Low Inductance PackageSystem Optimized PCB FootprintLow Quiescent (LQ) and Ultra-Low Quiescent (ULQ) Current Mode3.3-V and 5-V PWM Signal CompatibleDiode Emulation Mode with FCCMTri-State PWM InputIntegrated Bootstrap DiodeShoot-Through ProtectionRoHS Compliant – Lead-Free Terminal PlatingHalogen Free
Description
AI
The CSD95379Q3M NexFET™ power stage is a highly optimized design for use in high-power, high-density synchronous buck converters. This product integrates the driver IC and NexFET technology to complete the power stage switching function. The driver IC has a built-in selectable diode emulation function that enables DCM operation to improve light load efficiency. In addition, the driver IC supports ULQ mode that enables Connected Standby for Windows®8. With the PWM input in tri-state, quiescent current is reduced to 130 µA, with immediate response. When SKIP# is held at tri-state, the current is reduced to 8 µA (typically 20 µs is required to resume switching). This combination produces high-current, high-efficiency, and high-speed switching capability in a small 3.3-mm × 3.3-mm outline package. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.
The CSD95379Q3M NexFET™ power stage is a highly optimized design for use in high-power, high-density synchronous buck converters. This product integrates the driver IC and NexFET technology to complete the power stage switching function. The driver IC has a built-in selectable diode emulation function that enables DCM operation to improve light load efficiency. In addition, the driver IC supports ULQ mode that enables Connected Standby for Windows®8. With the PWM input in tri-state, quiescent current is reduced to 130 µA, with immediate response. When SKIP# is held at tri-state, the current is reduced to 8 µA (typically 20 µs is required to resume switching). This combination produces high-current, high-efficiency, and high-speed switching capability in a small 3.3-mm × 3.3-mm outline package. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.
