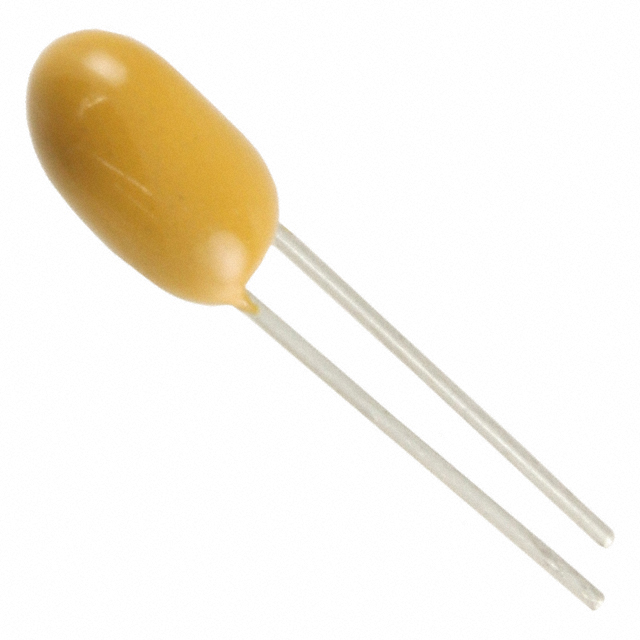

T350E Series

Manufacturer: KEMET

Catalog

CAP TANT SOLID 15UF 10V 10%( 5.5 X 8.9MM) RADIAL 2.54MM 125°C BAG

Part	Lead Spacing	Lead Spacing	Tolerance	Features	Capacitance	Type	Operating Temperature [Min]	Operating Temperature [Max]	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Manufacturer Size Code	Package / Case	Voltage - Rated	Mounting Type
KEMET T350E156K010AS	2.54 mm	0.1 in	10 %	General Purpose	15 µF	Conformal Coated	-55 C	125 °C	3.7 Ohm	8.9 mm	0.35 "	5.5 mm	0.217 in	E	Radial	10 V	Through Hole
KEMET T350E106K016AT	2.54 mm	0.1 in	10 %	General Purpose	10 µF	Conformal Coated	-55 C	125 °C	3.2 Ohms	8.9 mm	0.35 "	5.5 mm	0.217 in	E	Radial	16 V	Through Hole
KEMET T350E106M025AS	2.54 mm	0.1 in	20 %	General Purpose	10 µF	Conformal Coated	-55 C	125 °C	2.5 Ohm	8.9 mm	0.35 "	5.5 mm	0.217 in	E	Radial	25 VDC	Through Hole
KEMET T350E685K025AS	2.54 mm	0.1 in	10 %	General Purpose	6.8 µF	Conformal Coated	-55 C	125 °C	3.1 Ohm	8.9 mm	0.35 "	5.5 mm	0.217 in	E	Radial	25 VDC	Through Hole
KEMET T350E475M035AT7353	2.54 mm	0.1 in	20 %	General Purpose	4.7 µF	Molded	-55 C	125 °C		8.9 mm	0.35 "	5.5 mm	0.217 in	E	Radial	35 V	Through Hole
KEMET T350E475M035AS	2.54 mm	0.1 in	20 %	General Purpose	4.7 µF	Conformal Coated	-55 C	125 °C	3 Ohm	8.9 mm	0.35 "	5.5 mm	0.217 in	E	Radial	35 V	Through Hole
KEMET T350E106M016AT	2.54 mm	0.1 in	20 %	General Purpose	10 µF	Conformal Coated	-55 C	125 °C	3.2 Ohms	8.9 mm	0.35 "	5.5 mm	0.217 in	E	Radial	16 V	Through Hole
KEMET T350E106M016AT7301	2.54 mm	0.1 in	20 %	General Purpose	10 µF	Conformal Coated	-55 C	125 °C	3.2 Ohms	8.9 mm	0.35 "	5.5 mm	0.217 in	E	Radial	16 V	Through Hole
KEMET T350E475K035AS	2.54 mm	0.1 in	10 %	General Purpose	4.7 µF	Conformal Coated	-55 C	125 °C	3 Ohm	8.9 mm	0.35 "	5.5 mm	0.217 in	E	Radial	35 V	Through Hole
KEMET T350E336K006AS	2.54 mm	0.1 in	10 %	General Purpose	33 ÁF	Conformal Coated	-55 C	125 °C	3 Ohm	8.9 mm	0.35 "	5.5 mm	0.217 in	E	Radial	6.3 VDC	Through Hole
