0672-4 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth	Socket Depth	Contact Material	Tail Type	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall [x]
Mill-Max Manufacturing Corp. 0672-4-15-80-30-27-10-0	-55 C	125 °C	2.67 mm	0.105 in	Beryllium Copper	No Tail	Gold	1.78 mm	0.07 in	0.049 in	1.24 mm	Swage	0.64 mm	0.015 "	0.025 in	0.38 mm	30 Áin	0.76 Ám	7.14 mm	0.281 in
Mill-Max Manufacturing Corp. 0672-4-15-80-30-84-10-0	-55 C	125 °C	2.67 mm	0.105 in	Beryllium Copper	No Tail	Tin	1.78 mm	0.07 in	0.049 in	1.24 mm	Swage	0.64 mm	0.015 "	0.025 in	0.38 mm	100 µin	2.54 µm	7.14 mm	0.281 in
Mill-Max Manufacturing Corp. 0672-4-15-80-30-14-10-0	-55 C	125 °C	2.67 mm	0.105 in	Beryllium Copper	No Tail	Gold	1.78 mm	0.07 in	0.049 in	1.24 mm	Swage	0.64 mm	0.015 "	0.025 in	0.38 mm	10 Áin	0.25 Ám	7.14 mm	0.281 in
Mill-Max Manufacturing Corp. 0672-4-15-01-30-02-10-0	-55 C	125 °C	2.67 mm	0.105 in	Beryllium Copper	No Tail	Tin-Lead	1.77 mm	0.07 in	0.049 in	1.24 mm	Swage	0.64 mm	0.015 "	0.025 in	0.38 mm	100 µin	2.54 µm	7.14 mm	0.281 in

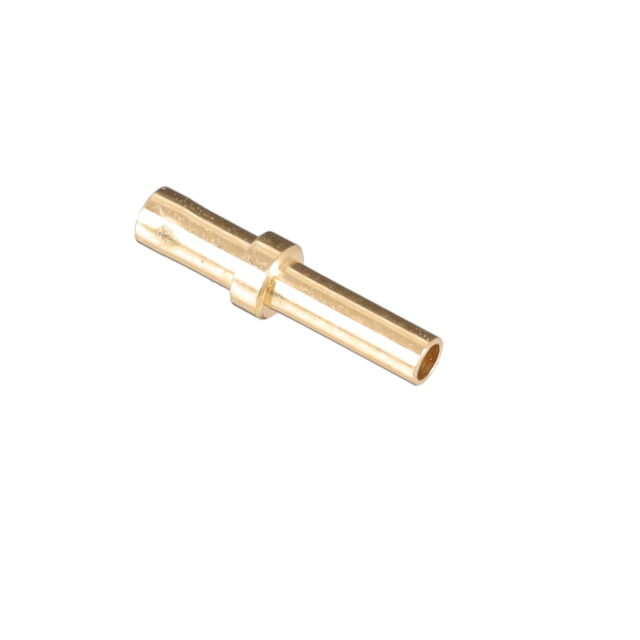

Mill-Max Manufacturing Corp. 0672-4-15-15-30-27-10-0	-55 C	125 °C	2.67 mm	0.105 in	Beryllium Copper	No Tail	Gold	1.77 mm	0.07 in	0.049 in	1.24 mm	Swage	0.64 mm	0.015 "	0.025 in	0.38 mm	30 Áin	0.76 Ám	7.14 mm	0.281 in
Mill-Max Manufacturing Corp. 0672-4-15-15-30-14-10-0	-55 C	125 °C	2.67 mm	0.105 in	Beryllium Copper	No Tail	Gold	1.78 mm	0.07 in	0.049 in	1.24 mm	Swage	0.64 mm	0.015 "	0.025 in	0.38 mm	10 Áin	0.25 Ám	7.14 mm	0.281 in
