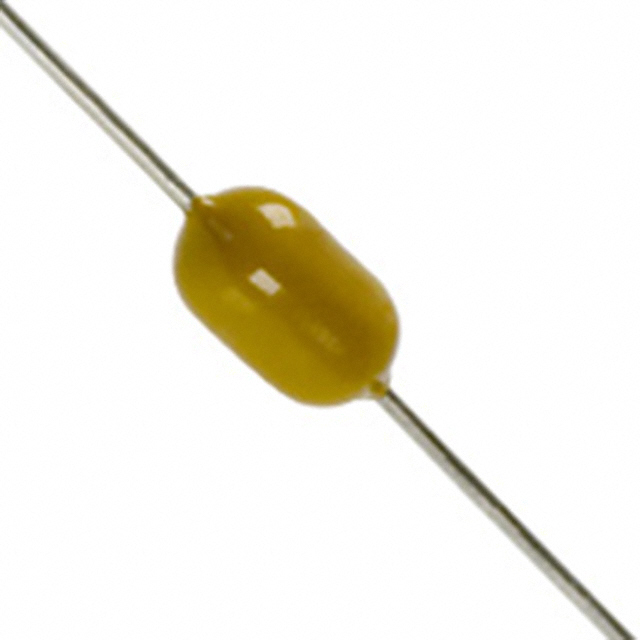

AxiMax 400 Comm C0G Series

Manufacturer: KEMET

Catalog

Catalog

MULTILAYER CERAMIC CAPACITORS MLCC - LEADED 200V 820PF C0G 1%

...

Part	Lead Style	Temperature Coefficient	Voltage - Rated	Package / Case	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Features	Mounting Type	Capacitance
KEMET C410C821F2G5TA	Straight	C0G NP0	200 VDC	Axial	0.17 in	0.095 in	2.41 mm	4.32 mm	1 %	-55 C	125 °C	General Purpose	Low ESL	Through Hole	820 pF
KEMET C430C682G3G5TA	Straight	C0G NP0	25 VDC	Axial	0.24 "	0.15 "	3.81 mm	6.1 mm	2 %	-55 C	125 °C	General Purpose	Low ESL	Through Hole	6800 pF
KEMET C410C622G2G5TA	Straight	C0G NP0	200 VDC	Axial	0.17 in	0.095 in	2.41 mm	4.32 mm	2 %	-55 C	125 °C	General Purpose	Low ESL	Through Hole	6200 pF
KEMET C430C822K3G5TA	Straight	C0G NP0	25 VDC	Axial	0.24 "	0.15 "	3.81 mm	6.1 mm	10 %	-55 C	125 °C	General Purpose	Low ESL	Through Hole
KEMET C430C392JAG5TA	Straight	C0G NP0	250 V	Axial	0.24 "	0.15 "	3.81 mm	6.1 mm	5 %	-55 C	125 °C	General Purpose	Low ESL	Through Hole	3900 pF
KEMET C410C102G5G5TA	Straight	C0G NP0	50 VDC	Axial	0.17 in	0.095 in	2.41 mm	4.32 mm	2 %	-55 C	125 °C	General Purpose	Low ESL	Through Hole	0.001 µF
KEMET C410C150K1G5TA7200	Straight	C0G NP0	100 V	Axial	0.17 in	0.095 in	2.41 mm	4.32 mm	10 %	-55 C	125 °C	General Purpose	Low ESL	Through Hole	15 pF
KEMET C410C392JAG5TA	Straight	C0G NP0	250 V	Axial	0.17 in	0.095 in	2.41 mm	4.32 mm	5 %	-55 C	125 °C	General Purpose	Low ESL	Through Hole	3900 pF
KEMET C410C519D3G5TA	Straight	C0G NP0	25 VDC	Axial	0.17 in	0.095 in	2.41 mm	4.32 mm	0.5 pF	-55 C	125 °C	General Purpose	Low ESL	Through Hole	5.1 pF
KEMET C410C821J1G5TA7200	Straight	C0G NP0	100 V	Axial	0.17 in	0.095 in	2.41 mm	4.32 mm	5 %	-55 C	125 °C	General Purpose	Low ESL	Through Hole	820 pF
