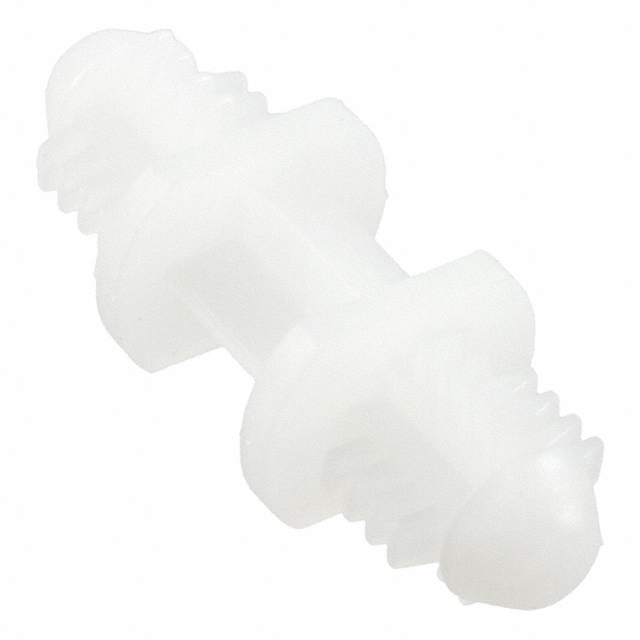

BHDF-10 Series
Manufacturer: Essentra Components
Beta
⌘K
BRD SPT BARBED FASTENR NYLN 10MM
| Part | Mounting Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Support Hole Diameter | Support Hole Diameter | Support Hole Diameter | Features | Mounting Panel Thickness | Mounting Panel Thickness | Mounting Panel Thickness | Between Board Height [z] | Between Board Height [z] | Material | Support Panel Thickness | Support Panel Thickness | Support Panel Thickness | Length - Overall [x] | Length - Overall [x] | Holding Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Essentra Components | Barbed Fastener | 0.3125 in | 0.312 in | 7.92 mm | 7.92 mm | 0.3125 in | 0.312 in | Blind Hole Mating | 1/4 | 0.25 in | 6.35 mm | 0.394 in | 10 mm | Nylon | 6.35 mm | 0.25 in | 0.25 in | 27.4 mm | 1.079 in | Barbed Fastener |
