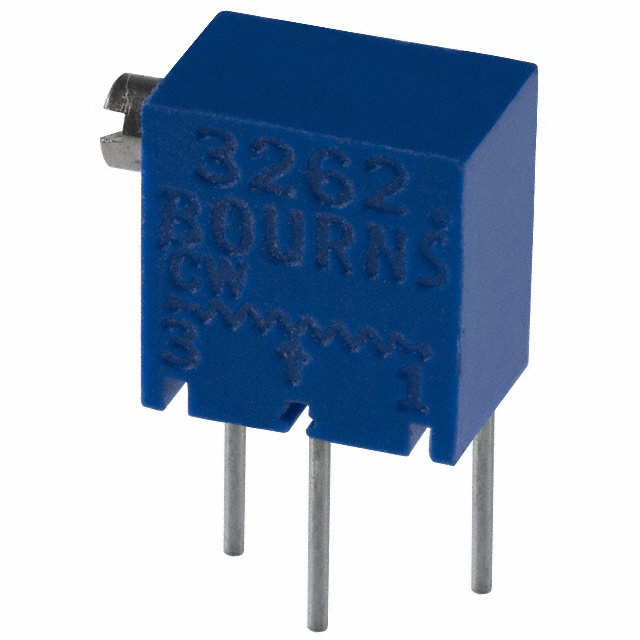

3262X Series

Catalog

TRIMMER 25KOHM 0.25W PC PIN SIDE

Part	Tolerance	Resistive Material	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Termination Style	Mounting Type	Number of Turns	Temperature Coefficient	Resistance	Adjustment Type	Power (Watts)	Power (Watts)
Bourns Inc. 3262X-1-253LF	10 %	Cermet	4.32 mm	0.17 in	0.25 in	6.35 mm	PC Pins	Through Hole	12	100 ppm/°C	25 kOhms	Side Adjustment	0.25 W	0.25 W
Bourns Inc. 3262X-1-500	10 %	Cermet	4.32 mm	0.17 in	0.25 in	6.35 mm	PC Pins	Through Hole	12	100 ppm/°C	50 Ohms	Side Adjustment	0.25 W	0.25 W
Bourns Inc. 3262X-1-200LF	10 %	Cermet	4.32 mm	0.17 in	0.25 in	6.35 mm	PC Pins	Through Hole	12	100 ppm/°C	20 Ohms	Side Adjustment	0.25 W	0.25 W
Bourns Inc. 3262X-1-501LF	10 %	Cermet	4.32 mm	0.17 in	0.25 in	6.35 mm	PC Pins	Through Hole	12	100 ppm/°C	0.5 kOhms	Side Adjustment	0.25 W	0.25 W
Bourns Inc. 3262X-1-101LF	10 %	Cermet	4.32 mm	0.17 in	0.25 in	6.35 mm	PC Pins	Through Hole	12	100 ppm/°C	100 Ohms	Side Adjustment	0.25 W	0.25 W
Bourns Inc. 3262X-1-254	10 %	Cermet	4.32 mm	0.17 in	0.25 in	6.35 mm	PC Pins	Through Hole	12	100 ppm/°C	250000 Ohms	Side Adjustment	0.25 W	0.25 W
Bourns Inc. 3262X-1-104	10 %	Cermet	4.32 mm	0.17 in	0.25 in	6.35 mm	PC Pins	Through Hole	12	100 ppm/°C	100 kOhms	Side Adjustment	0.25 W	0.25 W
Bourns Inc. 3262X-1-103LF	10 %	Cermet	4.32 mm	0.17 in	0.25 in	6.35 mm	PC Pins	Through Hole	12	100 ppm/°C	10000 Ohms	Side Adjustment	0.25 W	0.25 W
Bourns Inc. 3262X-1-254LF	10 %	Cermet	4.32 mm	0.17 in	0.25 in	6.35 mm	PC Pins	Through Hole	12	100 ppm/°C	250000 Ohms	Side Adjustment	0.25 W	0.25 W
Bourns Inc. 3262X-1-200	10 %	Cermet	4.32 mm	0.17 in	0.25 in	6.35 mm	PC Pins	Through Hole	12	100 ppm/°C	20 Ohms	Side Adjustment	0.25 W	0.25 W
