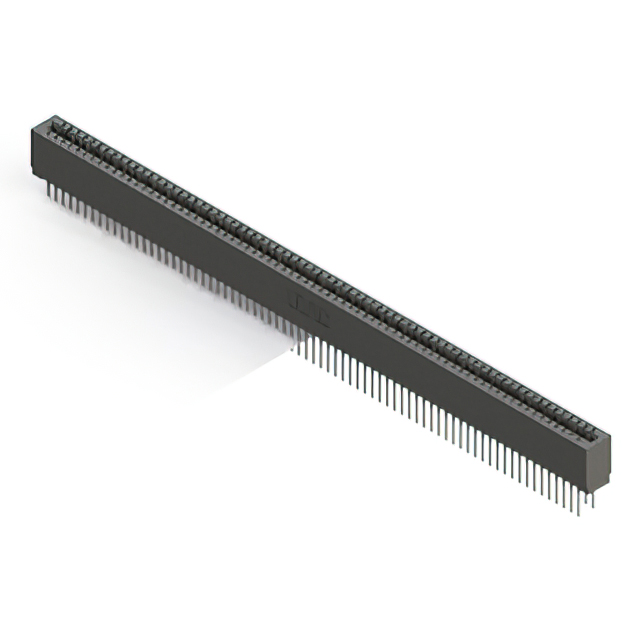

725-146 Series
Manufacturer: EDAC Inc.
Beta
⌘K
725 SERIES (.100" (2.54MM) CONTA
| Part | Termination Rows [custom] | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Number of Positions/Bay/Row | Contact Finish | Mounting Type | Read Out | Termination | Gender | Card Type | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Number of Rows [custom] | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | 30 Áin | 0.76 Ám | 146 | 73 | Gold | Through Hole | Dual | Press-Fit | Female | Non Specified - Dual Edge | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | 2 | Cantilever | -40 C | 105 ░C | Black |
 EDAC Inc. | 2 | Polyester Thermoplastic | 30 Áin | 0.76 Ám | 146 | 73 | Gold | Through Hole | Dual | Press-Fit | Female | Non Specified - Dual Edge | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | 2 | Cantilever | -40 C | 105 ░C | Black |
